Use and Care Guide

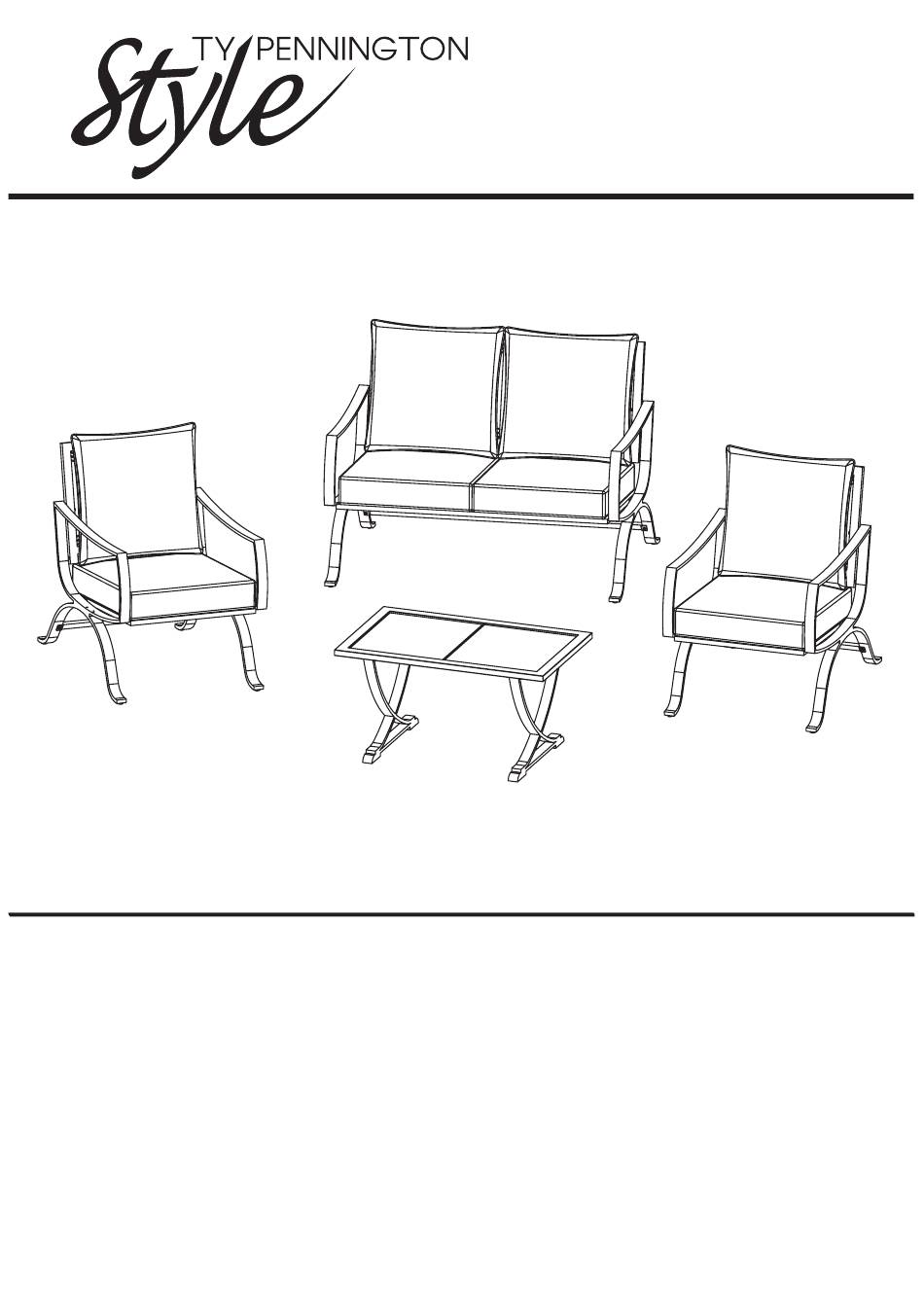

PALMETTO 4PCS SEATING SET
Product code: D71 M20306
UPC code: 471 333112 186 8
Vendor Item: SC-K-233NSFSET
Date of purchase: _____/ _____/ _____
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Style PALMETTO D71 M20306 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ty Pennington Style PALMETTO D71 M20306

  • Page 1 Use and Care Guide PALMETTO 4PCS SEATING SET Product code: D71 M20306 UPC code: 471 333112 186 8 Vendor Item: SC-K-233NSFSET Date of purchase: _____/ _____/ _____...
  • Page 2 Thank you for your purchase Thank you for your purchase We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team.
  • Page 3: Safety Information

    Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled properly and fully tightened as per the instructions. When placing in the desired location, ensure that all legs are resting on the same surface. You may adjust the legs levelers as required to ensure that the item stands in a rigid position.
  • Page 4: Pre-Assembly

    Care and Maintenance Though its powder-coated finish is rust-resistant, steel is prone to rust over time with exposure to the elements. In case of rust or scratches, lightly sand the affected area and apply touch-up paint. To maintain the finish periodically apply wax with a soft cloth. Wash frames and cushions with a mild solution of soap and water;...
  • Page 5 Pre-Assembly Safety Information Do not completely tighten bolts and nuts until indicated in assembly step. Assembly Instructions Package Contents ITEM DESCRIPTION QUANTITY Right Arm Left Arm Seat Cushion Back Cushion Chair Rear Connection Bar Chair Connection Bar Chair Seat Chair Back...
  • Page 6 Assembly Instructions Attaching the arm to the chair seat Oc x 4 Long Bolt Od x 4 Small Metal Washer Note the “Front” label on the seat. Don’t tighten completely. Repeat procedure for the other side. Attaching the chair connection bar to the arm Oa x 4 Short Bolt Od x 4...
  • Page 7 Assembly Instructions Attaching the chair back to the arm Oc x 4 Long Bolt Od x 4 Small Metal Washer Note the “Front” label on the back. Don’t tighten completely. Repeat procedure for the other side. Attaching the rear connection bar to the arm Oa x 2 Short Bolt Od x 2...
  • Page 8: Package Contents

    Assembly Instructions Putting cushions onto the chair frame Repeat procedure for the other chair. Package Contents ITEM DESCRIPTION QUANTITY Table Rim Metal Leg Tile...
  • Page 9 Assembly Instructions Attaching the leg to the table rim Oa x 8 Short Bolt Od x 8 Small Metal Washer Don’t tighten completely. Repeat procedure for the other side. Repeat procedure for the other leg. Putting tiles into the table rim...
  • Page 10 Assembly Instructions Using tile bumper to adjust the tabletop level if needed Package Contents ITEM DESCRIPTION QUANTITY Right Arm Left Arm Loveseat Seat Loveseat Back Loveseat Connection Bar Loveseat Rear Connection Bar Seat Cushion Back Cushion...
  • Page 11 Assembly Instructions Attaching the arm to the loveseat seat Oc x 4 Long Bolt Od x 4 Small Metal Washer Note the “Front” label on the seat. Don’t tighten completely. Repeat procedure for the other side. Attaching the loveseat connection bar to the arm Oa x 4 Short Bolt Od x 4...
  • Page 12 Assembly Instructions Attaching the loveseat back to the loveseat seat Ob x 1 Medium Bolt Of x 1 Large Metal Washer Don’t tighten completely. Attaching the loveseat back to the arm Oc x 4 Long Bolt Front Od x 4 Small Metal Washer Note the “Front”...
  • Page 13 Assembly Instructions Attaching the loveseat rear connection bar to the arm Oa x 2 Short Bolt Od x 2 Small Metal Washer Don’t tighten completely. Repeat procedure for the other side. Securely tighten all bolts. Putting cushions onto the loveseat frame Your seating is now ready for use.
