Use and Care Guide
KEY LARGO SECTIONAL SOFA SET
Product Code: D71 M20713
KSN: 08824327-4
UPC Code: 885227002743
Date of Purchase: _____/ _____/ _____

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Style KEY LARGO SECTIONAL SOFA SET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ty Pennington Style KEY LARGO SECTIONAL SOFA SET

Summary of Contents for Ty Pennington Style KEY LARGO SECTIONAL SOFA SET

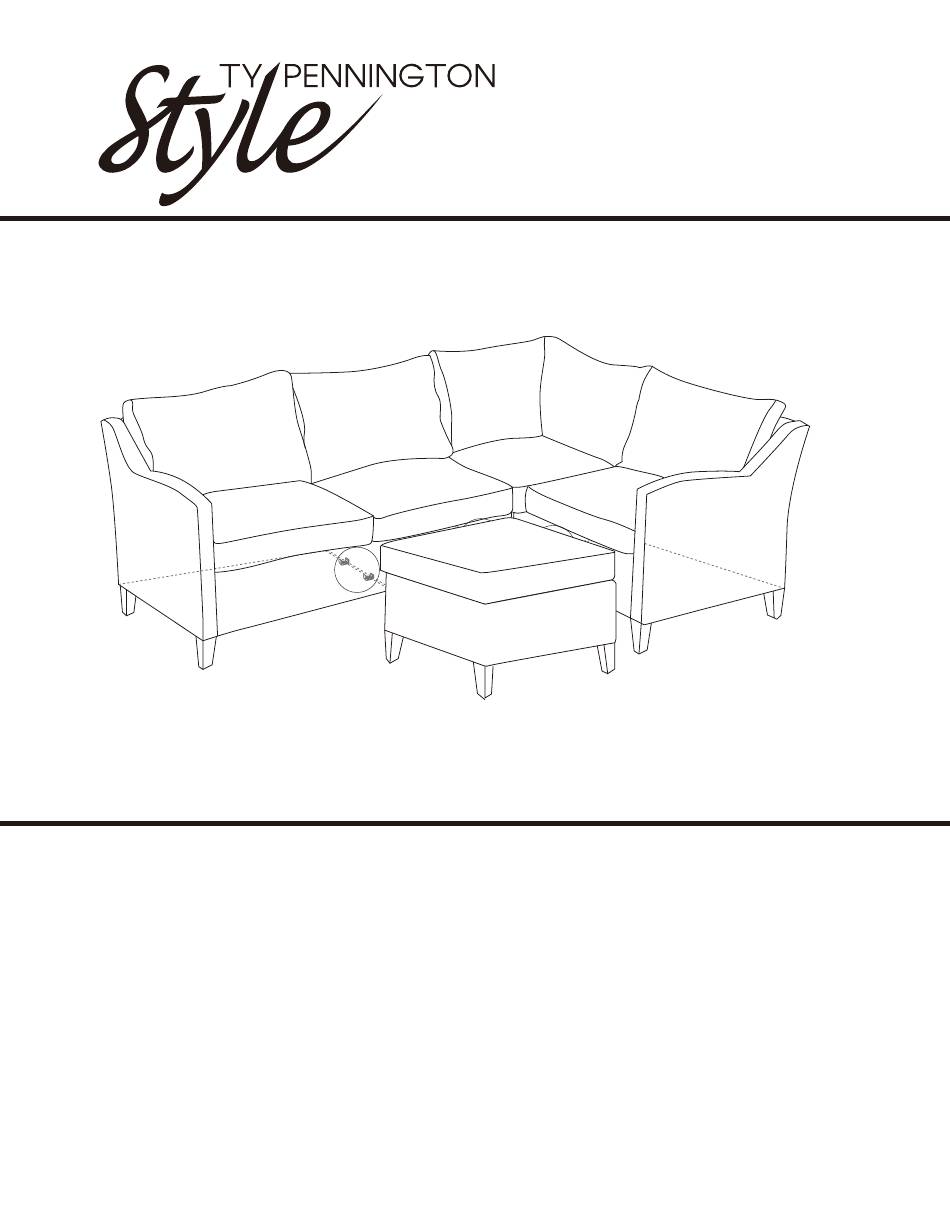

  • Page 1 Use and Care Guide KEY LARGO SECTIONAL SOFA SET Product Code: D71 M20713 KSN: 08824327-4 UPC Code: 885227002743 Date of Purchase: _____/ _____/ _____...

  • Page 2: Table Of Contents

    Thank you for your purchase Thank you for your purchase! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team.

  • Page 3: Safety Information

    Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled properly and fully tightened as per the instructions. When placing in the desired location, ensure that all legs are resting on the same surface. You may adjust the legs levelers as required to ensure that the item stands in a rigid position.

  • Page 4: Care And Maintenance

    Care and Maintenance When not in use, protecting furniture from the elements is highly recommended. Wipe frame with a lightly damp cloth and dry completely, do not use bleach or solvents. Wash cushions with mild solution of soap and water, rinse thoroughtly. Do not machine wash.

  • Page 5: Assembly Instructions

    Assembly Instructions Package Contents DESCRIPTION QTY. DESCRIPTION QTY. CODE PARTS CODE PARTS BACK 1 OF CHAIR BOLTS & WASHERS M6x35mm BACK 2 OF CHAIR CAPS FOR SEAT OF BOLTS CHAIR LEGS NUTS & WASHERS SEAT CUSHION CAPS FOR NUTS BACK CUSHIONS Safety Information 1.
  • Page 6 Assembly Instructions Step 1: Connect the back B to the seat frame C. Step 2: Connect the back A to the seat C. Step 3: Connect four legs D to the seat. Step 4: Turn the assembling chair upward as shown, fully tighten all the bolts then check and adjustment as needed.
  • Page 7 Assembly Instructions Package Contents DESCRIPTION QTY. DESCRIPTION QTY. CODE PARTS CODE PARTS LEFT ARM BOLTS & WASHERS M6x35mm BACK OF CHAIR CAPS FOR BOLTS SEAT OF CHAIR NUTS & WASHERS LEGS CAPS FOR NUTS SEAT CUSHION ALLEN WRENCH BACK ALLEN CUSHION WRENCH Safety Information...
  • Page 8 Assembly Instructions Step 2: Connect the left arm A to the seat. Step 1: Connect the back B to the seat C. Step 3: Connect four legs to the Seat. Step 4: Turn the assembling chair upward as shown, fully tighten all the bolts then check and adjustment as needed.
  • Page 9 Assembly Instructions Package Contents DESCRIPTION QTY. DESCRIPTION QTY. CODE PARTS CODE PARTS RIGHT ARM BOLTS & WASHERS M6x35mm BACK OF CHAIR CAPS FOR BOLTS SEAT OF CHAIR NUTS & WASHERS LEGS CAPS FOR NUTS SEAT CUSHION ALLEN BACK WRENCH CUSHION Safety Information 1.
  • Page 10 Assembly Instructions Step 1: Connect the back B to the seat C. Step 2: Connect the right arm A to the seat. Step 3: Connect the four legs D to the seat. Step 4: Turn the assembling chair upward as shown, fully tighten all the bolts then check and adjustment as needed.
  • Page 11 Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS BOLTS BACK OF & WASHERS CHAIR M6x35mm CAPS FOR BOLTS SEAT OF CHAIR NUTS & WASHERS LEGS CAPS FOR NUTS SEAT CUSHION ALLEN WRENCH BACK ALLEN CUSHION WRENCH Safety Information 1.
  • Page 12 Assembly Instructions Step 1: Connect the back A to the seat B. Cover the bolts with caps G. Step 3: Turn the assembling chair upward as shown, fully tighten all the bolts, check and make adjustment if needed. Step 2: Connect four legs to the seat, cover the bolts with cap I.
  • Page 13 Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS NUTS TABLE FRAME & WASHERS LEGS CAPS FOR NUTS SEAT CUSHION Safety Information 1. EVERY BOLT NEEDS TO BE USED WITH A WASHER. 2 .DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU HAVE ASSEMBLED THE CHAIR. ONCE ASSEMBLY IS COMPLETE, GO BACK AND TIGHTEN EACH BOLT.
  • Page 14 Assembly Instructions Step 1: Connect four legs B to the frame A, cover the bolts with caps E. Step 2: Turn the assembling ottoman upward as shown, fully tighten all the bolts and make adjustment as needed.
  • Page 15 Snap Fit Please use snap fit to connect each section. The snap fit connectors help you to lock the sectional pieces together.
  • Page 16 Please refer to part numbers when reordering For questions or comments about product: Email：acs@americancustomerservice.com or Call toll-free: 1-888-577-9825 SERVICE HOURS: Monday – Friday 8:00AM to 8:00PM EST Made in / Hech en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
