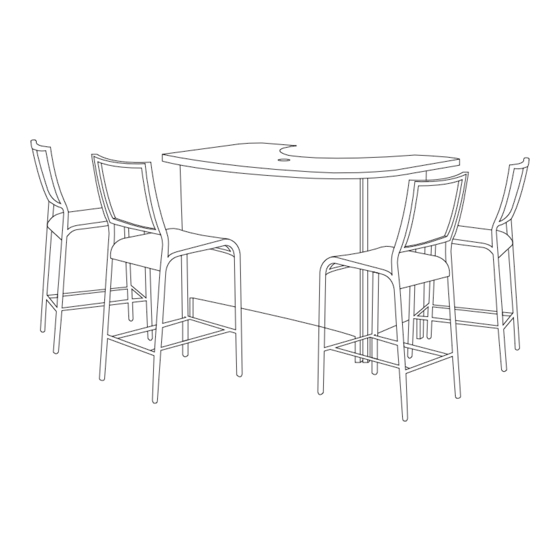

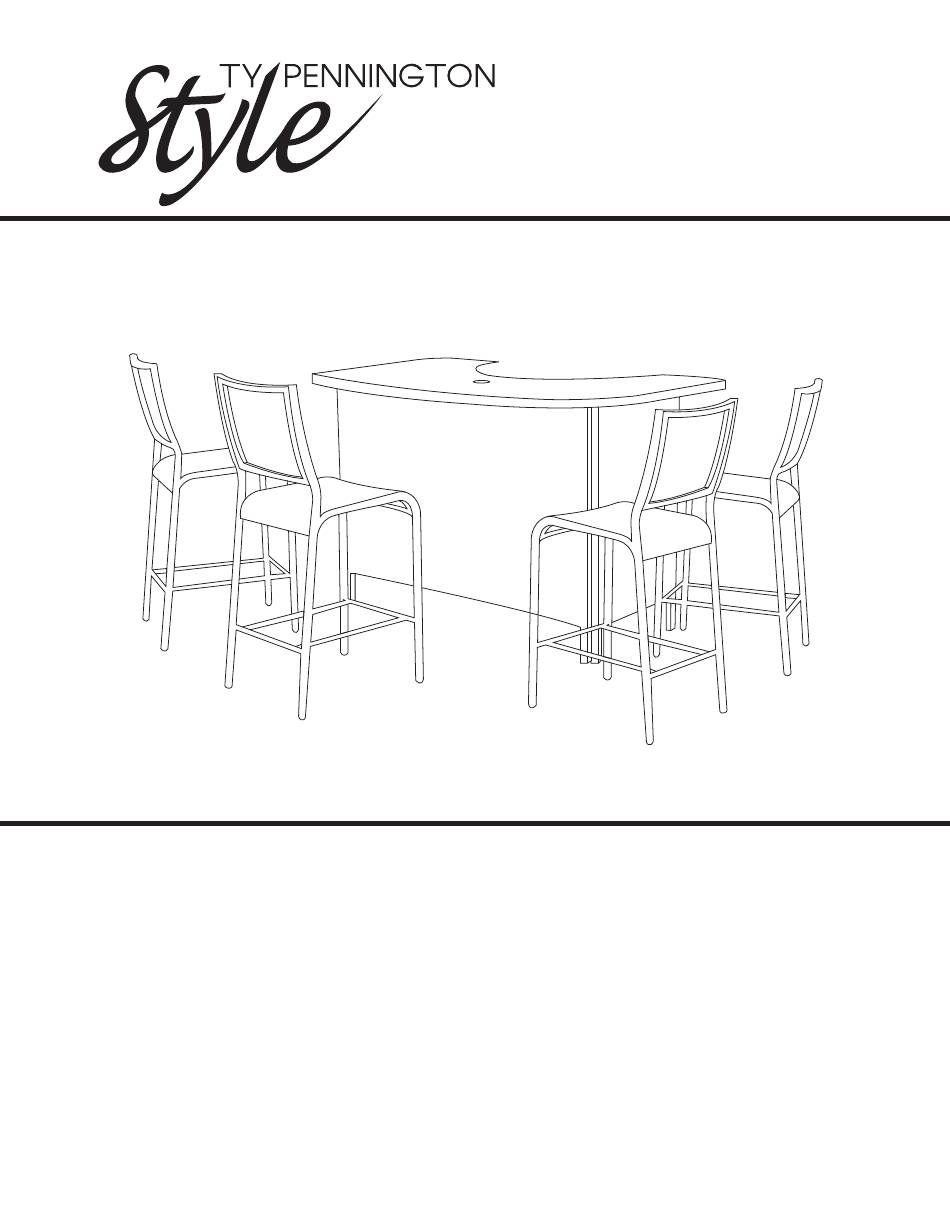

- Page 1 Use and Care Guide PARKSIDE 5PC BAR SET Product Code: D71 M20765 KSN: 08837235-4 UPC Code: 885227002729 Date of Purchase: _____/ _____/ _____...
-
Page 2: Table Of Contents
Thank you for your purchase Thank you for your purchase! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled properly and fully tightened as per the instructions. When placing in the desired location, ensure that all legs are resting on the same surface. You may adjust the legs levelers as required to ensure that the item stands in a rigid position. -
Page 4: Care And Maintenance
Care and Maintenance When not in use, protecting furniture from the elements is highly recommended. Wipe frame with a lightly damp cloth and dry completely, do not use bleach or solvents. Wash cushions with mild solution of soap and water, rinse thoroughtly. Do not machine wash. -
Page 5: Assembly Instructions
Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS BOLTS RIGHT FRAME & WASHERS M6X15MM BOLTS & WASHERS M6X35MM LEFT FRAME CAPS FOR BOLTS SEAT OF CHAIR ALLEN WRENCH SUPPORTER BACK OF CHAIR Safety Information 1. EVERY BOLT NEEDS TO BE USED WITH A WASHER. 2 .DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU HAVE ASSEMBLED THE CHAIR. - Page 6 Assembly Instructions Note: Do not tighten bolts all the way until you have assembled the chair. Once assembly is complete, go back and tighten each bolt. Step 1: Connect back panel E to frame A Step 2: Connect seat panel C to frame A...
- Page 7 Assembly Instructions Step 3: Connect footrest D to frame A Step 4: Connect frame B to back panel E...
- Page 8 Assembly Instructions Step 5: Connect frame B to set support D Step 6: Cover the bolts with caps H...
- Page 9 Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS BOLTS & WASHERS M6x15mm TABLE TOP BOLTS & WASHERS M6X20mm TABLE SIDE BOLTS PANEL & WASHERS M6x40mm CAPS FOR BOLTS TABLE SHELF ALLEN WRENCH Safety Information 1. EVERY BOLT NEEDS TO BE USED WITH A WASHER. 2 .DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU HAVE ASSEMBLED THE CHAIR.
- Page 10 Assembly Instructions Note: Do not tighten bolts all the way until you have assembled the table. Once assembly is complete, go back and tighten each bolt. Step 1/2/3: Connect folding wicker panel B to glass top A...
- Page 11 Assembly Instructions Step 4/5: Connect shelf C to folding wicker panel B Step 6: Cover the bolts with caps G.
- Page 12 Please refer to part numbers when reordering For questions or comments about product: Email：acs@americancustomerservice.com or Call toll-free: 1-888-577-9825 SERVICE HOURS: Monday – Friday 8:00AM to 8:00PM EST Made in / Hech en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
