Four Seasons Courtyard FS Caranna RXTV-2007-SET Assembly Instructions

Item# 258714
Model# RXTV-2007-SET
FS Caranna 5 PC Set - Chat Table
Assembly Instructions
Step 1: Remove protective wrapping and lay all parts on floor. Identify all parts packed in carton against
attached parts list.
Step 2: Lay Table Top Frame (A) upside down on floor, so bottom is facing up. Place a protective soft material
on floor before placing table top face down on floor.
Step 3: Assemble attach leg pair (B), and leg pair (C) together by sliding Leg B's center over Leg C
as shown in Diagram 1 first. Then attach top of each leg to under table, using Bolt (E), and Washer (F),
and Bolt cover (G) as shown in Diagram 2.
Step 4: Make sure all bolts are aligned properly and tightened securely. Then place bolt covers over bolts and
turn the table over onto it's legs carefully using a flat surface and put the glass on top as shown in Diagram 3.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND TIGHTENED
PROPERLY AND SECURELY.
Warning!: TABLE IS NOT MEANT FOR SITTING. DO NOT SIT OR LEAN FULL BODY AGAINST TABLE.

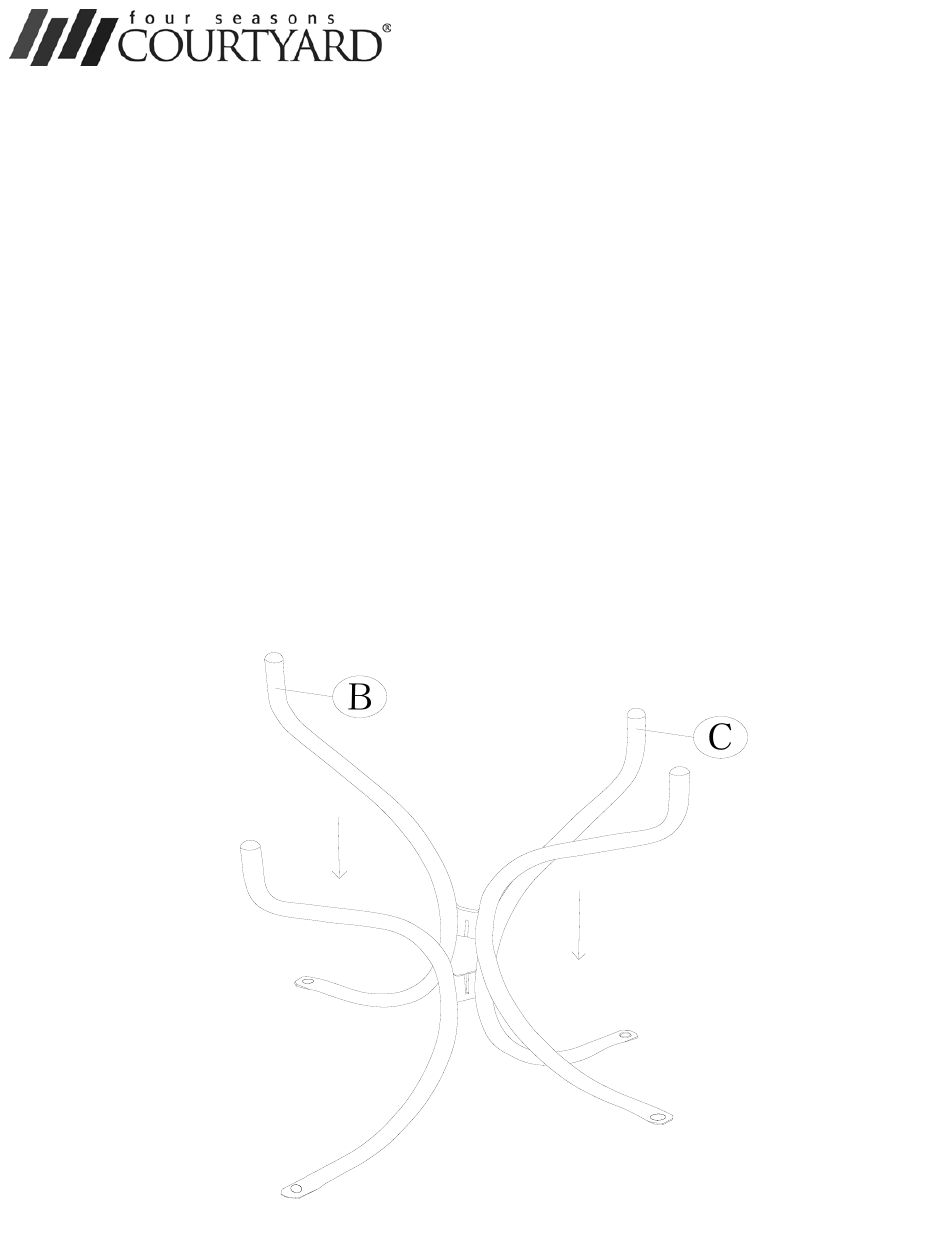

Diagram 1
