Introduction

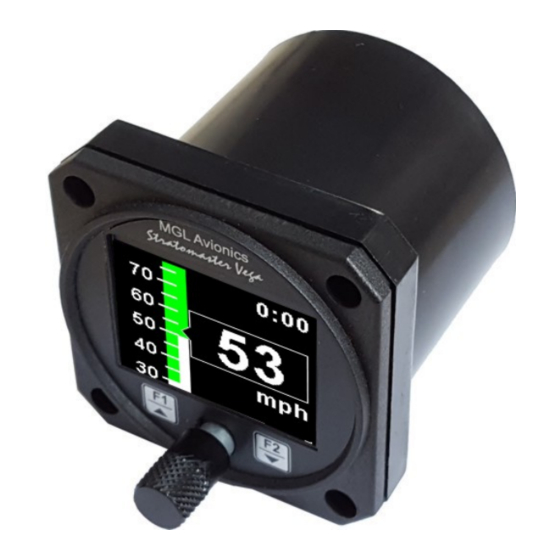

The ASI-4 is a 2 1/4" sunlight readable instrument that provides a wide range airspeed indication in both digital and
analog tape formats. Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as
well for use by high speed aircraft. In addition, the ASI-4 provides a flight timer since takeoff and records the maximum
airspeed reached.
Airspeed can be indicated in statute miles per hour (mph), kilometers per hour (km/h) or nautical miles per hour (kts). The
analog airspeed tape can be scaled according to the aircraft's flying speed range and ranges for Vs0, Vs1, Vfe, Vno and
Vne can be set. The ASI-4 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be
calibrated by the user to cater for errors caused by pitot tube placement.
The ASI-4 instrument measures airspeed from 16mph to 250mph and is well suited to slower aircraft due to very good
sensitivity and linearity at low air speeds.
1 Features
Large 1.8" high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display
Measures airspeed from 16mph to 250mph and is well suited to slow aircraft due to very good sensitivity
and linearity at low air speeds
Includes a flight timer since takeoff
Airspeed units can be set to miles per hour (mph), kilometer per hour (km/h) or nautical miles per hour
(kts)
Analog tape with programmable ranges for Vs0, Vs1, Vfe, Vno and Vne
Contains a programmable Vs and Vne airspeed alarm output
Records maximum airspeed reached in permanent memory
Standard 2 1/4" aircraft enclosure (can be front or rear mounted)
Rotary control plus 2 independent buttons for easy menu navigation and user input
Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
1 year limited warranty
Vega ASI-4
Airspeed Indicator (ASI)
Operating Manual – English 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratomaster Vega ASI-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for MGL Avionics Stratomaster Vega ASI-4

  • Page 1 Vega ASI-4 Airspeed Indicator (ASI) Operating Manual – English 1.00 Introduction The ASI-4 is a 2 1/4” sunlight readable instrument that provides a wide range airspeed indication in both digital and analog tape formats. Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as well for use by high speed aircraft.
  • Page 2: Main Display

    Vega ASI-4 Operating Manual Page 2 2 ASI-4 Layout 2 1/4” enclosure. Can be front or rear mounted Sunlight readable color graphic display: Backlight can be adjusted in the menu system F1 / Up Button: F2 / Down Button: Menu system: Softkey button Menu system: Softkey button Normal Display: Start / Stop the flight timer (Manual flight only)

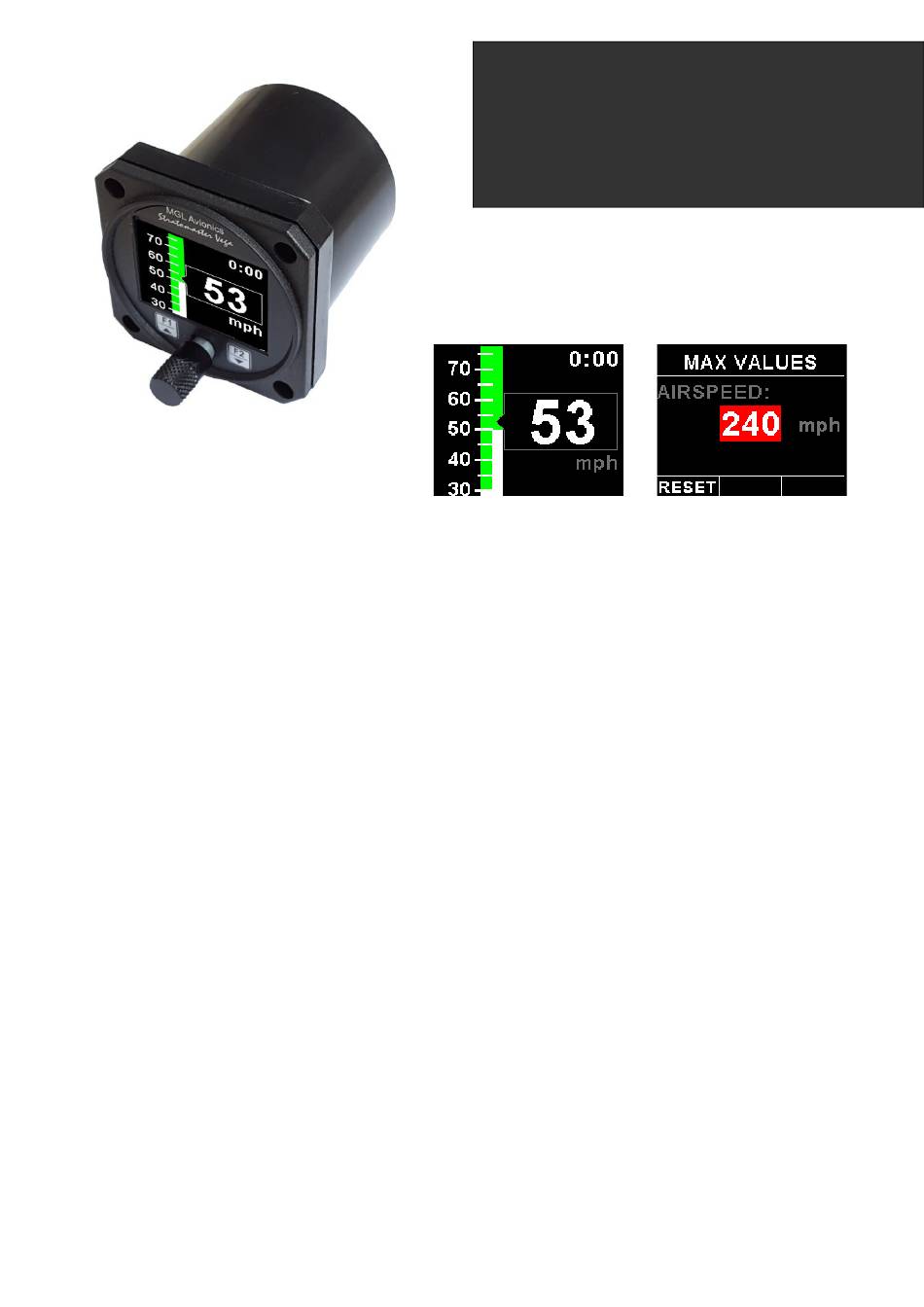

  • Page 3 Vega ASI-4 Operating Manual Page 3 3.1 Maximum Airspeed display This display can be accessed by rotating the rotary control during the normal display mode. Press the F1/Up button when the max values display is showing to reset the maximum values to the current airspeed. Note: The maximum airspeed is stored in non-volatile memory and is recalled on power-up.
  • Page 4: Exiting The Menu System

    Vega ASI-4 Operating Manual Page 4 4 Menu System Press the rotary control button during the normal display mode to enter the menu system. Use the rotary control to navigate through the menu system. 4.1 Exiting the menu system Press the F1/Up button to exit the menu system when the “EXIT” soft key is shown. All changes made during navigation of the menu system will be saved in non-volatile memory upon exiting.
  • Page 5 Vega ASI-4 Operating Manual Page 5 Zero ASI Sensor: This setup allows your instrument to measure the zero airspeed reading of the airspeed sensor and set a calibration value internally for this. This is equivalent to some mechanical airspeed indicators that have an adjustment to set the needle to zero when the aircraft is not moving.
  • Page 6: Timers Setup

    Vega ASI-4 Operating Manual Page 6 Cal: During the factory calibration a factor has been determined and entered here that will give you accurate airspeed, provided your pitot tube is not influenced by pressure effects caused by airflow around your airframe. The calibration is displayed in % of the reading, you can increase or decrease the reading if required to help cancel out under or over reading of the airspeed indicator on your aircraft.
  • Page 7: Security Setup

    Vega ASI-4 Operating Manual Page 7 4.4 MISC Setup (Miscellaneous Setup) Backlight: Select this menu option to adjust the backlight brightness. Security Setup: Select this menu option if you want to password protect the menu system. Information: This menu option displays information about the unit.
  • Page 8: Adc Values

    Vega ASI-4 Operating Manual Page 8 Default Settings: Select this menu option to reset all the settings to factory defaults. 4.5 ADC Values This menu displays the ADC value that have been read from the pressure sensor. 5 Loading factory default settings Press and hold the F1/Up button and rotary control during power up to load the pre- programmed factory default settings.
  • Page 9: Error Messages

    Vega ASI-4 Operating Manual Page 9 6 Error Messages Unit settings CRC error. Load default settings to restore to factory defaults. If the error message still persists then it could possibly be a non-volatile memory failure in which case the instrument will then have to be returned to the factory. Calibration constants CRC error.
  • Page 10: Firmware Upgrading

    Vega ASI-4 Operating Manual Page 10 8 Operating the alarms The alarm output can be used to switch an external alarm indicator. The external alarm switch is an open collector transistor switch to ground with a maximum rating of 0.5A DC. It is possible to wire the alarm contacts of several Stratomaster instruments in parallel should this be desired.
  • Page 11: Installation

    Vega ASI-4 Operating Manual Page 11 11 Installation Connect a pitot tube to the “pressure port” and if required connect the static port. Most small aircraft such as ultralights or microlights do not require a connection to a static port. In these cases, simply leave the static port open. Ensure however that the static port does not receive pressurized air due to the forward movement of the aircraft.
  • Page 12: Warranty

    Vega ASI-4 Operating Manual Page 12 11.2 Pressure Port Dimensions Inches Millimeters 0.248 0.278 6.30 7.06 0.420 0.440 10.67 11.18 0.182 0.194 4.62 4.93 0.310 0.330 7.87 8.38 11.3 ASI-4 Cable connections Main connector (D15 connector: Unit Female, Cable Male) D15 Pin Color Function...
