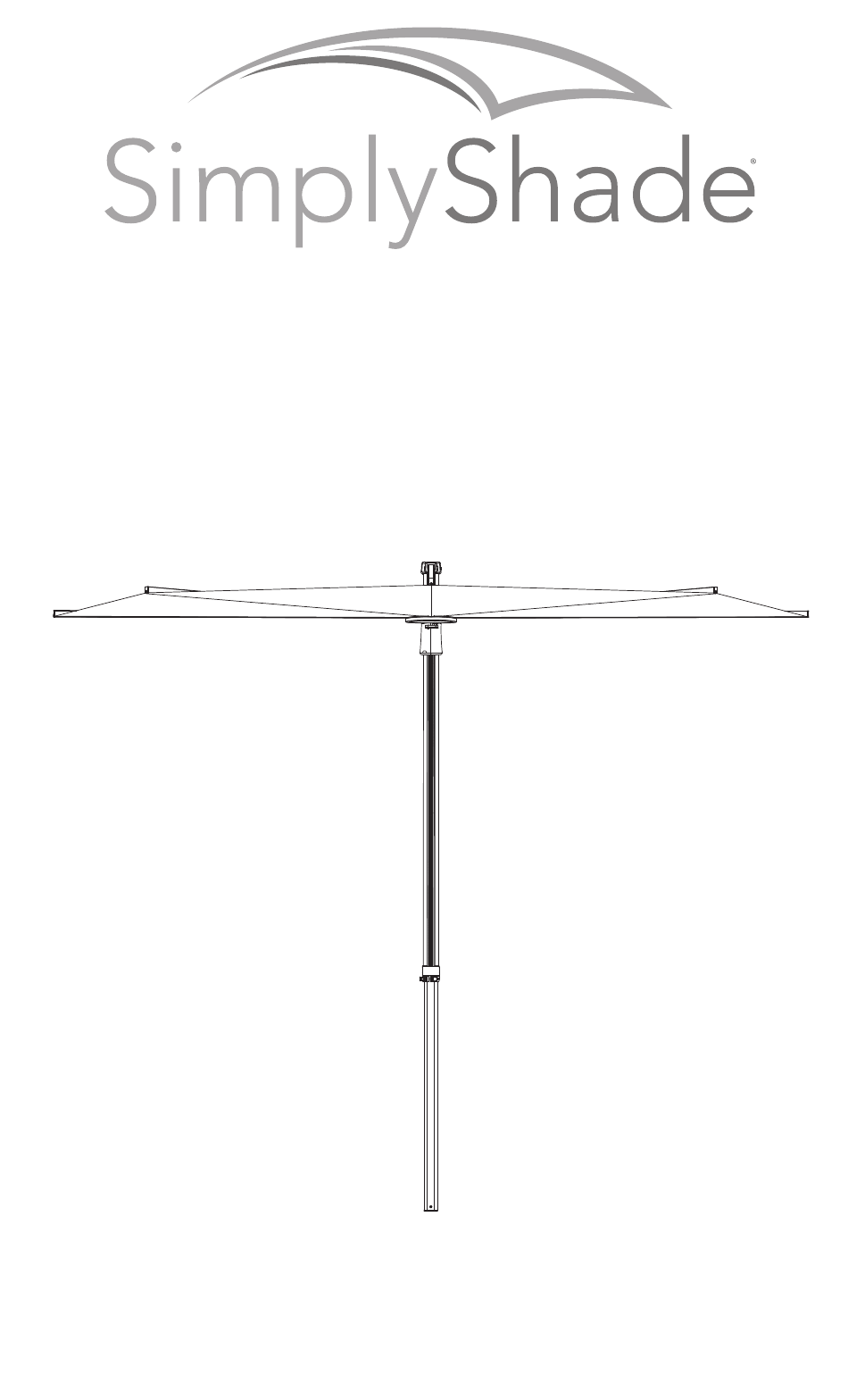

- Page 1 Amelia 9’ Half Umbrella / SSUA4599 I n s t r u c t i o n M a n u a l...
- Page 2 Thank you for purchasing SimplyShade’s Amelia Half Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your umbrella, read and follow this assembly and operation guide. We recommend a two-person team for assembly and disassembly.
- Page 3 IMPORTANT: It is imperative to use appropriate base weight for your size umbrella. The minimum base weight recommended for the Ameila is 50 lb. S T E P 1 Set Up Carefully remove umbrella parts from box and lay on a soft clean surface. Insert approximately 6 inches of the bottom pole into canopy structure (Fig.
- Page 4 S T E P 2 Open Canopy Gently pull canopy arms in downward motion to fan canopy open until locked into place (Fig. 5). (Fig. 5)
- Page 5 S T E P 3 Tilt Umbrella to Horizontal Position Push button on backside of grip handle (Fig. 6) and slide canopy structure upward until desired tilt level is reached (Fig. 7). (Fig. 6) (Fig. 7)
- Page 6 S T E P 5 Close Umbrella To close umbrella, push button on backside of grip handle (Fig. 8) and slide umbrella downward until umbrella reaches bottom of top pole (Fig. 9) . Turn release knob clockwise and guide canopy arms upward until canopy is fully closed (Fig. 10). Secure canopy with provided strap (Fig.
- Page 7 S A F E T Y P R E C A U T I O N S : • To reduce risk of personal injury in which a person is injured or harmed, and/or damage to personal property, read and follow the Assembly Guide prior to assembling and operating umbrella and base.
- Page 8 Any items and storms) are not covered by this that are returned for warranty or non warranty. warranty purposes must be issued a Return Authorization Number. Only www.simplyshade.com ©2021 SimplyShade - All Rights Reserved. 9/21...
