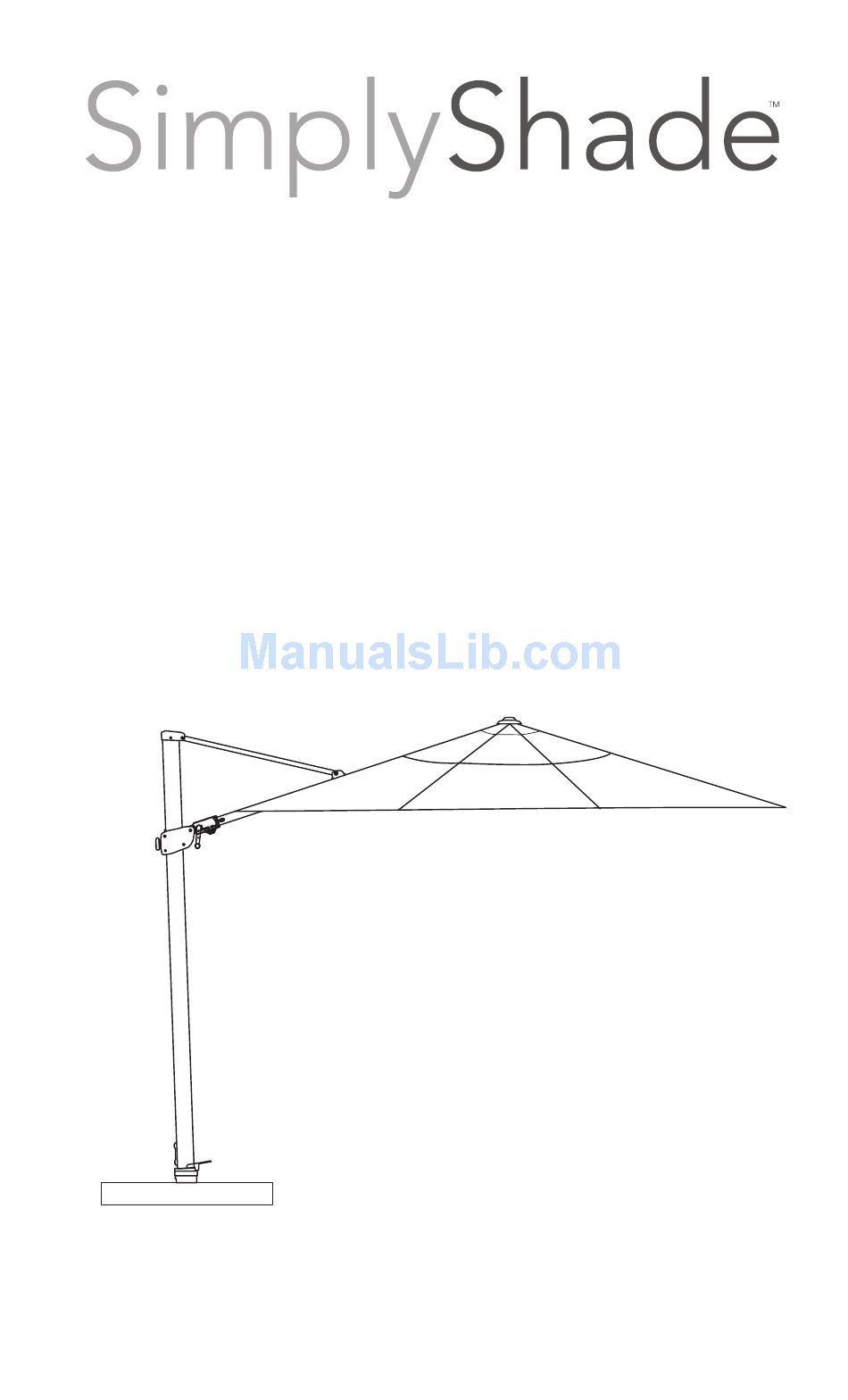

- Page 1 Fiji Cantilever 11.5’ Octagon / SSAG25R I n s t r u c t i o n M a n u a l...

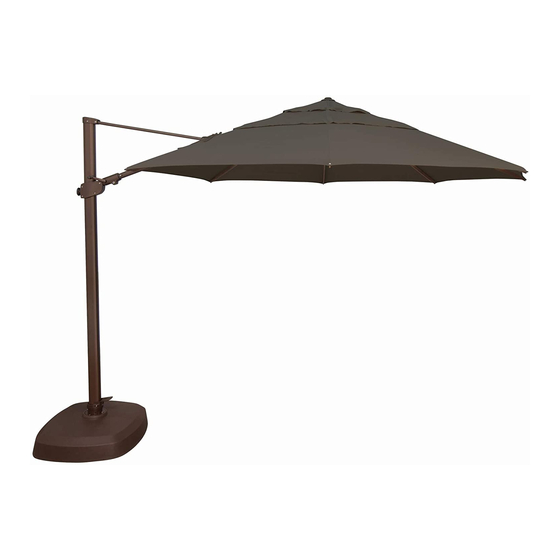

- Page 2 Thank you for purchasing SimplyShade’s Fiji Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your umbrella, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 NOTE: REFER TO SEPARATE MOUNT KIT OR BACARA BASE MANUAL FOR BASE ASSEMBLY PRIOR TO PROCEEDING. S T E P 1 Rotating hub Assembly If you have already installed your rotating hub onto your base, please skip to Step 2. Remove rotating hub from the main frame by removing the (2) main frame bolts and (2) washers (Fig.
- Page 4 S T E P 3 Opening Canopy In the closed position, turn adjustment knob counter clockwise and slide the adjustment knob upward. Turn adjustment knob clockwise to tighten and secure in place (Fig. 5). (Fig. 5) Insert crank handle into “Open/Close” socket in crank mechanism (Fig. 6). Turn crank handle clockwise until the canopy is fully open (Fig.
- Page 5 S T E P 4 Tilting Canopy Tilting Front to Back Turn adjustment knob counter clockwise and slide car up and downward until desired height and angle is reached (Fig. 8). Tighten the adjustment knob clockwise to lock its position. We do not recommend using tilt function during winds.
- Page 6 S T E P 4 360° Rotating hub Swivel Place your foot on the foot pedal of the rotating hub and step-on the pedal to release rotating lock (Fig. 10). Place hands on the main frame and rotate the umbrella frame in either direction, in 90°...
- Page 7 Features To ATTACh Umbrella Light: Loosen the light adapter built into the lower hub by turning counter-clockwise (Fig. 11). After loosening, pull down light adapter post (Fig. 12) to attach the umbrella light (Fig. 13 and 14) (sold separately). To REMOvE Umbrella Light and CLOSE adapter: Remove umbrella light, and gently push up the light adapter post back into umbrella runner and tighten turning clockwise (Fig.
- Page 8 SimplyShade will (at its option) repair or This warranty gives you specific legal replace the product without charge. Limited warranty against fabric fading, rights, and you may have other rights depending on fabric.
