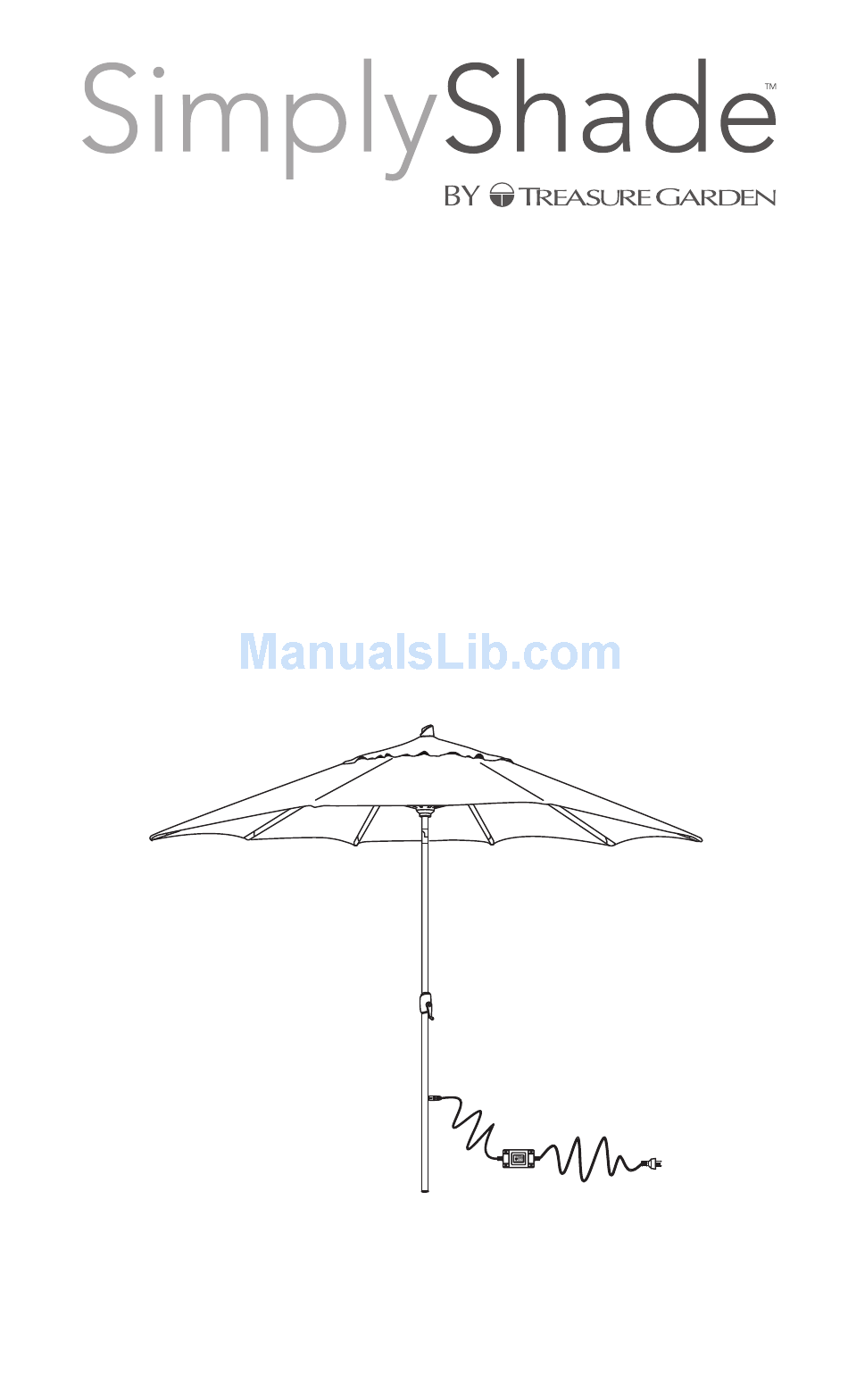

- Page 1 Lanai Pro Starlight Auto Tilt 11’ Octagon / SSUM81SL-11 9’ Octagon / SSUM81SL-09 I n s t r u c t i o n M a n u a l...
- Page 2 Thank you for your purchase of Simply Shade’s Lanai Pro Starlight Auto Tilt Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your umbrella, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 Connect bottom pole plug to canopy/mainframe plug. Twist plug clockwise together to secure connection. Insert bottom pole into canopy/mainframe pole. Line up button with hole and snap into place.
- Page 4 Turn umbrella in upright position. Insert bottom pole into free standing base or through table top. Insert power supply/transformer into umbrella pole. Connect other end of power supply/transformer into wall outlet. Note: The transformer output power is 12V. It is normal for transformer to get warm after long period of use.
- Page 5 S T E P 2 Operating Umbrella Crank handle clockwise to open umbrella to its fully open position. To turn umbrella rib lights on or off, press on/off switch located on crank housing. On/Off Switch To tilt, continue to turn the crank to desired position.
- Page 6 S T E P 3 Closing Umbrella Turn crank handle in counter clockwise direction to bring umbrella back to a horizontal position. Turn umbrella off by clicking switch to off position. Switch To close, turn To store umbrella away, unplug crank handle in counter-clockwise power...
- Page 7 WARRANTY: upon issuance of an RA # and inspection by our QC department will credit or replacement of umbrella be issued. It is The manufacturer warrants that this the customer’s responsibility to pay the umbrella, when subject to normal and freight on return products or proper use, will be free from replacement parts.
- Page 8 ©2014 Simply Shade - All Rights Reserved. 12/14...
