Viz-Art Automation CP-LIFT S Manual

Tv lift
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

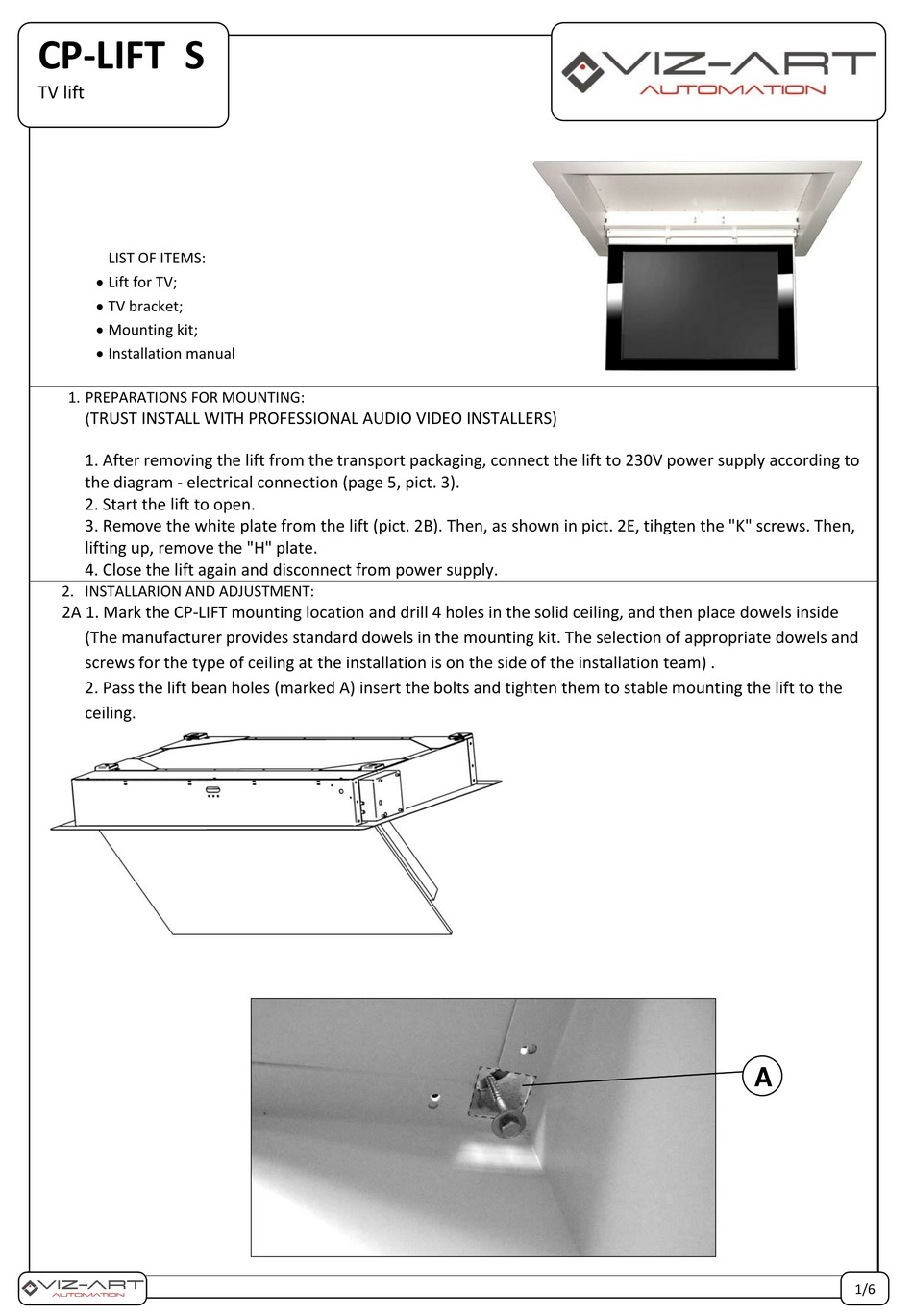

CP-LIFT S
TV lift
LIST OF ITEMS:
 Lift for TV;
 TV bracket;
 Mounting kit;
 Installation manual

1. PREPARATIONS FOR MOUNTING:

TRUST INSTALL WITH PROFESSIONAL AUDIO VIDEO INSTALLERS)
(
1. After removing the lift from the transport packaging, connect the lift to 230V power supply according to
the diagram - electrical connection (page 5, pict. 3).
2. Start the lift to open.
3. Remove the white plate from the lift (pict. 2B). Then, as shown in pict. 2E, tihgten the "K" screws. Then,
lifting up, remove the "H" plate.
4. Close the lift again and disconnect from power supply.
2. INSTALLARION AND ADJUSTMENT:
2A 1. Mark the CP-LIFT mounting location and drill 4 holes in the solid ceiling, and then place dowels inside
(The manufacturer provides standard dowels in the mounting kit. The selection of appropriate dowels and
screws for the type of ceiling at the installation is on the side of the installation team) .
2. Pass the lift bean holes (marked A) insert the bolts and tighten them to stable mounting the lift to the
ceiling.
A
1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-LIFT S and is the answer not in the manual?

Questions and answers

Related Manuals for Viz-Art Automation CP-LIFT S

Summary of Contents for Viz-Art Automation CP-LIFT S

  • Page 1 CP-LIFT S TV lift LIST OF ITEMS:  Lift for TV;  TV bracket;  Mounting kit;  Installation manual 1. PREPARATIONS FOR MOUNTING: TRUST INSTALL WITH PROFESSIONAL AUDIO VIDEO INSTALLERS) 1. After removing the lift from the transport packaging, connect the lift to 230V power supply according to the diagram - electrical connection (page 5, pict.
  • Page 2 2B. After mounting the lift to the ceiling, attach the white masking plate (marked B) by passing plastic fastening rivets in the holes (in the assembly kit). 2C. Screw centrally the 2 elements of the TV mount into the TV (marked C). Make sure that in both elements of the bracket are screws on the same level –...
  • Page 3 1) To mount the TV, connect the lift to the power supply (according to the electrical connection diagram) and tilt the movable lift arm so that it is vertically to the floor. 2) Place the TV set with the bracket to the movable lift arm (marked D) and center it so that the TV is in the center of the arm (marked D).
  • Page 4 2E 1) Slide the white closing plate (marked H) in such a way that the 4 catches (marked I) slide on the studs (marked J). 2) Tighten the screws (marked K) to lock the plate (marked H). 2F. SETTING THE OPENING AND CLOSING POSITIONS OF THE CP-LIFT – ONLY AFTER TV INSTALLATION: OPENING THE LIFT - SETTING: Attention! You can use the option of setting limit switches inside the lift (marked Open inside/Otwarty wew) or outside the lift (marked Open outside/Otwarty zew).
  • Page 5 1. Close the lift and adjust with the limit switch marked Closed inside/Zamknięty wew or marked Closed outside/Zamknięty zew. Closes the lift. 2. Turning towards "+" closes the lift, turning towards "-" you open it. Manufacturer: VIZ-ART Automation tel.+48 22/6138899 www.viz-art.eu...
  • Page 6 VIZ-ART AUTOMATION I hereby declare, with sole responsibility, that the products: Lifts: V-LIFT VESA; VMAX - LIFT 95; CP-LIFT S; CP-LIFT M; CP-LIFT L; ART-LIFT; SIDE LIFT 65; SIDE-LIFT Pro; SMARTBOARD LIFT; ADVANCED LCD Lift 17; ADVANCED LCD Lift 19; ADVANCED LCD Lift 24 to which this declaration relates, in accordance with: ...
