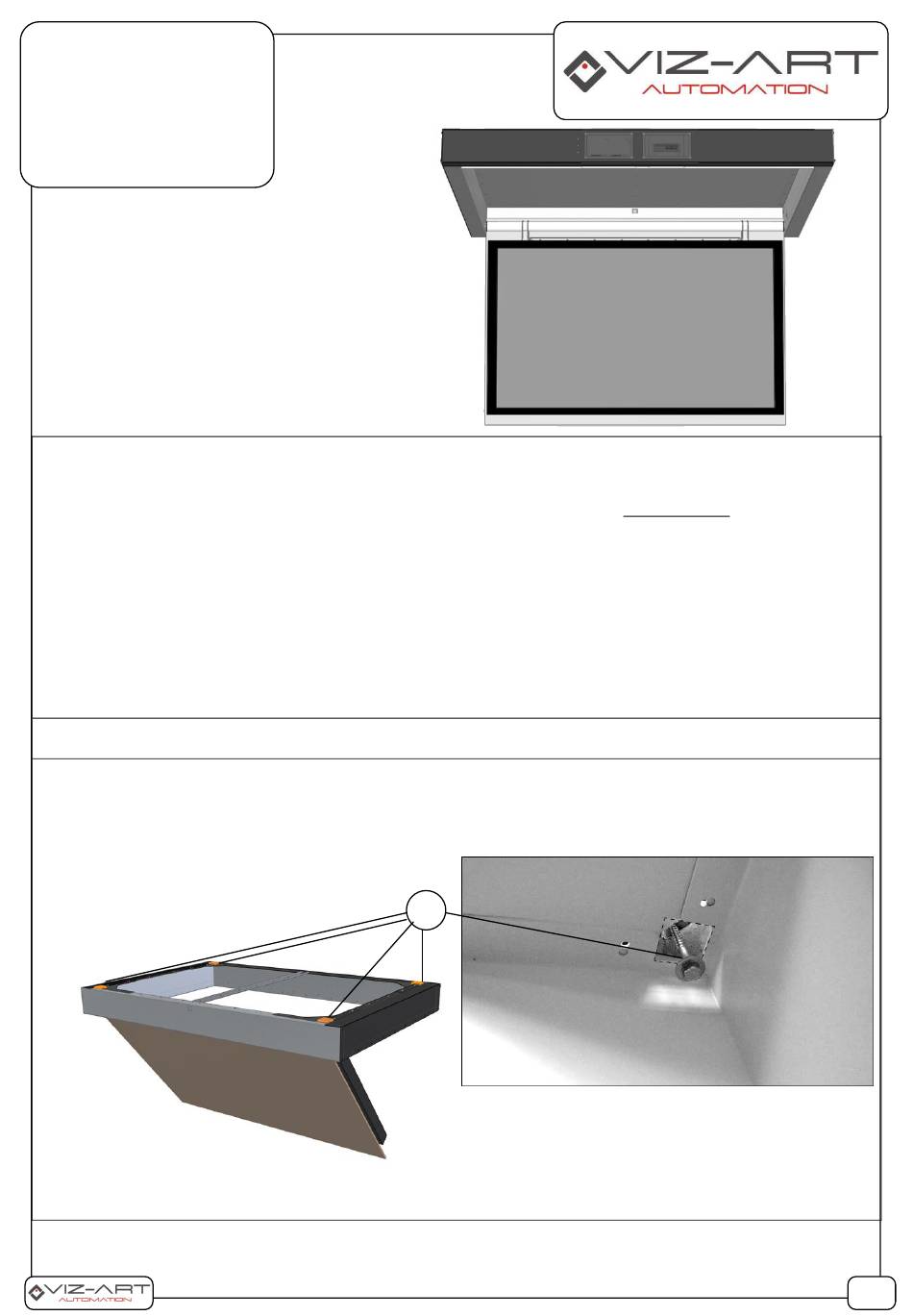

CP-LIFT
Ceiling lift models:
CP-LIFT - M
CP-LIFT - L
LIST OF ITEMS:
Lift for plasma TV;
LCD/TV bracket;
LCD/TV mounting kit;
Installation manual
1.
PREPARATIONS FOR MOUNTING:
a. The CP-lift can only be opened in the "Locking Plate" position!
b. Opening the CP-lift in a different position than "Locking Plate" down, may cause serious damage to the device !!!
c. Unscrew the lid of the box – 1
d. Unscrew the sides of the box – 2
e. Place the CP-lift with "Locking Plate" down so that the CP-lift can be opened - Minimum 140 cm from the Ground
f. Connect the lift to the power supply (230-240V 50Hz) Neutral - Blue / Power-Brown / Ground-Yellow: Green / and open
the lift to 70% of full opening, by connecting WHITE + RED control cables in POTENTIAL FREE CONTROL wire . Use the
diagram - electrical connection.
g. Take off the "Locking Plate" and remove the transport protection and the "White Masking Plate" masking plate.
h. After removing components needed to next steps of installation, close the CP-lift, by connecting WHITE + BLUE control
cables in POTENTIAL FREE CONTROL wire.
9. Unplug CP-lift wires from supply.
2. INSTALLATION and ADJUSTMENTS:
2A. a. Determine the location for mounting the CP-LIFT lift and drill 4 holes in the ceiling. Use a proper dowels and
screws for the installation surface is the responsibility of the installation team).
b. Insert bolts into dowels through the lift's slotted openings (A) and tighten them securely, Checking proper (axis
X,Y ) leveling when installing the lift to a ceiling.
A
1/6
Advertisement
Table of Contents
Related Manuals for Viz-Art Automation CP-LIFT Series
Summary of Contents for Viz-Art Automation CP-LIFT Series
- Page 1 CP-LIFT Ceiling lift models: CP-LIFT - M CP-LIFT - L LIST OF ITEMS: Lift for plasma TV; LCD/TV bracket; LCD/TV mounting kit; Installation manual PREPARATIONS FOR MOUNTING: a. The CP-lift can only be opened in the "Locking Plate" position! b.
- Page 2 2B. Once the lift is mounted on the ceiling, fix the white masking plate (B) by inserting through its openings the plastic fastening rivets (incl. in the mounting kit). 2C. Attach the 2 elements of the TV bracket (C) to the Display/LCD/ TV mounting points. Ensure that the screws are inserted at same level in both bracket elements.
- Page 3 2D. a. In order to mount the TV, connect the lift to a power supply and swing the movable arm of the lift, so that it is perpendicular to the floor. b. Install the TV together with the mounting on the movable lift arm (D) and place it in the center, so that the television is located in the central part of the arm (D).
- Page 4 2E. a. Open CP lift to 70% of Total opening to install Locking plate comfortably. b.Slide the white locking plate (G), so that the 4 mounts (H) slide over the pins (I). c. Tighten screws (J) to secure the plate (G). 2F.
- Page 5 Don't stop or touch when programming CP-lift, let it make full movement cycle. ATTENTION The emergency shutdown of the engine under load only works when driving up and beyond the angle of 22 degrees (from the bottom vertical position) ELECTRIC CONNECTION - CONTROL DIAGRAM: Manufacturer: VIZ-ART Automation tel.+48 22/6138899 www.viz-art.eu...
- Page 6 Rules of safe operation of VIZ-ART AUTOMATION equipment. SAFETY INFORMATION CAUTION To ensure safety of the personnel, make sure to follow the guidelines provided in this instruction manual. Keep the instruction manual for future reference. • Do not allow children to play with the device controller (switch or remote control).
