V-LIFT/ VMAX-LIFT 95
TV lifts
LIST OF COMPONENTS::
Lift
Mounting brackets for TV
Wall switch
Instruction manual

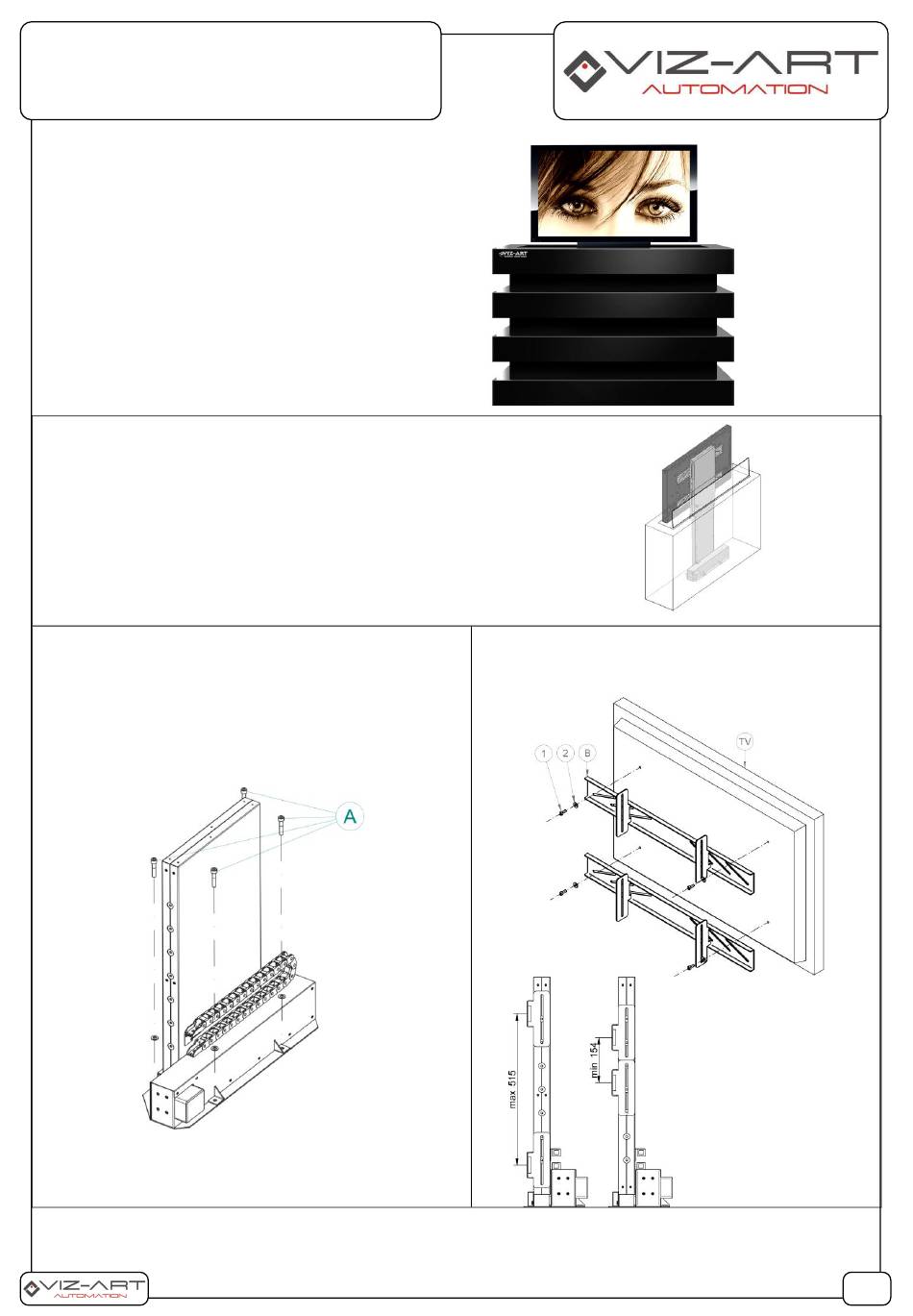

1. APPLICATION METHODS:
Installation of the V-LIFT / VMAX-LIFT together with TV inside of a piece of furniture.
Universal V-lifts is designed to a base cabinet. A sliding TV swings the top element
ff the furniture. While hiding plasma the lift causes swinging elements of the top.
This way of installation requires hinges in the top of the furniture.
A.
Choose the lift installation place. Mark a place for holes and
skrew on using screws A.
Attention! The installation is to be run only when the power is off
and the lift is down to its maximum.
A V-lift is to be installed to a stable piece of furniture using
fours screws.
Level up the lift in order to improve safety.
Move the lift to max height position, then install TV unit with
needed mounting accesories.
B.
Attach elements B to a plasma TV/LCD using screws
number 1 and 2.
Installation to a plasma TV
Range of spacing
brackets
1/6
Advertisement
Table of Contents
Related Manuals for Viz-Art Automation V-LIFT
Summary of Contents for Viz-Art Automation V-LIFT
- Page 1 Instruction manual 1. APPLICATION METHODS: Installation of the V-LIFT / VMAX-LIFT together with TV inside of a piece of furniture. Universal V-lifts is designed to a base cabinet. A sliding TV swings the top element ff the furniture. While hiding plasma the lift causes swinging elements of the top.
- Page 2 Installed lift (with LCD VESA) slided out and hidden. 2. INSTALLATION - OPTION 2: TV is to be installed inside a piece of furniture using V-LIFT / VMAX-LIFT. In such installation elements of the top are permanently attached above a plasma TV/LCD. Sliding a TV out of furniture raises the top of the furniture.
- Page 3 Attention! The installation is to be run only when the power is off and the lift is down to its maximum. Installing Plasma TV A V-LIFT / VMAX-LIFT is to be installed to a stable piece of furniture using four screws. Level up the lift in order to improve safety.
- Page 4 3. Connection scheme: Option - A plasma TV located Inside a ceiling housing or a false ceiling. A TV slides out on the V-LIFT / VMAX-LIFT. A. Attach elements C (optional) to a plasma/LCD TV using screws number 1 and 2.
- Page 5 2. Using attached connection scheme, connect V-LIFT / VMAX-LIFT lift, LED diode will flash 20 times. After that system is ready to be programmed 3. Install your LCD TV / monitor on a lift. Programming mode can be run when V-LIFT / VMAX-LIFT is loaded with your display (Symmetrically installed on a V-LIFT / VMAX-LIFT lift).
- Page 6 VIZ-ART AUTOMATION I hereby declare, with sole responsibility, that the products: Lifts: V-LIFT VESA; VMAX - LIFT 95; F-lift 46; F-lift 65; CP-LIFT S; CP-LIFT M; CP-LIFT L; SIDE LIFT 65; SMARTBOARD LIFT; ADVANCED LCD Lift 17; ADVANCED LCD Lift 19; ADVANCED LCD Lift 24 to which this declaration relates, in accordance with: ...
