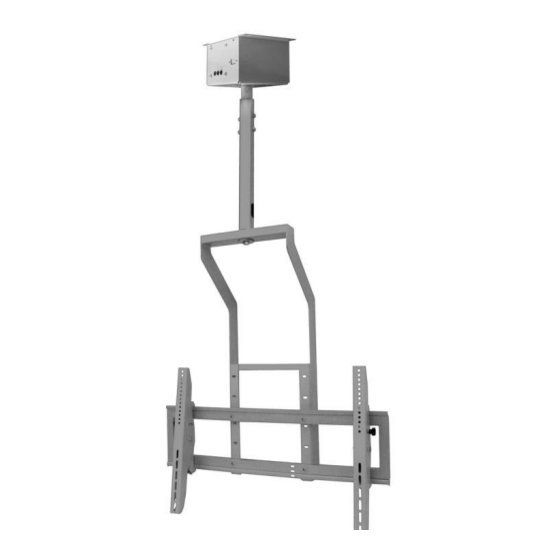

LEO Motion Plasma Mount
Motion ceiling mount for flat displays and TV
LIST OF ITEMS:

Mount

Mounting set

Installation manual
1. Installation & Adjusment:
A. Prepare an installation place on the ceiling. Element A
install on a ceiling. Then install element C. On expected
height install element D(according to picure below). Use
mounting screws from mounting set.
.
C. Mounting arms B attach do back side of display/TV, using
mounting screws and spacers from mounting set.
B. Using screws E adjust proper height of the mount.
D. On a element D hang display/TV with already mounted
arms B. Tighten the locking screws until you feel
resistance
WARNING! Correct mounting of elements is required for
safety usage (as on piture below)
