Item # 1004 308 529
Model # FTS61215E

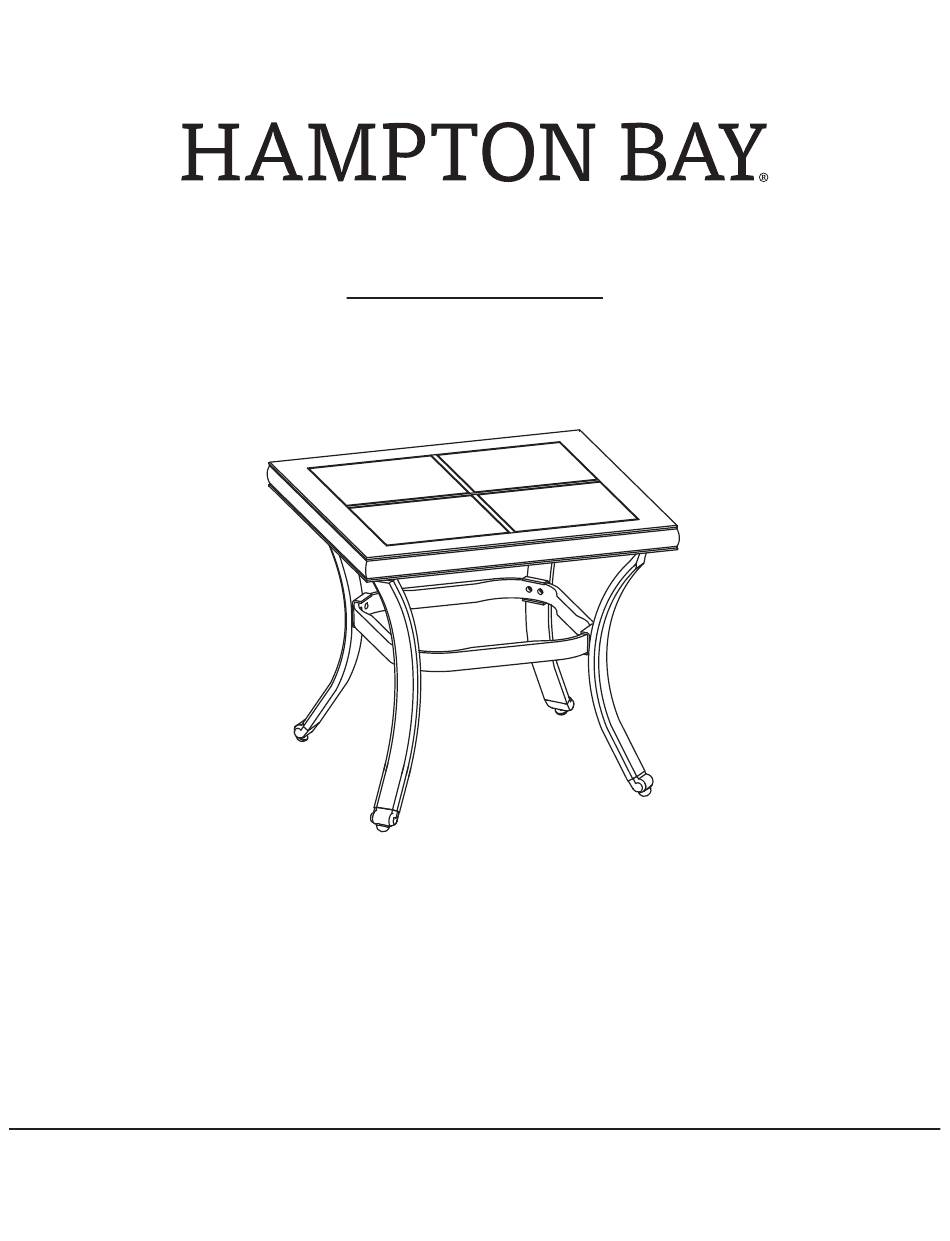

USE AND CARE GUIDE

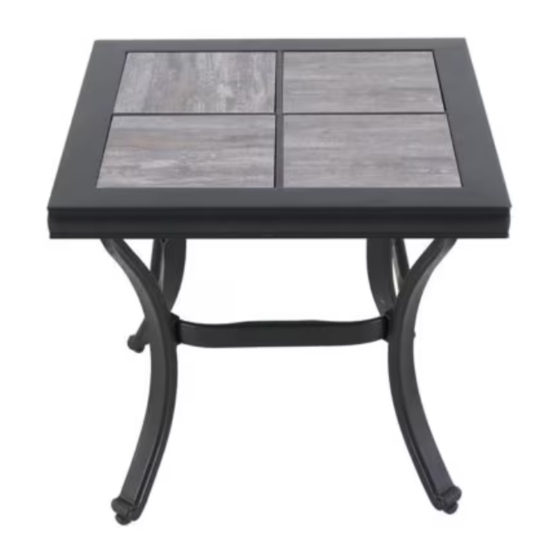

CRESTRIDGE STEEL SIDE TABLE WITH TILE TABLE TOP
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THAN K YOU
We appreciate the trust and conidence you have placed in Hampton Bay through the purchase of this pergola. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY CRESTRIDGE FTS61215E
Summary of Contents for HAMPTON BAY CRESTRIDGE FTS61215E
- Page 1 THAN K YOU We appreciate the trust and conidence you have placed in Hampton Bay through the purchase of this pergola. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Table of Contents Table of Contents........2 Pre-Assembly.
- Page 3 Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for a three year limited warranty. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.
- Page 4 Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 12+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Table Rim Table Leg Leg Connector Tile...
- Page 5 Assembly Attaching The Table Legs To The Table Rim Place the table rim (A) upside down on a soft surface. Attach the table legs (B) to the table rim (A) using M6x15 combination bolts (AA) and the hex wrench (BB). Do not tighten all bolts at this step.
- Page 6 Assembly (continued) Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (BB). Turn the table right side up and put the tiles (D) into the table rim (A). Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame with a damp cloth and dry thoroughly.
- Page 7 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
