Item # 1003 954 765
1003 954 835
Model # FTS61189
FTS61189G
USE AND CARE GUIDE

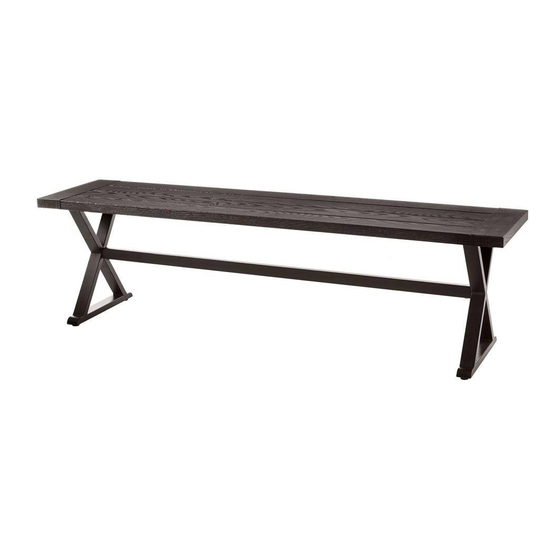

BEACON PARK BENCH
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this bench. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FTS61189
Summary of Contents for HAMPTON BAY FTS61189
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Important Safety Instructions ........2 Planning Assembly ..............3 Save These Instructions ............2 Hardware Included ..............3 Read All Instructions Before Use ..........2 Package Contents ..............4 Warranty ................
- Page 3 Warranty 3 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Leg connector...
- Page 5 Assembly CONNECTING THE LEG CONNECTOR TO THE LEGS Attach the leg connector (C) to the legs (B) using M6x15 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (BB). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 6 Assembly (continued) ATTACHING THE LEGS TO THE TOP Attach the legs (B) to the top (A) using M6x15 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (BB).
- Page 7 Assembly (continued) CHECKING THE BENCH Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (BB). Turn the bench right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the bench with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory bench ID # FTS61189...
