Item #1002 062 618
Model #FTS70660
USE AND CARE GUIDE

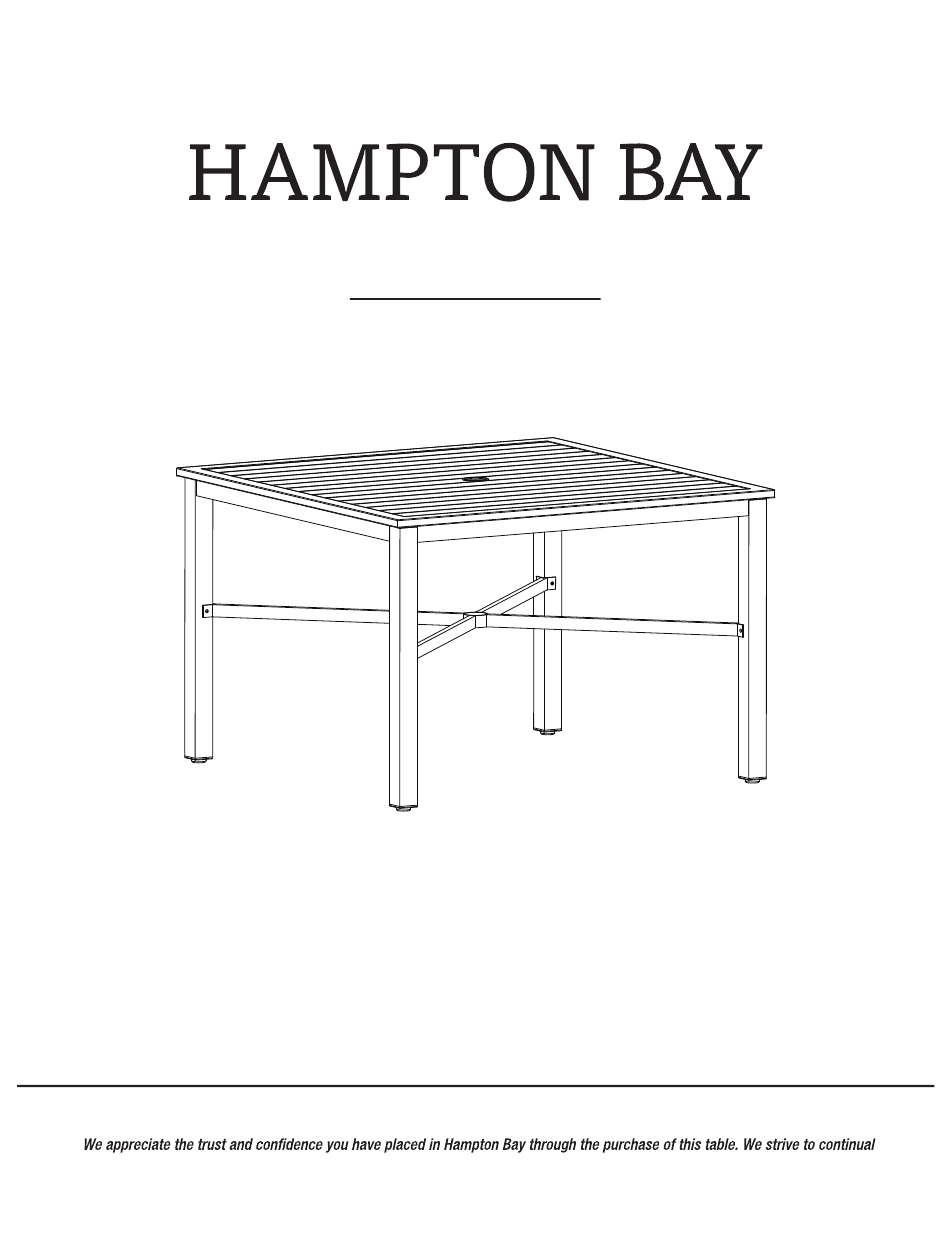

SLAT 42 IN. SQUARE TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
ly
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FTS70660
Summary of Contents for HAMPTON BAY FTS70660
- Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA THANK YOU create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Package Contents..............Read All Instructions Before Use ..........2 Assembly................
- Page 3 Warranty 2 YEAR FRAME WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for two years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use.
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Table leg Leg connector Umbrella ring cover...
- Page 5 Assembly Attaching the table legs to the table top Place the table top (A) upside down on a soft surface. Attach the table legs (B) to the table top (A) using M8x50 bolts (AA), M8 spring washers (BB) and M8 washers (CC). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
- Page 6 Assembly (continued) Attaching the leg connector to the table legs Attach the leg connector (C) to the table legs (B) using M6 15 combination bolts (DD).
- Page 7 Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Put the umbrella ring cover (D) into the table top (A). Ensure the table is tightly assembled and stable before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly.
- Page 8 1-855-HD-HAMPTON HOMEDEPOT.CA For certi cation use only Factory ID # FTS70660...
