Read these instructions in their entirety before installation and use: INTRODUCTION Reading this document will help ensure safe operation and maintenance of the Splash! 300-0000/EU/K - Splash! Hi-Lo 350-0000/EU/K - Splash! Extended Reach 370-0000/EU/K - Splash! Spa 375-0000/EU/K - Splash! ER Hi/Lo 385-0000/EU/K.
WARNINGS AND SAFETY SUMMARY DANGER – FAILURE TO FOLLOW THESE WARNINGS, INSTRUCTIONS AND THE OWNER’S MANUAL MAY RESULT IN SEROUS INJURY OR DEATH Model / Product No.______ Product Name ___________ S.R. Smith, LLC PO Box 400 1017 SW Berg Parkway Canby, Oregon 97013 USA Phone: 503-266-2231 Fax: 503-266-4334...
DECK PROFILE SHEET Aquatic patient hoists are application specific. A completed Deck Profile Sheet helps to ensure the hoist model will work for the intended application. S.R. Smith reviews all submitted Deck Profile Sheets as a service to our customers, free of charge. Before installing the pool hoist, the installer must review and confirm the information provided on the Deck Profile Sheet.

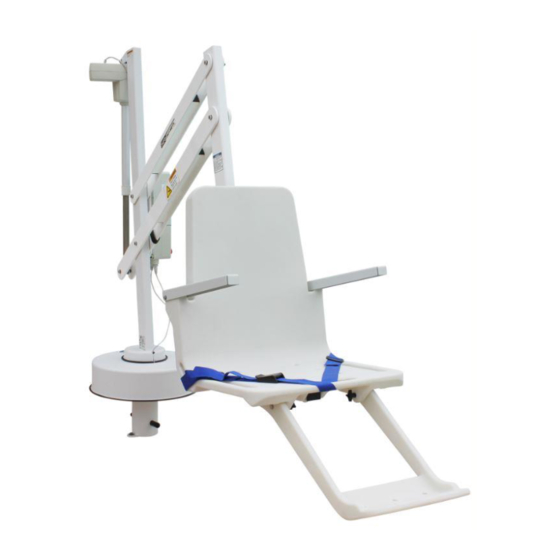

SPLASH! - PRODUCT COMPONENTS COMPONENT DESCRIPTION The Base Assembly is made up of several components described below: Base Assembly - Mounts to the pool deck or concrete boat dock. Base Insert Stem - Slides into the anchor sleeve that is installed on the pool deck or dock. Housing - ABS plastic cover shields base assembly components from weather.
Page 6
Battery Level LED Indicators – The Battery Level LED Indicators show battery charge levels. The LED’s will illuminate when either the touchpad control or the hand control is activated and will stay lit for 10 seconds. At greater than 50% the LED glows Green, at less than 50% the LED glows Amber, and less than 25% the LED glows red and indicates the battery requires charging.
Page 7
An example of a short log file: Activity Description dev_id_upper,0 Programing data dev_id_lower,1 Programing data fw_rev,90 Firmware rev. batt_volt_float,24929 Non-loaded battery voltage in millivolts batt_volt_load,21487 Loaded battery voltage in millivolts batt_capacity,99 Estimated battery capacity in % charge_starts,8 Number of times charging was attempted charge_completes,1 Number of times charging was finished successfully 0,power_on,1...
Page 8
The battery pack should be charged daily. Do not allow battery to fully discharge, as it will shorten battery life. The battery pack has an LED indicator near the plug-in-port. It will glow Red when first plugged into the transformer. If the LED remains Red this indicates the battery pack needs charging.
Mast - This vertical piece is bolted to the base assembly. 4-Button Hand Control Actuator - Attached to mast, this part powers the up and down movements of the hoist. Rotation Motor Assembly – Consists of mounting plate, 24-volt motor and small gear.
Page 10
2. Cut bands around components. 3. Remove the accessory box and seat assembly. DO NOT remove housing cover. It is attached to the base. 4. Lift the base unit and insert it into the deck anchor using the metal handle located on the top of the Housing.
7. Remove twist tie and uncoil cable on top of housing. Insert plug (with red stripe) into connector #1 on Control Box. Insert cable into wire chase on front of mast, then push to close/lock wire chase. Make sure plug is secure. 8.
The optimal mounting distance for the deck anchor is between 12”/30.5 cm to 18”/46 cm from the edge of the pool. Please call S.R.Smith with any questions concerning deck anchor placement or if the SPLASH will work in your installation.
Splash! Transferring Diagram TRANSFERRING Once the unit is positioned for use, use the following procedure to transfer to the seat and into the water. Only persons healthy enough for water activities should use the Splash!. Users should consult with their physician to determine if water activities are appropriate for the User: •...
IN CASE OF HAND CONTROL FAILURE Lifting failure - In the event of a lifting failure, there are control buttons built into the control box. Press the appropriate up or down/left or right button located on the front panel of the control box. If the Splash! will be used by a disabled person living on their own, a communication device should be installed in the area of use to call for assistance in the event of an emergency.
The following schedule shall be performed to insure proper operation with the Daily items performed before each use: Maintenance Performed Daily Weekly Monthly Check battery level before each use / Charge battery daily Wipe Control Box and battery connection with a clean dry rag Examine hoist for any damage, loose or missing hardware Test for normal operation Spray gear assembly with a heavy-duty rust inhibitor/lubricant...
Hoist does not Raise or Lower Does hoist rotate? Yes. 1. Check connection to Control Box. Be sure plug is pushed in all the way. 2. Check hand control connection to Control Box for damaged pins. 3. Check connection cable for damage. 4.
Questions/Comments - Contact us at 800.824.4387 or 503-266-2231 or customercare@srsmith.com. For information regarding Authorized Resellers worldwide visit www.srsmith.com PRODUCT REGISTRATION & WARRANTY INFORMATION Register your hoist at srsmith.com. Product registration ensures you receive timely information about product updates and in the event of a warranty issue, helps us process claims more efficiently. The S.R.
SPECIFICATIONS 1. Dimensions/Capacity Overall Height 66.25”/168cm Base Dimensions 19.25”/49cm Dia. Total Weight 160 lb/72.5 kg Overall Length (footprint) 90”/229cm (fully extended, with footrest) 68.75”/176cm (fully retracted, with footrest) 40”/102cm (in stored position, no footrest) Power 24V DC Battery Life 30 cycles (approx.) Lifting Capacity 400 lb/181 kg - 300 lb/136 kg (Splash! Extended Reach) Anchor Reaction Load...
PARTS LIST (SPLASH!) Item # Part # Description 100-5000A LA34 Actuator 1001499 4 Button Control Unit 1001495 Battery Pack 1001530 Battery Charger (not shown) 100-4000A Hand Control 120-1100 24v Motor 135-1000 Hub Assembly 120-1000 Motor Mount Assembly 800-5065 Small Gear 150-1100A Mast Assembly 150-1200A...
PARTS LIST (SPLASH EXTENDED REACH) Item # Part # Description 100-5000A LA34 Actuator 1001499 4 Button Control Unit 1001495 Battery Pack 1001530 Battery Charger (not shown) 100-4000A Hand Control 120-1100 24v M18otor 135-1000 Hub Assembly 120-1000 Motor Mount Assembly 800-5065 Small Gear 160-8000A Seat Assembly...
PARTS LIST (SPLASH EXTENDED REACH HI/LO or SPA) Item # Part # Description 100-5000A LA34 Actuator 1001499 4 Button Control Unit 1001495 Replacement Battery Pack (not shown) 1001530 Battery Charger (not shown) 100-4000A Hand Control 120-1100 24v Motor 135-1000 Hub Assembly 120-1000 Motor Mount Assembly 800-5065...
