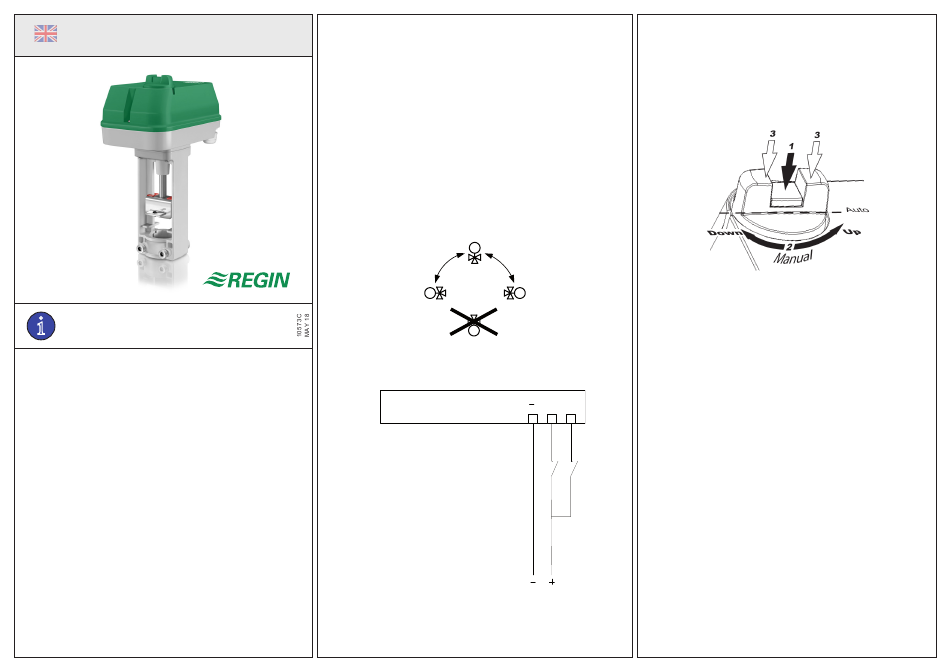

Regin RVAN25-24 Instructions

INSTRUCTION
EN
RVAN25-24
i
Read this instruction before installation
and wiring of the product
Valve actuator for 3-point control

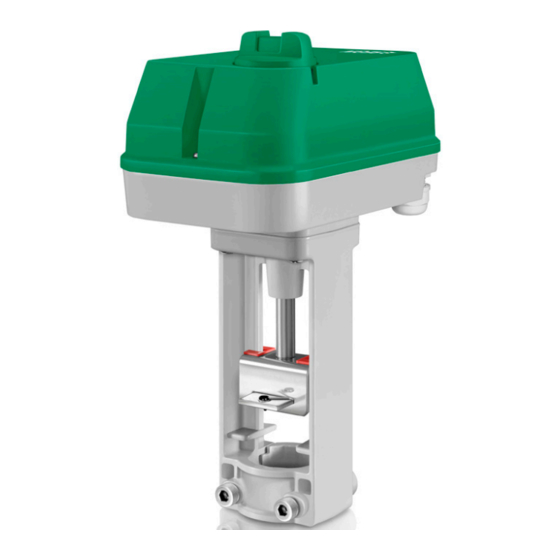

RVAN25-24 is a valve actuator designed for control of Regin valves.
For more info, see the product sheet of each valve. The actuator can
also be combined with other brands of valves using adapter kits. The
actuator can be operated manually.
Technical data
Supply voltage 24 V AC ±15%, 50/60 Hz
Control signal 3-point
Max. power consumption 10.9 W / 11.7 VA
Stroke 10...52 mm
Stroke time 3 s/mm
Force 2500 N
Ambient temperature 0...50°C
Storage temperature -40...80°C
Ambient humidity 10...90% RH
Dimensions (WxHxD) 200 x 300 x 135 mm
Protection class IP54
Installation
If the valve stem lock and valve throat adaptor are not already mounted
on the valve, mount them. Pull the valve stem out as far as possible.
Remove the screws (hex key 6 mm) and clamp from the actuator yoke.
Depress the spring-loaded tab on the drive rod coupling device and fit the
valve stem into the coupling.
Release the tab to connect the valve to the actuator. The position of the
yoke on the valve stem adaptor must be adjusted so that the clamp screw
holes line up with the groove in the valve throat adaptor. If the drive rod
needs to be moved in or out for this, depress the central button of the
control knob and turn it clockwise to extend the drive rod and counter-
clockwise to retract it (see Manual override). Mount the screws and the
clamp. Tighten the screws until the actuator is firmly attached.
Disassembly takes place in reverse order.
Mounting positions
90º
Wiring
G1 closed = Actuator spindle extending
G2 closed = Actuator spindle retracting
RVAN25-24
Calibration
Field calibration is not required. Once the valve reaches its end posi-
tion, a force builds up. When the force reaches the set level, a lever
within the actuator operates a switch that stops the motor.
Manual override
90º
To manually set the valve position, first depress the central part of
the button until it clicks and remains depressed (1 in the figure). This
disengages the gears and also cuts the power to the motor. Then
the valve position can be changed manually by turning the button (2
in the figure). Clockwise rotation will extend the drive rod and anti-
clockwise will retract it.
To reconnect power, set the button so the flats are in line with the
cutout in the edge of the cover, Auto position. Then press on the outer
parts of the button (3 in the figure). The central depressed part will
G2 G1
pop out re-engaging the gears and reconnecting the power.
3 2 1
CE
This product carries the CE-mark. More information is available at
www.regincontrols.com.
