ALLEN&HEATH
SERVICE MANUAL

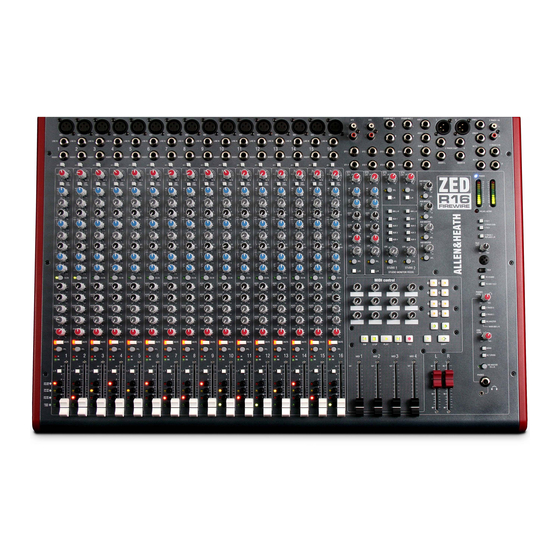

ZED R-16 FIREWIRE
Title
Copyright © 2008 Allen & Heath Limited. All rights reserved
Allen & Heath Limited
Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
http://www.allen-heath.com
ALLEN&HEATH
ZED R-16 service manual
AP7339
Page - 1 - of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZED R-16 FIREWIRE and is the answer not in the manual?

Questions and answers

Related Manuals for ALLEN & HEATH ZED R-16 FIREWIRE

Summary of Contents for ALLEN & HEATH ZED R-16 FIREWIRE

  • Page 1 ALLEN&HEATH SERVICE MANUAL ZED R-16 FIREWIRE Title Copyright © 2008 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com ALLEN&HEATH ZED R-16 service manual AP7339 Page - 1 - of 24...
  • Page 2 Limited One Year Warranty This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating.

  • Page 3: Parts Identification

    CONTENTS DEVELOPMENT CHANGES SERVICING PRECAUTIONS AND GENERAL NOTES PARTS IDENTIFICATION • How to order parts • Exterior parts • Interior parts SOFTWARE & FIRMWARE SPECIFICATION ALLEN&HEATH ZED R-16 service manual AP7339 Page - 3 - of 24...
  • Page 4 DEVELOPMENT CHANGES NOTE: These changes have been implemented at the factory as part of our ongoing development policy. They are not critical to the basic function of the unit. It is for the owner / service engineer to decide to update a unit with development changes. ALLEN&HEATH ZED R-16 service manual AP7339...
  • Page 5 Servicing Precautions – General Notes Service personnel: Service work should be carried out by technically qualified service personnel only. Mains power is dangerous and can kill. Do not attempt to work on a linear or switched mode power supply if you are not suitably qualified to do so. Do not attempt to repair surface mount circuit assemblies unless you are suitably qualified and have the necessary facilities to do so.
  • Page 6 Testing the unit: Before operating the equipment, read and adhere to the Important Safety Instructions printed in the user guide. Test that the service work has been successfully carried out. Shipping the unit: Use adequate packing such as the original packaging or purpose designed flight case if you need to ship the unit.

  • Page 7: Exterior Parts

    Side moulding EXTERIOR PARTS: Left AA6741-L Right AA6741-R Mono channel Push button Gain AI3838 square grey AJ7210 HF AI8004 Knob blue AJ6949 Q A6718 G AI8004 Knob blue AJ2075A F AI8009 Knob black AJ6106A LF AI8004 Push button round grey AJ3955 AUX AI8003 Knob grey...

  • Page 8: Stereo Channels

    Stereo channels ST LEV 1, 2, 3, 4 AI8007 HF, LF AI8006 AI8003 AI8008 AI8007 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 8 - of 24...

  • Page 9: Aux Masters

    AUX masters AUX masters 1, 2, 3, 4 AI8003 MIDI & LR master faders Fader knob bergundy MIDIFader 60mm AJ86950 AI4999 LR master Fader Fader knob black 60mm AJ6278 AI3497 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 9 - of 24...

  • Page 10: Monitor Section

    Monitor section Meter LED bar AE5474 TALK LEV AI8111 Talkback mic AM0914 Push button rect black AJ7182 Phones LEV AI8007 CRM LEVEL AI8007 Large headphone jack AL6893 Small 3.5mm headphone jack AL5323 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 10 - of 24...
  • Page 11 MIDI & key mat MIDI AI6718 Rubber Key mat AA67081 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 11 - of 24...
  • Page 12 Connectors Mic XLR AL2412 RCA phono RCA phono O/P XLR AL2413 AL6830 AL6830 All Jacks are AL6893 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 12 - of 24...

  • Page 13: Interior Parts

    INTERIOR PARTS: AL7249 AL7244 AL7245 AL7248 AL7239 AL7246 AL7238 AL7247 AL7240 AL7241 AL7243 AL7242 AL7238 main AL7239 stereo / studio to fader master Harnesses AL7240 keypad to fader master AL7241 fader 1 to fader master AL7242 fader 2 to fader master AL7243 fader to fader distribution AL7244 firewire 1 to fader distribution AL7245 firewire 2 to fader distribution...
  • Page 14 Firewire audio 003-816 Mono i/p 003-817 Stereo i/p 003-818 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 14 - of 24...
  • Page 15 Studio PCB 003-819 Aux master 003-820 Master LR 003-821 Master out 003-822 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 15 - of 24...
  • Page 16 Meter R 003-823 Fader 1 003-824 Fader 2 003-827 Fader master 003-825 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 16 - of 24...
  • Page 17 Fader slave 003-851 Keypad 003-826 Master distribution 003-828 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 17 - of 24...
  • Page 18 PSU 003-849 ALLEN&HEATH ZED R-16 service manual AP7339 Page - 18 - of 24...
  • Page 19 SOFTWARE: ZED R-16 comes with Sonar cakewalk. Here is the overview and instructions: cakewalk SONAR LE DIGITAL AUDIO WORKSTATION SONAR LE Overview. SONAR LE is a software application from Cakewalk and is included free of charge with your new ZED mixing console. SONAR LE is a powerful first step into the world of sequencing and hard disk recording on the Windows platform.
  • Page 20 System Requirements. System Minimum Recommended Requirements Operating System Windows XP Windows XP/Vista/Vista x64 Processor Speed Intel® Pentium® 4 1.3 GHz, Intel® Pentium® 4 2.8 GHz or AMD™ Athlon XP 1500+ or [EM64T], or AMD™ Athlon 64 higher 2800+or higher 256 MB 1 GB or higher Graphics (resolution, 1024 x 768, 16-bit color...
  • Page 21 Next, fire up SONAR LE. Click Options/Audio and click on the Drivers tab. The Input drivers are the audio sources to the computer, here we have enabled the USB Audio Device which is the ZED mixing console USB device, and disabled the audio from the soundcard in the pc.
  • Page 22 To record the audio on tracks 1 & 2, click the R buttons so they light up red, then the record button (circle) on the transport controls on the top icon toolbar. (Or select larger transport controls from Views). The audio wave profile will show in the track panes. Click stop (Square) when finished.

  • Page 23: Specification

    SPECIFICATION: Operating Levels Inputs Mono channel (XLR) Input -6 to –60dBu for nominal (+nndBu in max) Mono channel Line Input (Jack socket) +10 to –26dBu (+30dBu maximum) Insert point (TRS Jack socket) 0dBu nominal +21dBu maximum Stereo Input (Jack sockets) 0dBu nominal (control = Off to +10dB) Stereo input (phono sockets) 0dBu nominal (control = Off to +10dB)
  • Page 24 THD+n Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out 0.004% Mic in to Mix L/R Out, 30dB gain 1kHz 0.014% Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.005% Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.003% USB Audio CODEC (Coder/Decoder) USB Audio In/Out...
