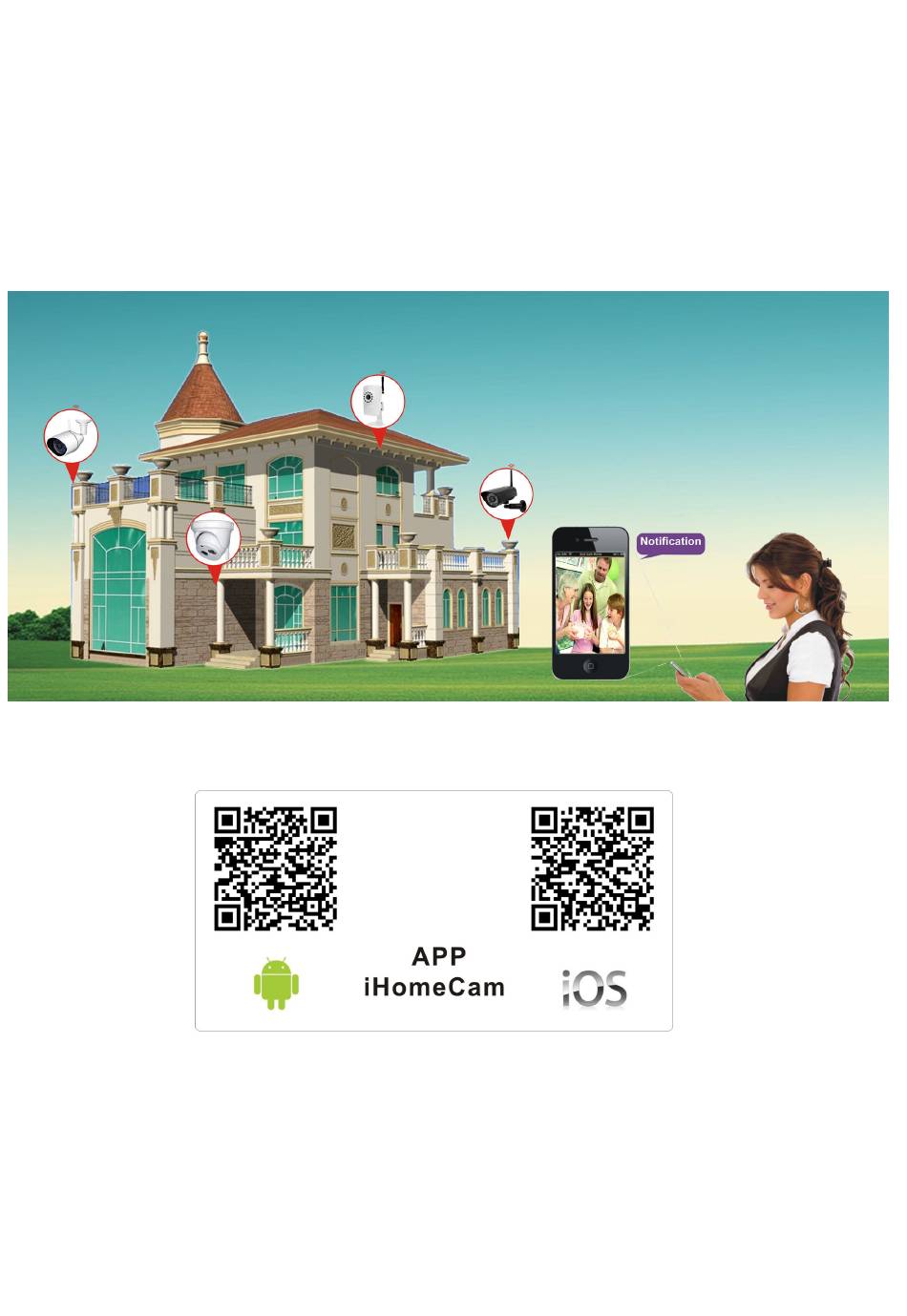

WIRELESS SURVEILLANCE SYSTEM
USER'S MANUAL
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING EQUIPMENT.
RETAIN IT FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 82-20515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Defender Security 82-20515

Summary of Contents for Defender Security 82-20515

  • Page 1 WIRELESS SURVEILLANCE SYSTEM USER’S MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING EQUIPMENT. RETAIN IT FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    CONTENTS CAUTION WARNING PRODUCTS OVERVIEW 2.1 LCD DVR 2.2 DVR 2.3 Camera SPECIFICATIONS 3.1 LCD DVR 3.2 DVR 3.3 Camera INSTALLATION 4.1 Install the LCD DVR 4.2 Install the DVR 4.3 Install the Camera 10-11 MENU OPERATION 5.1 Camera setting 11-13 5.2 REC setting 13-16...

  • Page 3: Caution

    CAUTION * Please read the following manual details before using. * Keep DVR and indoor camera being used in damp-proof and water-proof environment. * Don't scratch LCD screen and clean the surface by soft cloth if the screen was dirty. * The equipment should be disassembled or repaired only by a qualified technician.

  • Page 4: Products Overview

    2. PRODUCTS OVERVIEW 2.1 9 INCH LCD DVR WITH TOUCH CONTROLS Icons Introduction : Power indicator : IR signal sensor : Screen turn on / off : Intercom with camera（only for camera with microphone & speaker） : Switch single or quad screen : Move to left options or volume down : Confirm the settings or enter next step : Move to next options or next channel...
  • Page 5 9 INCH LCD DVR WITH BUTTON CONTROLS Button Introduction : Intercom with camera（only for camera with microphone & speaker） TALK : Start / Stop manual recording : Move to previous options or adjust the digital ▲ : Move to next options or adjust the digital ▼...

  • Page 6: Dvr

    Button Introduction : Screen turn on / off, or AV output : Intercom with camera（only for camera with microphone & speaker） TALK : Move to previous options or adjust the digital ▲ : Move to next options or adjust the digital ▼...

  • Page 7: Camera

    DVR Back Button Introduction : Move to previous options or adjust the digital ▲ : Move to next options or adjust the digital ▼ : Confirm the settings or enter next step ENTER : Move to left options or Switch to previous option ◄...

  • Page 8: Specifications

    C. Outdoor Camera D. Indoor Box Camera (speaker & microphone are optional ) E. Indoor Dome Camera 3. SPECIFICATIONS 3.1 LCD DVR ITEMS DESCRIPTION 9 inch TFT LCD (16:9) LED back-light Display Screen 7 inch TFT LCD (16:9 ) LED back-light Resolution 800(H)×RGB×480(V) 9 inch: 198mm...
  • Page 9 Cameras Supported 4 channels Transmission distance ～ 3 00 meters Line of sight 2-CH: 15fps@1280X720 HD Frame Rate 2-CH: 25fps@ 640×480 VGA Compression MPEG-4 File Type Record Mode 4-CH record separately Start recording mode Manual / Motion detect / Schedule Scheduled Recording 1 Week Automatic Overwrite...
  • Page 10 Dimensions 160(L)×115(W)×37(H) mm ( no antenna ) 3.3 OUTDOOR CAMERA ITEMS DESCRIPTION Image Sensor 1/4 inch color CMOS Sensor Active pixels 1280(H)×720(V) Horizontal Resolution 1.0 Megapixel Min illumination 0.1Lux/F=1.2 (0Lux LED On) Lens 3.6 mm (6mm optional) fixed lens Night Vision IR LED control Automatic (CDS Sensor) Quantity of IR LED...

  • Page 11: Lcd Dvr

    INDOOR DOME CAMERA ITEMS DESCRIPTION Image Sensor 1/4 inch color CMOS Sensor Active pixels 1280(H)×720(V) Horizontal Resolution 1.0 Megapixel Min illumination 0.1Lux/F=1.2 (0Lux LED On) Lens 3.6 mm (6mm optional) fixed lens Night Vision IR LED control Automatic (CDS Sensor) Quantity of LED 1 pcs Array LED Night vision range...

  • Page 12: Install The Camera

    * Install the antenna to DVR * Connect DVR with Router by RJ45 cable * Connect DVR with TV/monitor by AV cable * Plug in the power adapter of DVR Notes: - Before using the equipment, please confirm the Router is open DHCP service (Generally, the router is open DHCP service automatically).

  • Page 13: Menu Operation

    Description of Icons on the screen: (1) Wireless signal (2) Camera channel No# (3) Recording resolution (4) Recording in progress (5) Network connection status (6) Time and Date (7) Memory card inside 5. MENU OPERATION 5.1 CAMERA SETTING 5.1.1 Pairing – To pair the camera with a selected DVR channel. 5.1.1.1 Plug and turn on the power adapters of DVR and cameras.
  • Page 14 Note: - If no video displayed on the screen, it means the pairing is not successful, please repeat the above operation again. - The system support up to 4 cameras. 5.1.2 Camera On/Off – To turn on / off the DVR recording channel. At the "Camera setting"...

  • Page 15: Rec Setting

    At the "Camera setting" screen, press"▲ ▼" to select "Brightness" and press "Enter" to enter next step. Press "▲ ▼" to select "Cam 1-2-3-4", and press "◄ ►" to select "1-6" , then press "Enter" to confirm and press "Menu" to exit. 5.1.5 Anti-flicker –...
  • Page 16 5.2.2 Scheduled Setting – To set the recording schedule for each camera 5.2.2.1 At the "Recording" screen, press "▲▼" to select "Scheduled Setting", press "Enter" to enter next step. Press "Enter" to select "Modify" to enter next step. 5.2.2.2 At the “Scheduled Recording” screen, press "◄ ►" to select "Cam 1-2-3-4" and press “Enter”...
  • Page 17 5.2.3 Motion Detection – To choose the detection sensitivity as per needs At the "Recording" screen, press "▲▼" to select "Motion Detection", press "Enter" to enter next step, and press "Enter" at the Motion Detection screen to enter next step. Press "▲ ▼" to select "Cam 1-2-3-4", and press "◄ ►" to select "Low/Mid/High"...

  • Page 18: System Setting

    confirm and press “Menu” to exit. 5.2.5 File Overwrite - To determine DVR continue recording or not when the memory card is full At the “Recording” screen, press “▲▼” to select “File Overwrite”, press “Enter” to enter next step. Press “▲ ▼” to select “YES / NO”, then press “Enter” to confirm and press “Menu”...
  • Page 19 press “Menu” to exit. 5.3.2 Video Out – To choose the video output to TV/monitor or LCD DVR At the “Setting” screen, press “▲ ▼” to select “Video Out”, and press “Enter” to enter next step. Press “▲ ▼” to select “NTSC / PAL/Panel “, then press “Enter” to confirm and press “Menu”...
  • Page 20 to enter next step. Press “▲ ▼” to select “YES / NO “, then press “Enter” to confirm and press “Menu” to exit. 5.3.5 Alarm – To set audio alarm triggered or not when motion detected At the “Setting” screen, press “▲ ▼” to select “Alarm”, and press “Enter” to enter next step.

  • Page 21: System Info

    5.3.8 Network – To check or set the network connection 5.3.8.1 At the “Setting” screen, press “▲ ▼” to select “Network”, and press “Enter” to enter next step. Press “◄ ►” to select “Dynamic IP”, then press “Enter” to confirm and press “Menu”...

  • Page 22: Playback

    Press “Menu” to enter the main menu, and press “◄ ►” to select “System Info”, then press “Enter” to enter next step. Press “▲ ▼” to select “Card Info” at System Info screen and press “Menu” to exit. 5.4.2 Version – To check the version information of firmware At the “System Info”...

  • Page 23: Usage Of Software In Ios Operating System

    At the “Folder Name” screen, press "▲ ▼" to select the file (e.g: "00000040") and press "Enter" to enter next step. Press "▲ ▼" to select camera channel/date/time concrete file (e.g. 153147-3 / 2014/02019 / 15:31:46), then press "Enter" to play or press "Menu"...

  • Page 24: How To Add Dvr

    Use Apple phone to search "iHomeCam" APP ( as below picture ) in the Apple App Store, and install the software. 6.2 HOW TO ADD DVR 6.2.1 After software installation is completed, please search icon "iHomeCam"( as below picture ) at your Apple phone desktop. 6.2.2 display the following interface Click the icon “iHomeCam”...
  • Page 25 Equipment real-time viewing shortcut interface Equipment event lists Add camera Mobile phone Software version THREE METHODS TO ADD DVR 6.2.2.1 Add DVR by searching local network DVR Click to begin searching for Local area network DVR. Select the DVR, enter the password. Click the "Save" to add DVR to the list. 6.2.2.2 Add DVR by scanning QR Code Click to scan QR code to obtain UID automatically, then enter password and...

  • Page 26: User Operation

    Note: Please change the password for safety purpose. 【Save】: Click Save after finishing above. 6.3 USER OPERATION 6.3.1After adding DVR successfully, click , image on DVR can be viewed. 6.3.2 Click the icon CH1-CH2-CH3-CH4, then images can be viewed on Apple phone.

  • Page 27: System Settings

    Snapshot image Review image Select the audio mode Mute ／ Listen ／ Speak Displayed camera channel (CH1/CH2/CH3/CH4) 6.4 SYSTEM SETTINGS 6.4.1Enter into system settings Press for 2 seconds, the below windows appear. 【Name】The initial device name 【Password】Default password 000000 【Advanced Setting】Access to the system parameter modification 【Reconnect】Refresh network signal coupling 6.4.2 Security Code settings...

  • Page 28: How To Delete Dvr

    Fill the old password firstly, then fill the new password and confirm password, then click “OK”. Note: Please change the password for safety purpose. 6.4.3 Video Quality According to the customer’s internet conditions (e.g: Internet signal, speed) to adjust the parameter (Max/High/Medium/Low/Min) of the real time play back results.

  • Page 29: Usage Of Software In Android Operating System

    7. USAGE OF SOFTWARE IN ANDROID OPERATING SYSTEM Android mobile phones and Android tablet PC hereafter refer as “Android phone”. Before using the software, open the phone Wi-Fi function or 3G data services, and ensure the Android phone can connect to the Internet properly. 7.1 INSTALL CLIENT-END SOFTWARE APP iHomeCam Use Android phone to search "iHomeCam"...
  • Page 30 7.2.2 display the following interface. Click the icon “iHomeCam” to THREE METHODS TO ADD DVR 7.2.2.1 Add DVR by searching local network DVR Click to begin to search Local area network DVR. Select the DVR and enter the password, then click the "OK" to finish adding new DVR. 7.2.2.2 Add DVR by scanning QR Code Click to scan QR code to obtain UID automatically, then enter...

  • Page 31: Statement

    Click and device adding interface will appear. Enter “Name”, “UID”, “Password” accordingly, and click “OK” to finish adding DVR. 【Name】: User-defined name 【UID】 : DVR unique identification No#, which can be found at the label on the DVR or DVR’s MENU - System Info – Network Info - UID. 【Password】: Default password is 000000 Note: Please change the password for safety purpose.
  • Page 32 9.4 Network connect successfully, but without images 1. Make sure the camera under this channel of DVR has image 2. Make sure the pairing between DVR and camera is successful. 3. Make sure the camera is within the limited transmission distance. 4.
