Defender Security 15-2400AKS User Manual

SCRAMBLING
2.4GHz WIRELESS
ITEM NO.: 15-2400AKS
1 FEATURE
1.1 2.4 GHz wireless transmitter and receiver with 8 selectable channels (DIP
Switch)
1.2 Multi-channel with SCRAMBLING CODE (expandable channels for special
application)
1.3 Swivel and 1/4λ dipole antenna with 4.2 dBi
1.4 Compact size & low cost (module includes all base band circuits)
1.5 Provides high quality video and stereo audio transmission
1.6 Compatible with Camcorder or COMS camera application
1.7 Very high output power (100mW output power)
1.8 Low power consumption
1.9
NTSC / PAL video format available
2 INSTALLATION

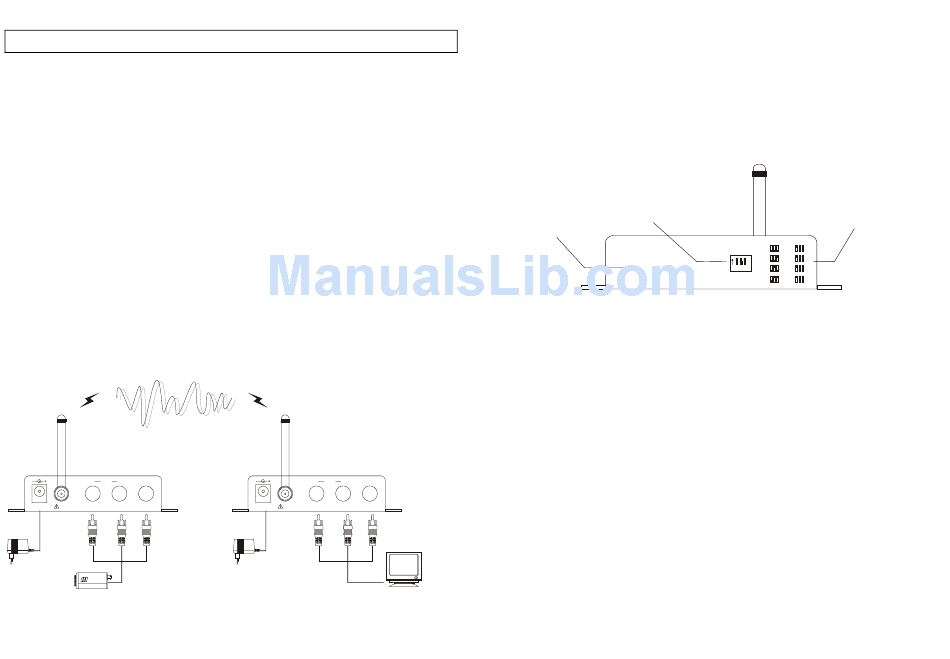

2.1 Connect the Scramble Transmitter and Receiver to the A/V Sources and
Display with A/V cable
Transmit video signal with scrambling code
The Back panel of Scramble Transmitter
Antenna L Audio R Video
DC 12V Do not power on while the antenna is not assembled
A/V Sources: Security Camera, Video Recorder,
Compact Disc Player, Hi-Fi System etc.
A/V TRANSMISSION
The Back panel of Scramble Reveiver
Antenna L Audio R Video
DC 12V Do not power on while the antenna is not assembled
A/V Displays: TV Monitor, Computer Monitor(Converted
card required), Powered Speakers etc.
2.2 Plug both power adopter for Transmitter and Receiver
2.3 Set the Transmitter and Receiver to same channel by DIP Switch
DIP Switch for Channel
Power Indicator
POWER
3 WARNIG
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
4 PACKING LIST
Scramble Transmitter
Receiver
Antenna
Adapter (300mA with regulator)
A/V LINE WITH STEREO JACK (3R)
User's manual
Accessory
User's Manual
Indicator for channel setting
CH.1 CH.5
ON CH.2 CH.6
1 2 3
CH.3 CH.7
CH.4 CH.8
X1
X1
X2
X2
X2
X1
X2
X1
