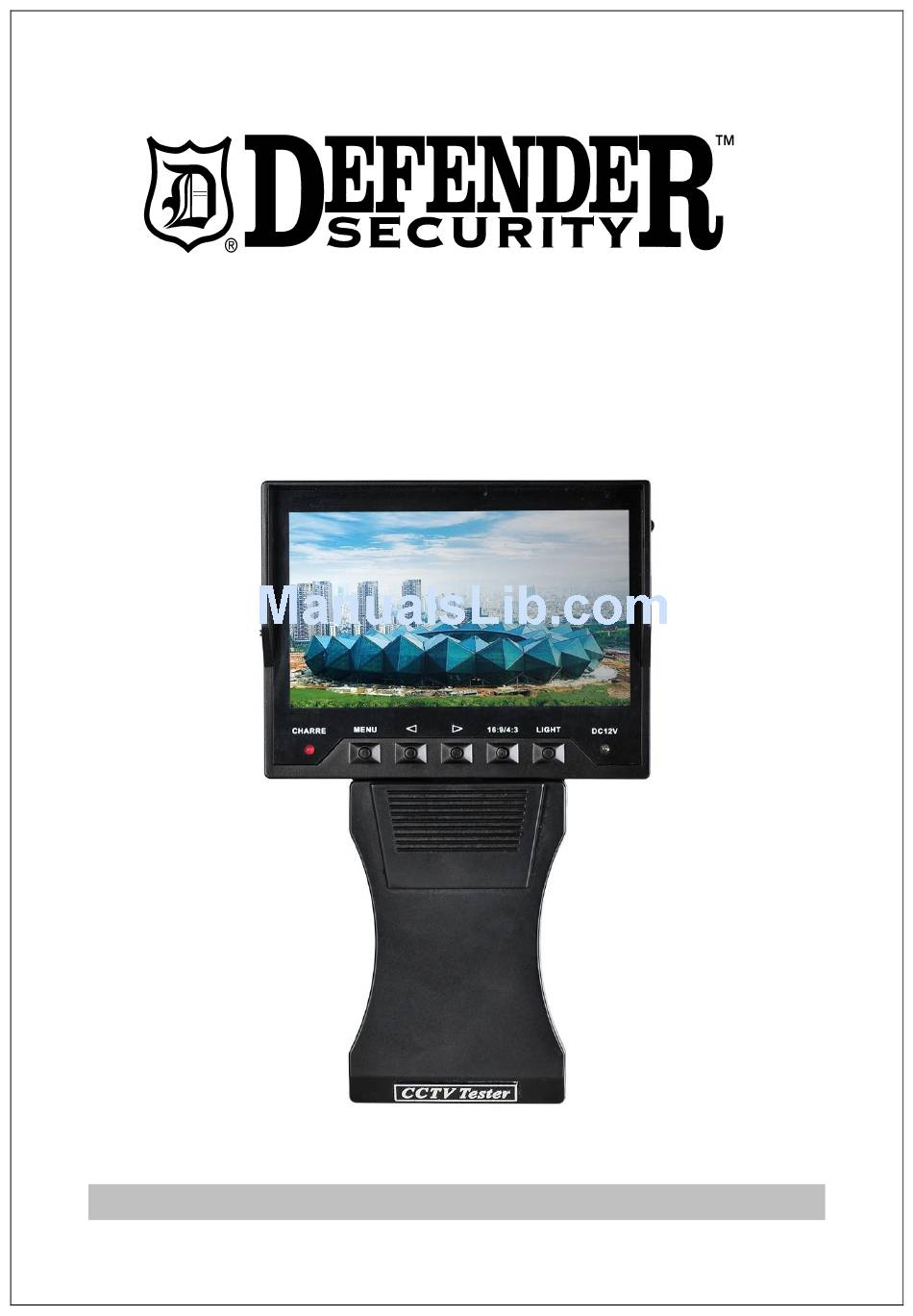

- Page 1 4.3" AHD 1080p CCTV Test Monitor Owner’s Manual 82-20520...
- Page 2 Warning: ☆ Avoid exposing this product to moisture. ☆ Follow all operating guidelines in accordance with this to avoid potential permanent damage to the product. Caution: Common notice ◎Do not disassemble this device by yourself. Please contact supplier for repair service. Protection against moisture ◎...
- Page 3 Features: ◎Facilitates direct, hands-free connections to AHD 1080p, AHD 720p and 960H (CVBS) cameras for field focusing, audio testing and Cat5/6 cable testing. ◎Breakout cable with video input, audio input, and DC12V output. ◎Standard color bar generator test function. ◎ Convenient fold-able design wrist-mount,...
- Page 4 Accessories: Standard accessories (Pictures only for reference. Accessories based on actual product received.) Power socket, Video input/output, audio input line AC/DC Adapter (1A/5V) Network line...
- Page 5 Introduction: ◎ Portability This product’s compact design eliminates the need for complicated equipment that hinders inspection and repair. ◎ Monitor 4.3″ high resolution monitor shows clear images. ◎ Long run time Equipped with a high charge Lithium battery offering 7 working hours with a 6 hour recharge time.
-
Page 6: Function Key Guide
Function Key Guide 1．4.3”TFT LCD 2. When charging, this indicator light will glow red. 3. When powered on this indicator light will glow green. 4. Press Function menu button to open or close the settings menu. 5-6：Open function menu, press these buttons to adjust the brightness, contrast in color saturation, volume and language selection. - Page 7 Select a screen ratio of 16:9 or 4:3 8. Lighting switch. 9. 5V power input AC / DC adapter, DC5V 1.0A. 10. Power switch. 11. Camera 12V power,video,audio output 12.Reset switch LED work light LAN Port 15.Foldable stand...
- Page 8 Rechargeable Battery Operation: Rechargeable battery warning: Please do not attempt to change or disassemble the rechargeable battery included with your field view camera tester. Charging the Tester: 1. Place the AC adaptor plug into the AC mains power socket. 2. Place the DC barrel plug into tester DC input power socket. 3.
- Page 9 Specification: Mainframe Display 4.3"TFT Color LCD Number of Pixel 480RGB(H)X272(V) Video In Video In × 1 (BNC connector) 7 kinds of color bar signal output DC power out × 1 Export (Support CCD camera of power source/ Max electric currency 500mA) System NTSC / PAL Format...
