Page 1
This product is intended for indoor use only. We recommend using a qualified trades person for installation. Use an assistant or lifting equipment to lift and position products. For support, please call: +44 (0)1865 767676 or email: sales@unicol.com...
Page 2

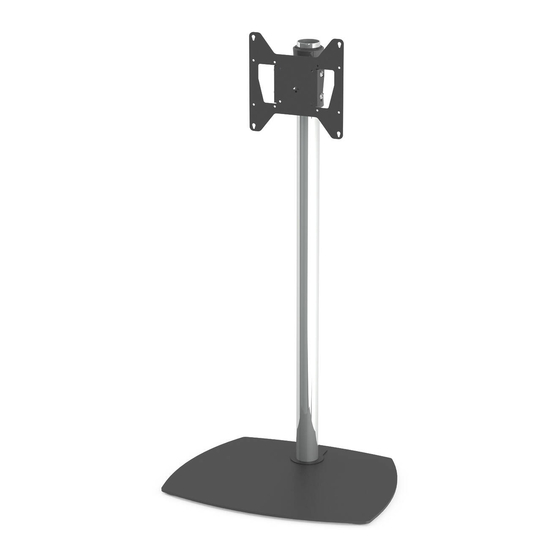

01865 767676 sales@unicol.com www.unicol.com TOOLS REQUIRED INSTALLERS REQUIRED 3/16th Allen Key 5mm Allen Key COMPONENTS DESCRIPTION 1000mm Column Single Column VESA Mount Tevella Base Column Support Ring Alternative Bases Revised 15/12/20...
Page 3
01865 767676 sales@unicol.com www.unicol.com STEP 1 STEP 2 Check the jaws of the column grip, if you can push Place the column support ring over the crocodile them together to fit a column over, ignore this step. lug with the straight edge facing the rear of the If you can’t, you will need to loosen the screw on...
Page 4
01865 767676 sales@unicol.com www.unicol.com STEP 6 STEP 5 Slide the mount and adapter over the column and Loosen the screws at the side of the mount to set position at the desired height. When happy, tighten the angle of the screen. Once in position, retighten the grub screw to secure the mount and screen into the screws.
