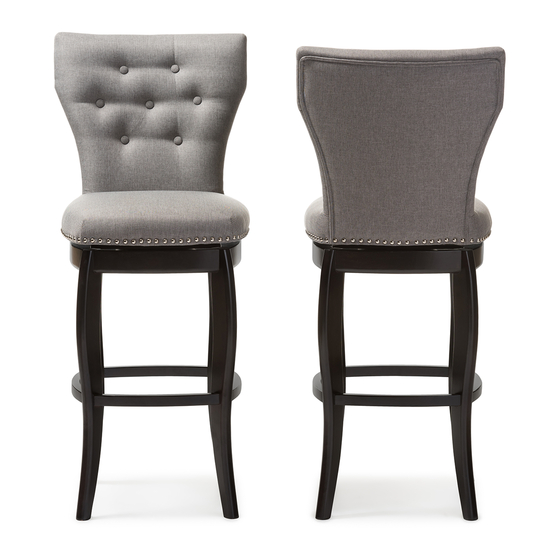

Swivel bar stool

Advertisement

Quick Links

MODEL : BBT5222 SWIVEL BAR STOOL
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver & Hammer (not provider).

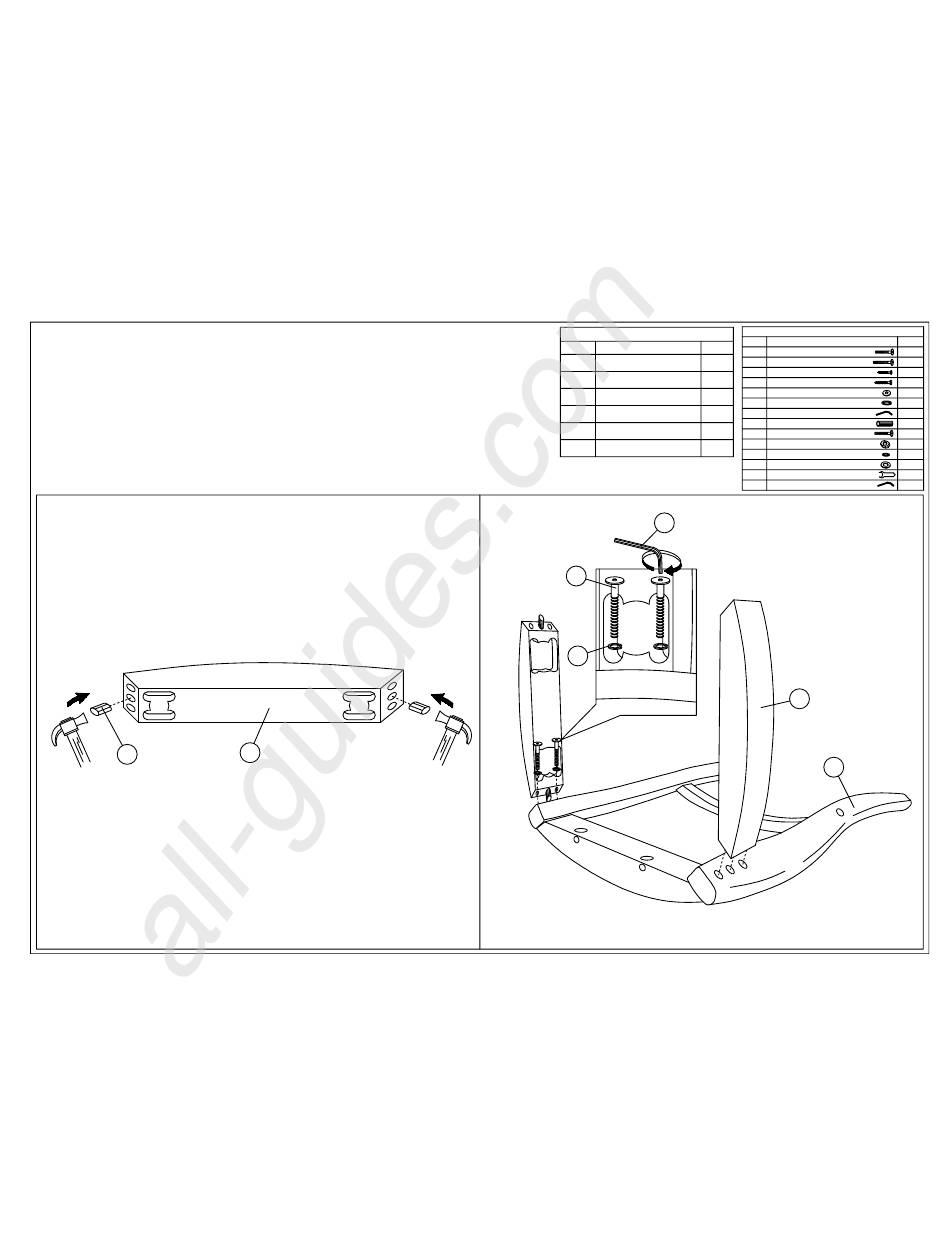

STEP 1

8
All manuals and user guides at all-guides.com
ASSEMBLY INSTRUCTIONS
x2
C

PART LIST

ITEM
DESCRIPTION
A
CHAIR FRAME
B
CHAIR LEG
C
SIDE RAIL
D
SWIVEL PLATE
E
SIDE STRETCHER
F
SUPPORT WOOD

STEP 2

7
x2
2
6

HARDWARE LIST

ITEM
DESCRIPTION
QTY
1
JCBC BOLT M6 x 20mm
1pc
2
JCBC BOLT M6 x 50mm
3
WOOD SCREW M4 x 25mm
2pcs
4
WOOD SCREW M4 x 32mm
5
M6 FLAT WASHER
2pcs
6
M6 SPRING WASHER
1pc
M4 ALLEN KEY (BALL SHAPE)
7
8
WOOD DOWEL M8 x 35mm
2pcs
JCBB BOLT M8 x 50mm(BLACK)
9
10
M8 HEX NUT (BLACK)
2pcs
11
M8 SPRING WASHER
12
M8 FLAT WASHER
SPANNER (13mm)
13
14
M5 ALLEN KEY (BALL SHAPE)
Note : Loosely fit the bolts.
C
B
1 of 4
QTY
4pcs
8pcs
4pcs
4pcs
4pcs
12pcs
1pc
4pcs
4pcs
4pcs
4pcs
4pcs
1pc
1pc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBT5222 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baxton BBT5222

  • Page 1 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS MODEL : BBT5222 SWIVEL BAR STOOL 1 of 4 Read this instruction carefully. See hardware and furniture part list for guidance. HARDWARE LIST PART LIST ITEM DESCRIPTION Be sure all parts are complete, before you assemble. Place all wooden furniture...
  • Page 2 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS 2 of 4 STEP 3 STEP 3.2 Follow the label direction to fix the STEP 3.1 support wood as picture shown. Note : Loosely fit the bolts. STEP 4 STEP A STEP B Tighten all the bolts at this stage.
  • Page 3 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS 3 of 4 STEP 5 STEP A STEP B...
  • Page 4 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS 4 of 4 STEP 6 STEP 7 WARNING 1. Do Not stand on this swivel bar stool. Do Not use this swivel bar stool step ladder. 2. Use this product only for seating one person at one time. 3.
