MODEL : BBT6652 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver (not provider).

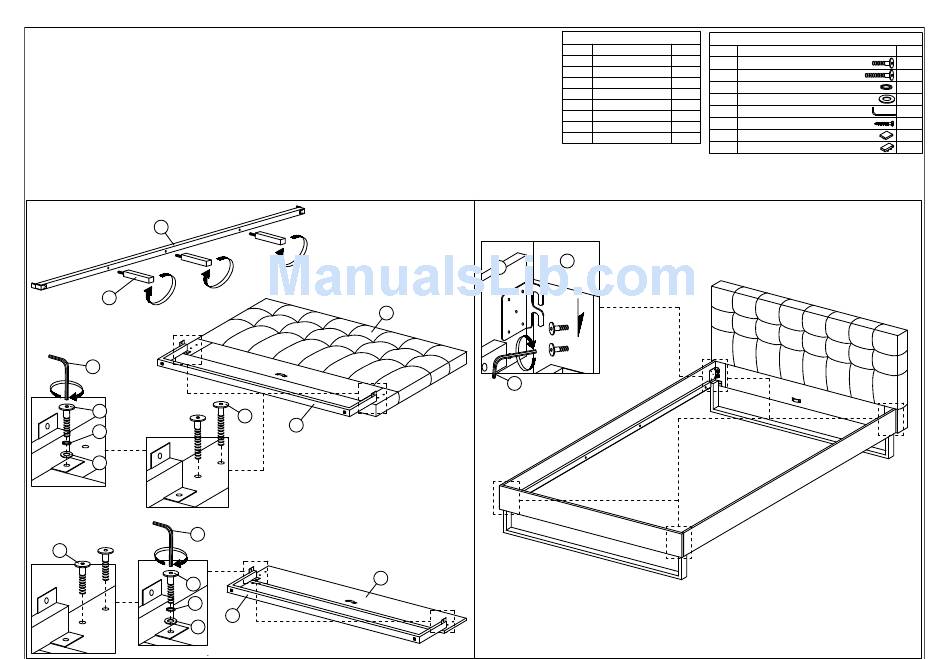

STEP 1
D
E
5
1
3
4
Don't screw tied
5
1
1
3
4
Don't screw tied
ASSEMBLY INSTRUCTIONS
Loosely fit bolt (2) into Headboard (A) picture shown.
A
2
G
Loosely fit bolt (1) into Footboard (B) as picture shown.
B
G
PART LIST
ITEM
DESCRIPTION
A
HEADBOARD
B
FOOTBOARD
C
SIDE RAIL
D
CENTER RAIL
E
CENTER SUPPORT LEG
F
CENTER SUPPORT
G
METAL LEG
H
BED SLAT
STEP 2
Don't screw tied
A
C
5
HARDWARE LIST
QTY
ITEM
DESCRIPTION
1 PC
1
JCBB BOLT M8 x 16mm
1 PC
2
JCBB BOLT M8 x 40mm
2 PCS
3
M8 SPRING WASHER
1 PC
4
M8 FLAT WASHER
3 PCS
M5 ALLEN KEY (BALL SHAPE)
5
2 PCS
6
WOOD SCREW M3.5 x 16mm
2 PCS
7
BED SLAT CENTER FITTER
26 PCS
8
BED SLAT SIDE FITTER
1 of 2
QTY
12 PCS
4 PCS
8 PCS
8 PCS
1 PC
8 PCS
13 PCS
26 PCS
