Antenna Control Unit (ACU)
Antenna Control Unit (ACU) provides the power to the antenna and
controls the various settings of the antenna. Additionally, Vacuum
Fluorescent Display (VFD) allows for you to operate the ACU in the dark.
The functions of ACU are as follows:
• Provide power for the antenna unit
• Monitor the antenna status
• Change the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
8
Front
Rear

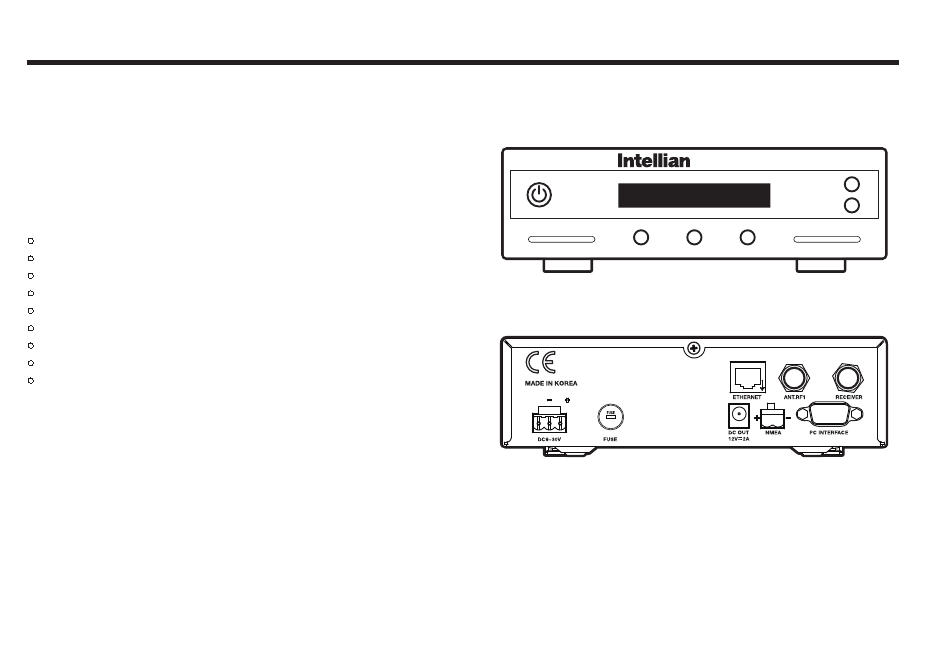

Figure 3: Antenna Control Unit (ACU)
Antenna Control Unit
