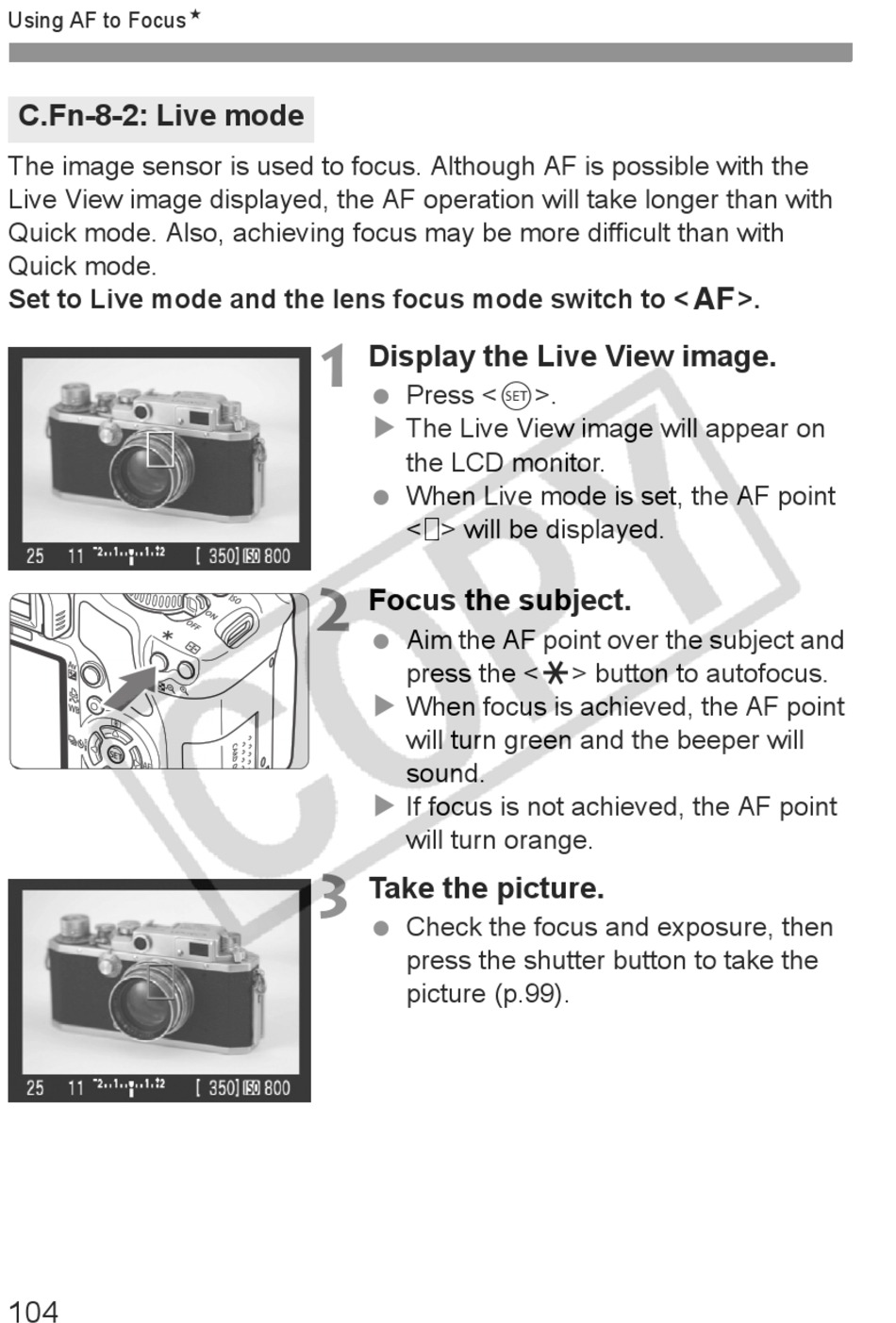

Take The Picture - Canon Xsi Instruction Manual

Using AF to FocusN
C.Fn-8-2: Live mode
The image sensor is used to focus. Although AF is possible with the
Live View image displayed, the AF operation will take longer than with
Quick mode. Also, achieving focus may be more difficult than with
Quick mode.
Set to Live mode and the lens focus mode switch to <f>.
104
Display the Live View image.
1
Press <0>.
The Live View image will appear on
the LCD monitor.
When Live mode is set, the AF point
< > will be displayed.
Focus the subject.
2
Aim the AF point over the subject and
press the <A> button to autofocus.
When focus is achieved, the AF point
will turn green and the beeper will
sound.
If focus is not achieved, the AF point
will turn orange.

Take the picture.

3
Check the focus and exposure, then
press the shutter button to take the
picture (p.99).
