  • Page 1 ® products have a 30-day money back guarantee when purchased directly from zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the policies of the third party. 1 Year manufacturer warranty Warranty registration at www.zBoost.com...

  • Page 2: Fcc Information

    FCC ID: SO4ZB570-PCS-CEL FCC contact information: www.fcc.gov/signal-boosters/registration. Warning: Changes or modifi cations to this device not expressly approved by zBoost could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Safety Guidelines

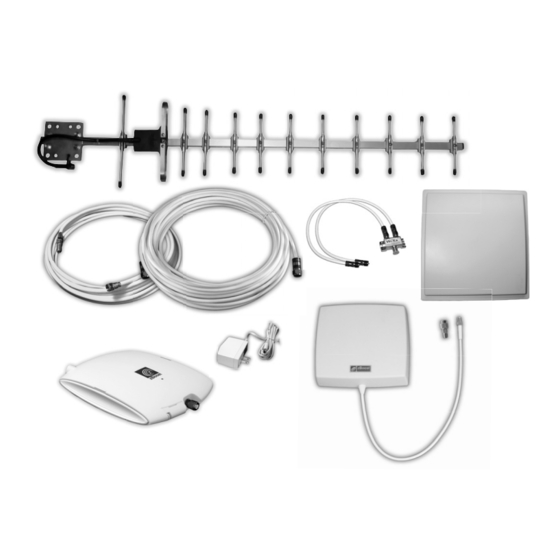

    (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter Before you begin, make sure all of the following parts came with your zBoost ZB645 Platinum n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.

  • Page 4: Table Of Contents

    ® ® Table of Contents Optional zBoost Accessories The following accessories are authorized for this zBoost product. Please see our website for FCC Requirements........................i complete selection. To order, call 1-800-871-1612 or visit, www.zBoost.com FCC Information .......................... ii Broadcast Antennas - Indoor Industry Canada Regulations ......................

  • Page 5: Overview

    There are several obstacles that can contribute to the poor reception you receive in your home: Before placing a zBoost in your home, make sure that you can place calls on the outside of your Location of the Cell Phone Tower in Relation to Your Home home, in the attic, at roof level or wherever you plan to place the External Antennas.

  • Page 6: Cable Requirements

    (not provided). Outdoor J-pole Antenna Mounting Bracket, YX014 is available at www.zBoost.com. Loosely connect the antenna to the mast Caution: Before drilling any holes into a wall to run your cable, make sure you know where existing to allow the antenna to be reoriented for strongest signal.

  • Page 7: Antenna Aiming

    NOTE: Refrain from securing cable or drilling holes until the system has been tested. Note: A 1 dBm increase is 25% gain in signal strength. The zBoost ZB645 Platinum includes 2 coax cables, 50 ft. for External Antenna and 15 ft. for Indoor Antenna.
  • Page 8 ZB645 Platinum Manual zBoost ZB645 Platinum Manual ® ® phone in exactly the same place and pointing in the same direction for the following steps. Note the direction of the CEL Panel External Antenna starting position ________________. Rotate the CEL Panel External Antenna 90 degrees and then record the phone signal bars ______(B).

  • Page 9: Confi Rm That Your Zboost Is Working Properly

    ZB645 Platinum Manual ® ® Confi rm That Your zBoost is Working Properly Base Unit Light Indicators With everything connected and the Base Unit plugged in, you should walk throughout the room and see that you are able to reliably place calls.

  • Page 10: Technical Specifi Cations

    Up to 10,000 sq. ft. No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your best signal is 1 bar at the External Antenna, your coverage will be limited to one or two rooms. You The Manufacturer’s rated output power of this equipment is for single carrier operation.

  • Page 11: Warranty Information

    Where is the best place to put my zBoost External Antenna? Warranty Information The zBoost signal antenna should be placed at the highest point in your house in order to “catch” the strongest signal. This location could be in the attic or on the roof. The placement of the External Antenna is very important.
  • Page 12 If still solid red, call customer support 1-800-871-1612. To get warranty service… Warranty service will be provided by zBoost. If you believe you need service for your unit, contact zBoost at 1-800-871-1612 or support@zBoost.com. A representative will go through a diagnostic checklist with you.
