zBoost PRO 7500
ZBC745SL-CM
User Manual
zBoost
products have a 30-day money back guarantee when purchased directly from
®
zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the
policies of the third party.
2 Year manufacturer warranty
Warranty registration at www.zBoost.com
.
v0214
Advertisement
Table of Contents
Related Manuals for zBoost ZBC745SL-CM
Summary of Contents for zBoost ZBC745SL-CM
-
Page 1: User Manual
30-day money back guarantee when purchased directly from ® zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the policies of the third party. 2 Year manufacturer warranty Warranty registration at www.zBoost.com... - Page 3 PRO 7500 ZBC745SL-CM Manual ® FCC Requirements This is a CONSUMER Device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. AT&T, Sprint, T-Mobile, Verizon and 90 additional carriers have already given consent for all consumers to use this device.
-
Page 4: Fcc Information
FCC Information FCC ID: SO4ZB570-PCS-CEL Warning: Changes or modifications to this device not expressly approved by zBoost could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Copyright Notice
Copyright © 2014 by zBoost. Trademarks zBoost, the zBoost logo, Wireless Extenders, Wi-Ex, the Wi-Ex logo, and Extending Cell Zones are registered trademarks of zBoost. Safety Guidelines In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm) is maintained between the radiating element and the user and/or general population. -
Page 6: Package Contents

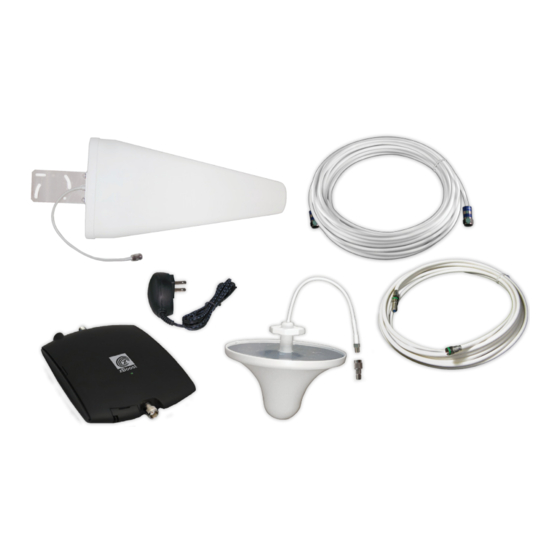

PRO 7500 ZBC745SL-CM Manual ® Package Contents Before you begin, make sure all of the following parts came with your zBoost ZBC745SL-CM. Item Description ① Setup Overview zBoost Base Unit ② Base Unit Power Supply ③ ④ RG-6 coax, 15 ft. -
Page 7: Optional Zboost Accessories
PRO 7500 ZBC745SL-CM Manual ® Optional zBoost Accessories The following accessories are authorized for this zBoost product. Please see our website for complete selection. To order, call 1-800-871-1612 or visit, www.zBoost.com Broadcast Antennas - Indoor CANT-0032 Indoor Broadcast Antenna, Omni Whip Direct to Booster, Black, CEL-PCS (1 dBi) -
Page 8: Table Of Contents
Optional zBoost Accessories ....................... v Table of Contents .......................... 1 Overview............................2 Why Indoor Signals Can Be Weak ....................2 Preparing to Set Up Your zBoost Product .................. 3 Tools Needed ..........................3 Check for Signal Strength ......................3 Cable Requirements........................4 Grounding the Directional External Antennas ................ -
Page 9: Overview
® Overview Thank you for choosing zBoost! You will now be able to use your cell phone INSIDE your home. Gone are the days when you had to go to the window upstairs or walk outside to use your cell phone. -
Page 10: Preparing To Set Up Your Zboost Product
Check for Signal Strength Before placing a zBoost in your home, make sure that you can place calls on the outside of your home, in the attic, at roof level or wherever you plan to place the External Antenna. zBoost can only bring signal into your home when signal reaches the External Antenna. -
Page 11: Cable Requirements
PRO 7500 ZBC745SL-CM Manual ® Before installing, please note the following important factors in determining your zBoost performance: • At least 15 vertical feet is needed between the External Antenna (receives the outside signal) and the Indoor Antenna (rebroadcasts the signal indoors). Separation less than 15 vertical feet will result in decreased performance. -
Page 12: Power Requirements
(not provided). Outdoor J-pole Antenna Mounting Bracket, YX014 is available at www.zBoost.com. Loosely connect the antenna to the mast to allow the antenna to be reoriented for strongest signal. Take special care in aiming the External Antenna in the direction of best signal. -
Page 13: Second: Position Base And Indoor Antenna
THIRD: Run the Coaxial Cable NOTE: Refrain from securing cable or drilling holes until the system has been tested. The zBoost PRO 7500 ZBC745SL-CM includes 2 coax cables, 50 ft. for External Antenna and 15 ft. for Indoor Antenna. Connect one end of the 50 ft. cable to the base of the External Antenna. Run the coaxial cable along a descending pipe or through a wall that leads closest to the location of the Base Unit. -
Page 14: Fourth: Connect Zboost Base Unit To Power
You may wish to use a YX699 RF signal meter to help during this process or try our zBoost Signal Finder Android App. The majority of the time a cell tower will hold more than 1 frequency band and/or service provider. - Page 15 PRO 7500 ZBC745SL-CM Manual ® Continue to rotate the antenna another 90 degrees in the same direction and record the phone signal bars _________(C). Again, rotate the antenna another 90 degrees in the same direction and again record the phone signal bars _________(D).
- Page 16 PRO 7500 ZBC745SL-CM Manual ® External Antenna Coax Cable Indoor Antenna Base Unit Power Supply...
-
Page 17: Confirm That Your Zboost Is Working Properly
PRO 7500 ZBC745SL-CM Manual ® Confirm That Your zBoost is Working Properly With everything connected and the Base Unit plugged in, you should walk throughout the room and see that you are able to reliably place calls. Remember, coverage varies based on outdoor signal level, home construction, and general installation care. -
Page 18: Base Unit Light Indicators
PRO 7500 ZBC745SL-CM Manual ® Base Unit Light Indicators During Initial Power Up Light Mode Status Solution Cycle RED, System is GREEN, powering up. ORANGE Please allow up to 30 seconds. Flashing BASE UNIT will Unplug the BASE UNIT power supply. -
Page 19: Technical Specifications
PRO 7500 ZBC745SL-CM Manual ® Technical Specifications Product Specifications for zBoost PRO 7500 ZBC745SL-CM PCS band Frequency Uplink: 1850 to 1910 MHz Downlink: 1930 to 1990 MHz System Gain 77 dB PCS band supported A, D, B, E, F, C... -
Page 20: Frequently Asked Questions
Does the zBoost work if you have no bars? No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your best signal is 1 bar at the External Antenna, your coverage will be limited to one or two rooms. You could improve that with an upgraded antenna. - Page 21 Where is the best place to put my zBoost External Antenna? The zBoost signal antenna should be placed at the highest point in your house in order to “catch” the strongest signal. This location could be in the attic or on the roof. The placement of the External Antenna is very important.
-
Page 22: Warranty Information
The “de-kitting” and sale as a standalone product of any one or more components of such a product kit is in violation of zBoost’ warranty. No “de-kitted” product will be eligible for return for any reason. The sale of separate, not-kitted cable, antennas and other accessories is allowed and fully... - Page 23 If still solid red, call customer support 1-800-871-1612. To get warranty service… Warranty service will be provided by zBoost. If you believe you need service for your unit, contact zBoost at 1-800-871-1612 or support@zBoost.com. A representative will go through a diagnostic checklist with you.
