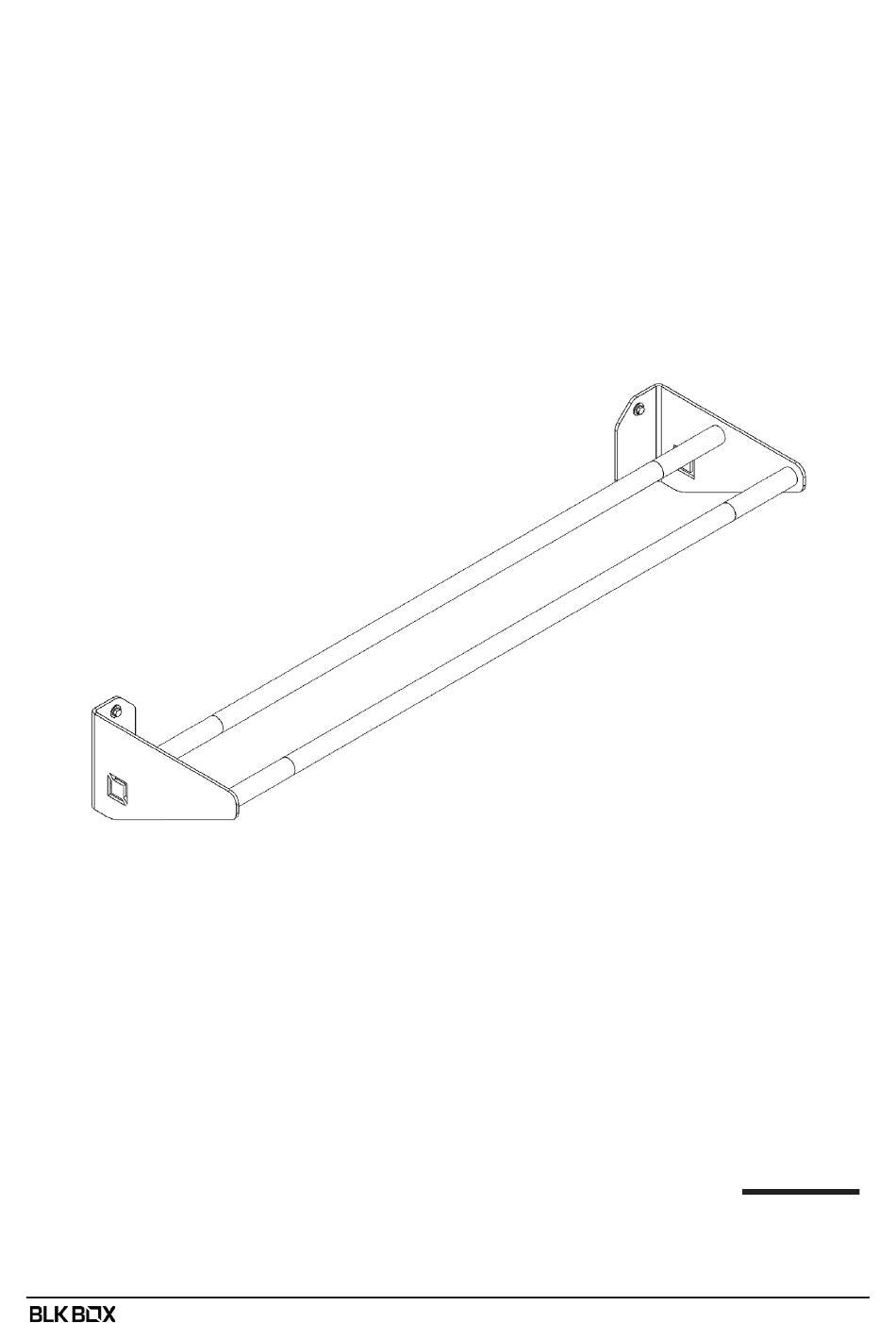

- Page 1 BLK BOX MED BALL STORAGE 21-0174 PRODUCT SPECIFICATION OWNERS MANUAL & QUICK START GUIDE PRODUCT WEIGHT 12kg NOTE : PLEASE READ ALL THE INSTRUCTIONS 1380mm x 356mm x 200mm CAREFULLY BEFORE ASSEMBLING THIS PRODUCT. DIMENSIONS #MADEINBELFAST...
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. -
Page 3: Installation
INSTALLATION MEASURE, MARK AND DRILL HOLES USING GUIDES PROVIDED. 1268mm 1050mm CENTER LINE SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE INTO THE WALL, 90MM DEEP -VACUUM OUT THE DUST. DRILL HOLE VACUUM 90MM #MADEINBELFAST... - Page 4 ATTACH MED BALL STORAGE (21-0237) TO THE WALL USING SLEEVE ANCHORS (10-0031) AS SHOWN. TIGHTEN ALL BOLTS TO SPECIFIED TORQUE. SLEEVE ANCHOR BOLT FITTING -HAMMER SLEEVE ANCHOR INTO THE HOLE. -TIGHTEN SLEEVE ANCHOR TO SPECIFIED TORQUE HAMMER IN TIGHTEN BOLT USING 13MM SPANNER.
- Page 5 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10 FLAT WASHER 10-0019 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
