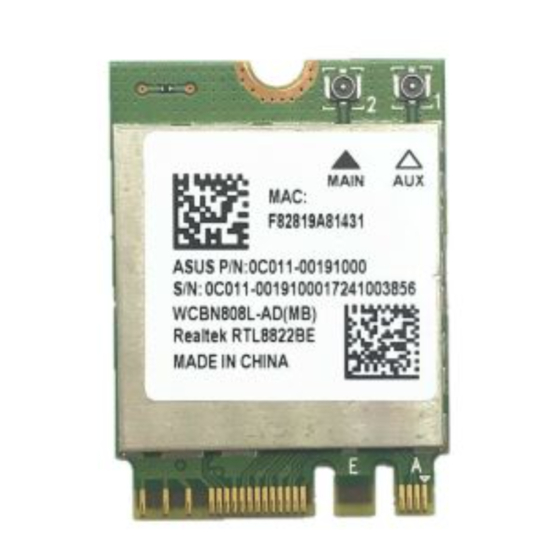

- Page 1 RTL8822BE User’s Manual (Realtek RTL8822BE) Combo NGFF Type2230 Module User’s Manual Preliminary Version 21/06/2016 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com...
-
Page 2: Table Of Contents
RTL8822BE User’s Manual ONTENT ENVIRONMENTAL ..........................3 ............................3 PERATING ..............................3 TORAGE MTBF ..........................3 CACULATION WARNING ............................3 Federal Communication Commission Interference Statement ......3 ......................5 NDUSTRY ANADA TATEMENT NCC 警語....................12... -
Page 3: Environmental
RTL8822BE User’s Manual ENVIRONMENTAL Operating Operating Temperature: 0°C to +70 °C Relative Humidity: 5-90% (non-condensing) Storage Temperature: -40°C to +80°C (non-operating) Relevant Humidity: 5-95% (non-condensing) MTBF caculation Over 150,000hours Warning Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 4 RTL8822BE User’s Manual Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
-
Page 5: Industry Canada Statement
The final end product must be labeled in a visible area with the following " Contains TX2-RTL8822BE ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. - Page 6 RTL8822BE User’s Manual French translation: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer...
- Page 7 RTL8822BE User’s Manual brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
- Page 8 RTL8822BE User’s Manual French translation: Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes...
- Page 9 RTL8822BE User’s Manual required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.
- Page 10 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC: 6317A-RTL8822BE ”. French translation: Plaque signalétique du produit final Ce module émetteur est autorisé...
- Page 11 RTL8822BE User’s Manual regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. The end user has to also be informed that any changes or modifications not...
-
Page 12: Ncc 警語
RTL8822BE User’s Manual NCC 警語 經型式認證合格之低 率射頻電機，非經許 ，公司 商號或使用者均不得擅自 變更頻率 大 率或變更原設計之特性及 能 低 率射頻電機之使用不得影響飛航安 及 擾合法通信 經發現有 擾現 象時，應立即停用，並改善至無 擾時方得繼續使用 前項合法通信，指依 電信法規定作業之無線電通信 低 率射頻電機須忍 合法通信或工業 科 學及醫療用電波輻射性電機設備之 擾 本模組於 得認證後將依規定於模組本體標示審合格籤，並要求 上標示 本產品 含射頻模組 ID編號 Japan Statement Host system must be labeled with "Contains MIC ID:xxxxxx“, MIC ID displayed on... - Page 13 RTL8822BE User’s Manual Installing the Wireless PCIe NGFF2230 module Hardware Installing PCIe NGFF2230 module to PCIe NGFF2230 connector and connect two external Wi-Fi antennas on I-PEX connectors.
- Page 14 RTL8822BE User’s Manual Un-installing the Wireless PCIe NGFF2230 module Hardware Remove 2 external Wi-Fi Antennas from the Wireless PCIe NGFF1630 module board and remove the Wireless PCIe NGFF2230 module board from PCIe NGFF2230 connector port...
- Page 15 RTL8822BE User’s Manual Installing the Wireless PCIe NGFF2230 module Software Before you proceed with the installation, please notice following descriptions. Note1: The following installation was operated under Windows 7. Note2: If you have installed the WLAN driver & utility before, please uninstall the old version first.
- Page 16 RTL8822BE User’s Manual C. Click Install this driver software anyway D. After step “C” please press Next button. E. Please click “YES” to install BT package.
- Page 17 RTL8822BE User’s Manual F. Please click “下一步”to continue. G. Please click “下一步”to continue.
- Page 18 RTL8822BE User’s Manual H. Please click “安装”to start installation. I. Please click “完成”to finish the installation.
- Page 19 RTL8822BE User’s Manual J. Press Finish button to complete the install process...
- Page 20 Un-installing the Wireless PCIe NGFF2230 module Software A. Uninstall the RTL8822BE WLAN Driver from “Start”→ “All Programs”→ “REALTEK 11ac 8822BE PCIE WLAN NIC Massproduction kit” Please click “Uninstall” to remove RTL8822BE WLAN driver.
- Page 21 NFA822B00 DataSheet Installing the Bluetooth USB Module Software A. Insert the NGFF2230 card into system connector. B. Boot on system then the “Geniric Bluttooth Adapter” device will show up in device manager. C. Click right button on “RT Bluetooth Radio” and select “Update Driver”. Page 21/25...
- Page 22 NFA822B00 DataSheet D. After select “Update Driver Software ” then the Hardware Update Wizard will pop up, please select “Browse my computer for driver software” and press Next button. E. After step “D” please Select “Let me pick from a list of device drivers on my computer ”.
- Page 23 NFA822B00 DataSheet F. Finish step “E” then select “Have Disk..” G. Now select browse to find the driver for device and press Next button.(The driver’s locate is the same with WiFi driver ) Page 23/25...
- Page 24 NFA822B00 DataSheet Page 24/25...
- Page 25 NFA822B00 DataSheet H. Then click “Install this driver software anyway” to continue. I. Press close button to complete the install process and you can see the Driver will be show up in Device Manager. Page 25/25...
