StarTech.com DKT31CHVL Quick Start Manual

USB-C™ 10Gbps Multiport Adapter | 4K HDMI or VGA | USB-C and USB-A | Extended Cable

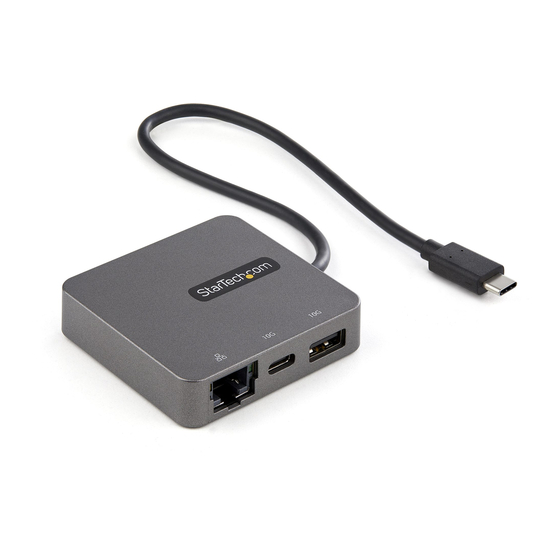

Product Diagram (DKT31CHVL)
1 2
6
Component
• Connect a HDMI Display Device to the Multiport
Adapter.
• Maximum Video Resolution = 3840 x 2160 /30Hz
(4k UltraHD)
1 HDMI Port
Note: Only one video output port can be used at a
time (HDMI or VGA). If two displays are connected,
the HDMI port takes priority and VGA is disabled.
• Connect a Display Device to the Multiport
Adapter.
2
VGA Port
• Maximum Video Resolution = 1920 x 1080 /60Hz
• Connect the Multiport Adapter to a Network
3
RJ45 Port
Device.
• Connect a USB Peripheral to the Multiport
4 USB-C Port
Adapter (flash drive, keyboard, etc.).
• Connect a USB Peripheral to the Multiport
5 USB-A Port
Adapter (mouse, keyboard, etc.).
• Connects the Multiport Adapter to a USB-C Port
6
USB-C Connector
on a Host Computer.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
3 4
Function
Requirements
For the latest requirements, please visit
Host
• Host Computer that is DP Alt Mode compatible
Cables
• CAT5e/6 Cable
• HDMI Cable
• VGA Cable
Display
• Display Device that is HDMI or VGA compatible
Connecting the Multiport Adapter
1. Connect an HDMI Cable (sold separately) to the HDMI Port on the Multiport
Adapter and the other end to an HDMI port on a Display Device.
- or -
2. Connect a VGA Cable (sold separately) to the VGA Port on the Multiport Adapter
and the other end to a VGA port on a Display Device.
Notes: Only one video output port can be used at a time (HDMI or VGA). If two displays
are connected, the HDMI port takes priority.
The Host Computer must support DP Alt Mode in order to connect a Display Device
to the Multiport Adapter.
3. Connect a Peripheral Device to the USB-C Port on the Multiport Adapter (e.g.
keyboard, flash drive, etc.).
4. Connect a Cat5e/6 Cable (sold separately) to the RJ45 Port on the Multiport
Adapter and the other end to a Network Device.
5. Connect the Multiport Adapter's built-in USB-C Cable to a USB-C port on a Host
Computer.
Powering the Multiport Adapter
The Multiport Adapter is bus-powered (powered by the Host Computer's USB-C
port) and does not require or support a separate power adapter.
Quick-Start Guide
www.startech.com/DKT31CHVL
Manual Revision: January 14, 2020 10:02 AM
