Room&Board HALE BED Assembly Instructions

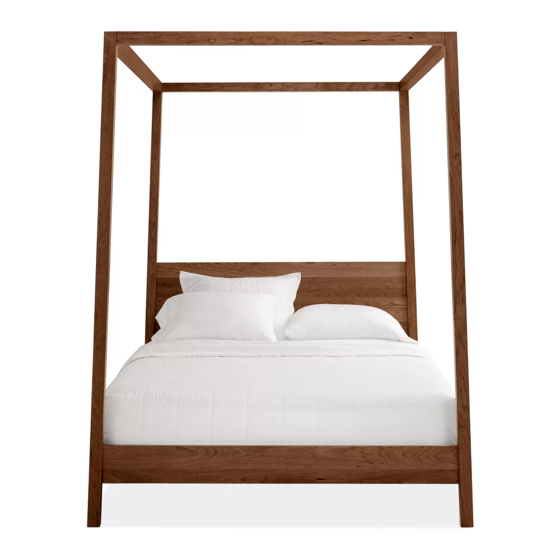

HALE BED

Recommended Tools and Materials

• Phillips screwdriver

Note: We recommend completing the assembly of this bed with two people.

A. Allen wrench

B. Upper headboard

C. Lower headboard

D. Headboard leg (x2)

800.486.6554 | roomandboard.com

E. Footboard

F. Footboard leg (x2)

G. Short canopy rail (x2)

H. Long canopy rail (x2)

ASSEMBLY INSTRUCTIONS

Keep these instructions for future use

I. Side rail (x2)

J. Steel bed slats

K. Cam lock bolts (x18)

6/28/21

Table of Contents

Do you have a question about the HALE BED and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS Keep these instructions for future use HALE BED Recommended Tools and Materials • Phillips screwdriver Note: We recommend completing the assembly of this bed with two people. This Product Includes A. Allen wrench E. Footboard I. Side rail (x2) B.
Page 2 Assemble the complete headboard by connecting the lower headboard, upper headboard and a short canopy rail to the two headboard legs. a. Using your Phillips head screwdriver, install 8 of the included cam lock bolts in the threaded inserts on the legs. b.
Page 3 Attach the side rails to the footboard assembly by inserting the male end of a side rail bracket into the female end of a leg bracket. Push downwards to lock into place. Connect the side rails to the headboard assembly by inserting the male end of a side rail bracket into the female end of a leg bracket.
Page 4 Attach the long canopy rails to the top of the bed. a. Using your Phillips head screwdriver, install 4 of the included cam lock bolts in the threaded inserts on the footboard assembly and headboard assembly. b Wood dowels already installed in the headboard assembly correspond to the holes of the adjoining pieces.
