Room&Board Choral Assembly Manual

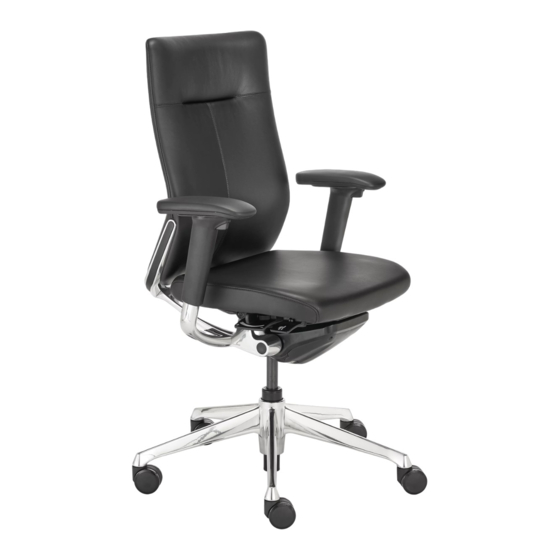

This is an assembly manual for the Choral chair.
Please read this document before assembling the chair.

Parts

Main body

Instructions

Gas cylinder
Gas cylinder
Base
Soft casters
(for hardwood
floors) - Qty 5
Main body
Assembly Manual
Base

STEP 1

1. Place the base on a flat surface.
2. Insert gas cylinder into the base as shown.
Ensure that the gas cylinder is placed straight down
into the base.

STEP 2

1. Attach the main body to the gas cylinder as shown.
Do not hold the arms of the main body. Hold the
parts indicated by the arrows in the figure.
Gas cylinder
