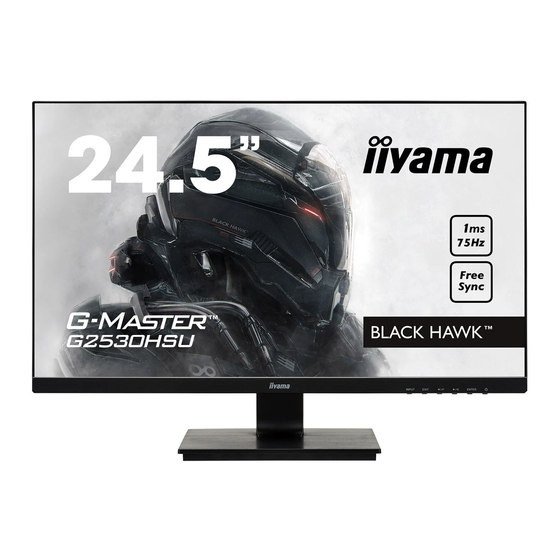

Iiyama G-MASTER G2530HSU User Manual

Iiyama G-MASTER G2530HSU User Manual

Hide thumbs Also See for G-MASTER G2530HSU:

Advertisement

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-MASTER G2530HSU and is the answer not in the manual?

Questions and answers

Summary of Contents for Iiyama G-MASTER G2530HSU

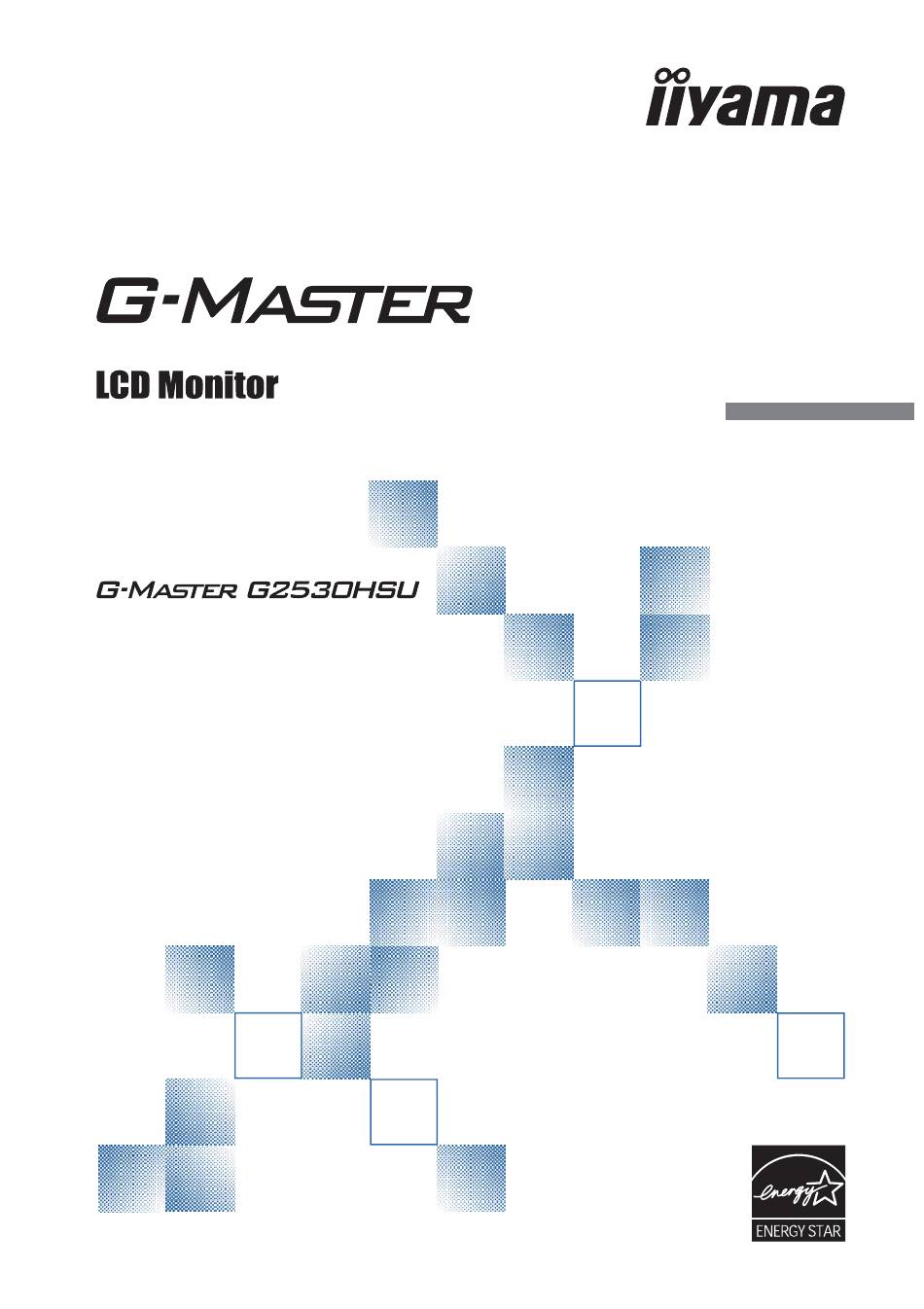

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
  • Page 4 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2530H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ..........8 COMPUTER SETTING ..............9...
  • Page 6: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
  • Page 8: Special Notes On Lcd Monitors

     If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.  For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it.
  • Page 9: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
  • Page 10: Wall Mounting

    WALL MOUNTING WARNING  When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.
  • Page 11: Fitting And Removal Of Base

    FITTING AND REMOVAL OF BASE  Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...
  • Page 12: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (ENTER) Scroll Down / Volume Button ( Scroll Up / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connector ( Keyhole for Security Lock...
  • Page 13: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.
  • Page 14: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 25: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle.
  • Page 15: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS.
  • Page 16: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Off / -2 / -1 / 0 / +1 / +2 Overdrive It will improve the gray level response time of the LCD panel. A higher level results in a faster response time.
  • Page 17 Input Select Adjustment Item Problem / Option Button to Press Select the Analog input. HDMI Select the Digital (HDMI) input. Input Select Direct DisplayPort Select the Digital (DisplayPort) input. Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA, HDMI and DisplayPort which NOTE are selected.
  • Page 18 Store User Setting Adjustment Item Problem / Option Button to Press User Mode 1 Save the settings of the screen adjustment. User Mode 2 Save the settings of the screen adjustment. Store User Setting User Mode 3 Save the settings of the screen adjustment. You can memorize your customized monitor settings.
  • Page 19 Image Adjust Adjustment Item Problem / Option Button to Press Return to a state set by color adjustment except Off i-Style Color. For general windows environment and monitor Standard default setting. Sport Game For Sports game environment. FPS Game For FPS game environment. i-Style Color * Strategy Game For Strategy game environment.
  • Page 20 OSD is too high You can set the OSD display duration time between OSD Time Out 5 and 30 seconds. iiyama Logo does not display when the monitor is Off turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
  • Page 21 Display Information Displays information regarding the current input signal coming from the graphic card in your computer. Display Information 1 9 2 0 x 1 0 8 0 @ 6 0 H z See your graphic card user guide for more information about changing the NOTE resolution and refresh.
  • Page 22 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
  • Page 23: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com).
  • Page 24 Pressing and holding of the INPUT Button for 2-3 seconds when the Menu is not displayed. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 25 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE  In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. ...
  • Page 26: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
  • Page 27: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...
  • Page 28: Recycling Information

    A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 23...
  • Page 29: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 25" Panel technology Size Diagonal: 24.5" (62.2cm) Pixel pitch 0.283mm H × 0.280mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time...
  • Page 30: Dimensions

    DIMENSIONS 557.5mm/21.9” 52.5mm/2.0” 552.5mm/21.8” 221.0mm/8.7” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz...
