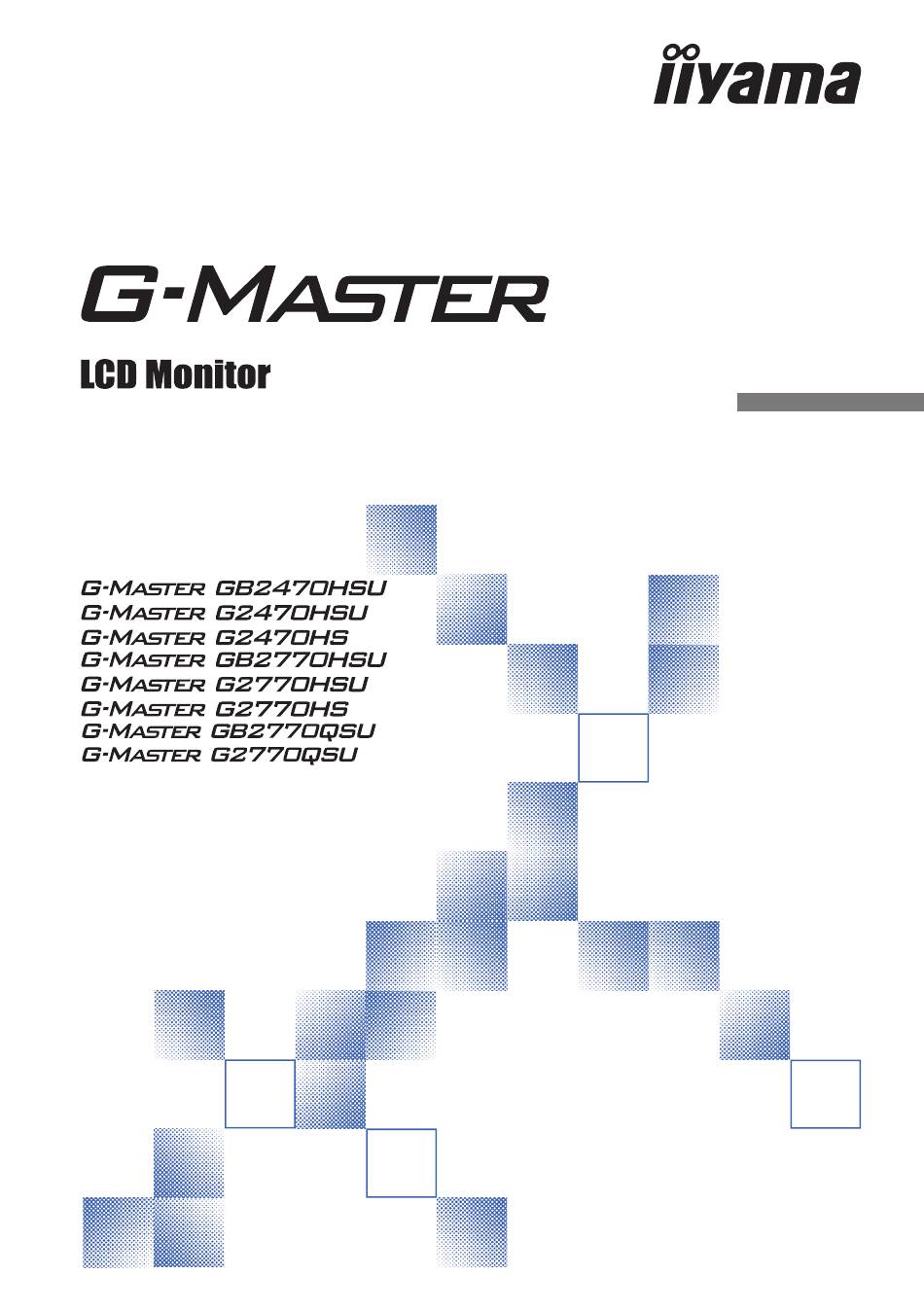

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future...
-
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2470H, PL2770H, PL2770Q We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: https://iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 USING ARM OR STAND ..............5 FITTING AND REMOVAL OF STAND : G-MASTER GB2470HSU / G-MASTER GB2770HSU / G-MASTER GB2770QSU ...............7 FITTING AND REMOVAL OF STAND : G-MASTER G2470HSU / G-MASTER G2470HS / G-MASTER G2770HSU / G-MASTER G2770HS / G-MASTER G2770QSU ..............8... - Page 5 STANDBY FEATURE ..............29 TROUBLE SHOOTING ..............30 RECYCLING INFORMATION .............31 APPENDIX ..................32 SPECIFICATIONS : G-MASTER GB2470HSU-B6 / W6 ....32 SPECIFICATIONS : G-MASTER G2470HSU-B6 / G2470HS-B1 ... 33 SPECIFICATIONS : G-MASTER GB2770HSU-B6 / W6 ....34 SPECIFICATIONS : G-MASTER G2770HSU-B6 / G2770HS-B1 ... 35 SPECIFICATIONS : G-MASTER GB2770QSU-B6 / W6 ....36...
-
Page 6: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 8: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 10: Using Arm Or Stand
USING ARM OR STAND CAUTION This product is designed for desktop use, not for digital signage (electronic signboard) applications such as ceiling hanging or wall mounting. Before installation, make sure the display arm or desk arm stand is strong enough to hold the necessary weight of the monitor and the mount. Panel angle adjustment range : 23°... -
Page 11: With Stand
[ROTATING THE MONITOR] ● G-MASTER GB2470HSU / G-MASTER GB2770HSU / G-MASTER GB2770QSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available... -
Page 12: Fitting And Removal Of Stand : G-Master Gb2470Hsu / G-Master Gb2770Hsu / G-Master Gb2770Qsu
FITTING AND REMOVAL OF STAND : G-MASTER GB2470HSU / G-MASTER GB2770HSU / G-MASTER GB2770QSU CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 13: Fitting And Removal Of Stand : G-Master G2470Hsu / G-Master G2470Hs / G-Master G2770Hsu / G-Master G2770Hs / G-Master G2770Qsu
FITTING AND REMOVAL OF STAND : G-MASTER G2470HSU / G-MASTER G2470HS / G-MASTER G2770HSU / G-MASTER G2770HS / G-MASTER G2770QSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. ... - Page 14 <Removal> Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. Keep pressing the Hooks inward to pull out the Stand-Base. Press the release button and remove the Stand-Neck from the monitor. Release Button Hooks BEFORE YOU OPERATE THE MONITOR 9...
-
Page 15: Controls And Connectors : G-Master Gb2470Hsu / G-Master Gb2770Hsu / G-Master Gb2770Qsu
CONTROLS AND CONNECTORS : G-MASTER GB2470HSU / G-MASTER GB2770HSU / G-MASTER GB2770QSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Standby mode S ignal Select / Exit Button (INPUT) * + / Volume Button ( + ) * – / i-Style Color Button ( – ) * Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 900mA) USB Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 900mA) -
Page 16: Controls And Connectors : G-Master G2470Hsu / G-Master G2470Hs / G-Master G2770Hsu / G-Master G2770Hs / G-Master G2770Qsu
CONTROLS AND CONNECTORS : G-MASTER G2470HSU / G-MASTER G2470HS / G-MASTER G2770HSU / G-MASTER G2770HS / G-MASTER G2770QSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Standby mode S ignal Select / Exit Button (INPUT) * + / Volume Button ( + ) * – / i-Style Color Button ( – ) * Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 900mA) USB Downstream Connector (... -
Page 17: Connecting Your Monitor : G-Master Gb2470Hsu / G-Master Gb2770Hsu / G-Master Gb2770Qsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 18: Connecting Your Monitor : G-Master G2470Hsu / G-Master G2470Hs / G-Master G2770Hsu / G-Master G2770Hs / G-Master G2770Qsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 19: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 41: COMPLIANT TIMING. ADJUSTING HEIGHT AND VIEWING ANGLE : G-MASTER GB2470HSU / G-MASTER GB2770HSU / G-MASTER GB2770QSU For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height... -
Page 20: Adjusting Viewing Angle : G-Master G2470Hsu / G-Master G2470Hs / G-Master G2770Hsu / G-Master G2770Hs / G-Master G2770Qsu
ADJUSTING VIEWING ANGLE : G-MASTER G2470HSU / G-MASTER G2470HS / G-MASTER G2770HSU / G-MASTER G2770HS / G-MASTER G2770QSU For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. -
Page 21: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 41. You are also able to adjust the picture by following the button operation shown below. -
Page 22: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust G-MASTER GB2470HSU PICTURE ADJUST PICTURE ADJUST INPUT SELECT CONTRAST BRIGHTNESS AUDIO ADJUST STORE USER SETTING OVERDRIVE COLOR SETTINGS ADV. CONTRAST IMAGE ADJUST LANGUAGE BLACK TUNER SETUP MENU DISPLAY INFORMATION GAMMA GAMMA3 RESET Adjustment Item Problem / Option... - Page 23 The availability of each item depends on which item is activated. See the Function Correlation Matrix below for more details. Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. Not available when Adaptive Sync is active.
-
Page 24: Input Select
Input Select G-MASTER GB2470HSU PICTURE ADJUST INPUT SOURCE Direct INPUT SELECT AUTO MANUAL AUDIO ADJUST MANUAL STORE USER SETTING HDMI SELECT COLOR SETTINGS SELECT IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Option Adjustment Item Search for an available input source and Auto select automatically. -
Page 25: Audio Adjust
Audio Adjust G-MASTER GB2470HSU PICTURE ADJUST VOLUME INPUT SELECT AUDIO ADJUST OPTIONS STORE USER SETTING MUTE COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Problem / Option Button to Press Too soft Direct Volume Too loud Turn off the sound temporarily. - Page 26 Store User Setting G-MASTER GB2470HSU PICTURE ADJUST STORE USER SETTING INPUT SELECT USER MODES USER MODE 1 AUDIO ADJUST STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Option User Mode 1 Save the settings of the screen adjustment.
-
Page 27: Color Settings
Color Settings G-MASTER GB2470HSU PICTURE ADJUST COLOR TEMPERATURE INPUT SELECT COOL NORMAL WARM AUDIO ADJUST 6-AXIS SATURATION STORE USER SETTING USER PRESET COLOR SETTINGS IMAGE ADJUST GREEN LANGUAGE BLUE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Problem / Option Button to Press... -
Page 28: Image Adjust
Image Adjust G-MASTER GB2470HSU PICTURE ADJUST IMAGE ADJUST INPUT SELECT I-STYLE COLOR AUDIO ADJUST X-RES TECHNOLOGY STORE USER SETTING SHARP AND SOFT COLOR SETTINGS HDMI RANGE FULL IMAGE ADJUST DIRECT DRIVE MODE LANGUAGE VIDEO MODE ADJUST FULL SETUP MENU DISPLAY INFORMATION... - Page 29 Image Adjust G-MASTER GB2470HSU PICTURE ADJUST IMAGE ADJUST INPUT SELECT I-STYLE COLOR AUDIO ADJUST X-RES TECHNOLOGY STORE USER SETTING SHARP AND SOFT COLOR SETTINGS HDMI RANGE FULL DIRECT DRIVE MODE IMAGE ADJUST LANGUAGE VIDEO MODE ADJUST FULL SETUP MENU DISPLAY INFORMATION...
- Page 30 Language G-MASTER GB2470HSU PICTURE ADJUST CHANGE LANGUAGE INPUT SELECT ENGLISH Italiano Português AUDIO ADJUST Deutsch Рyccкий STORE USER SETTING Español Nederlands Ĉesky COLOR SETTINGS Français Polski IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Option Nederlands Dutch English...
-
Page 31: Setup Menu
NOTE When the monitor is turned off, USB devices cannot be charged even when the USB BC function is on. Available for G-MASTER GB2470HSU / G-MASTER GB2770HSU / G-MASTER GB2770QSU only. The availability depends on which item is activated. See the Function Correlation Matrix below for more details. Not available for G-MASTER G2470HS / G-MASTER G2770HS. -
Page 32: Display Information
– – – Adaptive Sync : Available – : Not available Display Information G-MASTER GB2470HSU PICTURE ADJUST DISPLAY INFORMATION INPUT SELECT 1920 x 1080 144Hz HDMI AUDIO ADJUST STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU... -
Page 33: Lock Mode
● Lock Mode <OSD Menu> Hold the MENU button and turn on the monitor when the monitor is power-off, it will lock/unlock the OSD Lock function. <Power Switch / OSD Menu> Pressing and holding the MENU button for 5 seconds when Menu is not displayed, will lock/unlock the Power/OSD Lock function. 28 OPERATING THE MONITOR... -
Page 34: Standby Feature
STANDBY FEATURE This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 35: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 36: Recycling Information
RECYCLING INFORMATION For better environment protection please don’t dispose your monitor. Please visit our web site: https://iiyama.com for monitor recycling. RECYCLING INFORMATION 31... -
Page 37: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : G-MASTER GB2470HSU-B6 / W6 Size Category 24" Panel technology Fast IPS Size Diagonal: 23.8" (60.5cm) Pixel pitch 0.275mm H × 0.275mm V Brightness 300cd/m (Typical), 155cd/m (Default / Energy Saving) Panel Contrast ratio 1000 : 1 (Typical), Advanced Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT 0.2ms Display Colors Approx. 16.7M HDMI: Horizontal: 30.0-225.0kHz, Vertical: 48-180Hz... -
Page 38: Specifications : G-Master G2470Hsu-B6 / G2470Hs-B1
SPECIFICATIONS : G-MASTER G2470HSU-B6 / G2470HS-B1 Size Category 24" Panel technology Fast IPS Size Diagonal: 23.8" (60.5cm) Pixel pitch 0.275mm H × 0.275mm V Brightness 300cd/m (Typical), 155cd/m (Default / Energy Saving) Panel Contrast ratio 1000 : 1 (Typical), Advanced Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT 0.2ms Display Colors Approx. 16.7M HDMI: Horizontal: 30.0-225.0kHz, Vertical: 48-180Hz Sync Frequency DisplayPort: Horizontal: 250.0kHz, Vertical: 48-180Hz Native Resolution... -
Page 39: Specifications : G-Master Gb2770Hsu-B6 / W6
SPECIFICATIONS : G-MASTER GB2770HSU-B6 / W6 Size Category 27" Panel technology Fast IPS Size Diagonal: 27.0" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 300cd/m (Typical), 155cd/m (Default / Energy Saving) Panel Contrast ratio 1000 : 1 (Typical), Advanced Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT 0.2ms Display Colors Approx. 16.7M HDMI: Horizontal: 30.0-225.0kHz, Vertical: 48-180Hz Sync Frequency DisplayPort: Horizontal: 250.0kHz, Vertical: 48-180Hz Native Resolution... -
Page 40: Specifications : G-Master G2770Hsu-B6 / G2770Hs-B1
SPECIFICATIONS : G-MASTER G2770HSU-B6 / G2770HS-B1 Size Category 27" Panel technology Fast IPS Size Diagonal: 27.0" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 300cd/m (Typical), 155cd/m (Default / Energy Saving) Panel Contrast ratio 1000 : 1 (Typical), Advanced Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT 0.2ms Display Colors Approx. 16.7M HDMI: Horizontal: 30.0-225.0kHz, Vertical: 48-180Hz Sync Frequency DisplayPort: Horizontal: 250.0kHz, Vertical: 48-180Hz Native Resolution... -
Page 41: Specifications : G-Master Gb2770Qsu-B6 / W6
SPECIFICATIONS : G-MASTER GB2770QSU-B6 / W6 Size Category 27" Panel technology Fast IPS Size Diagonal: 27.0" (68.6cm) Pixel pitch 0.233mm H × 0.233mm V Brightness 400cd/m (Typical), 180cd/m (Default / Energy Saving) Panel Contrast ratio 1200 : 1 (Typical), Advanced Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT 0.2ms Display Colors Approx. 1.07G HDMI: Horizontal: 30.0-217.4kHz, Vertical: 48-180Hz Sync Frequency DisplayPort: Horizontal: 277.3kHz, Vertical: 48-180Hz Native Resolution... -
Page 42: Specifications : G-Master G2770Qsu-B6
SPECIFICATIONS : G-MASTER G2770QSU-B6 Size Category 27" Panel technology Fast IPS Size Diagonal: 27.0" (68.6cm) Pixel pitch 0.233mm H × 0.233mm V Brightness 400cd/m (Typical), 180cd/m (Default / Energy Saving) Panel Contrast ratio 1200 : 1 (Typical), Advanced Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT 0.2ms Display Colors Approx. 1.07G HDMI: Horizontal: 30.0-217.4kHz, Vertical: 48-180Hz Sync Frequency DisplayPort: Horizontal: 277.3kHz, Vertical: 48-180Hz Native Resolution... -
Page 43: Dimensions : G-Master Gb2470Hsu
DIMENSIONS : G-MASTER GB2470HSU 539.5mm / 21.2” 45.0mm / 1.7” 536.0mm / 21.1” 390.0mm / 15.4” ( ) : Maximum adjustment range DIMENSIONS : G-MASTER G2470HSU / G2470HS 539.5mm / 21.2” 45.0mm / 1.7” 536.0mm / 21.1” 38 APPENDIX... -
Page 44: Dimensions : G-Master Gb2770Hsu
DIMENSIONS : G-MASTER GB2770HSU 613.0mm / 24.1” 610.0mm / 24.0” 49.0mm / 1.9” 390.5mm / 15.4” ( ) : Maximum adjustment range DIMENSIONS : G-MASTER G2770HSU / G2770HS 613.0mm / 24.1” 49.0mm / 1.9” 610.0mm / 24.0” 349.0mm / 13.7” APPENDIX 39... -
Page 45: Dimensions : G-Master Gb2770Qsu
DIMENSIONS : G-MASTER GB2770QSU 613.0mm / 24.1” 50.0mm / 1.9” 610.0mm / 24.0” 390.5mm / 15.4” ( ) : Maximum adjustment range DIMENSIONS : G-MASTER G2770QSU 613.0mm / 24.1” 50.5mm / 1.9” 610.0mm / 24.0” 349.0mm / 13.7” 40 APPENDIX... -
Page 46: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz 1280 × 1024 79.976kHz 75.025Hz 135.000MHz 1680 × 1050 65.290kHz 60.000Hz 146.250MHz...
