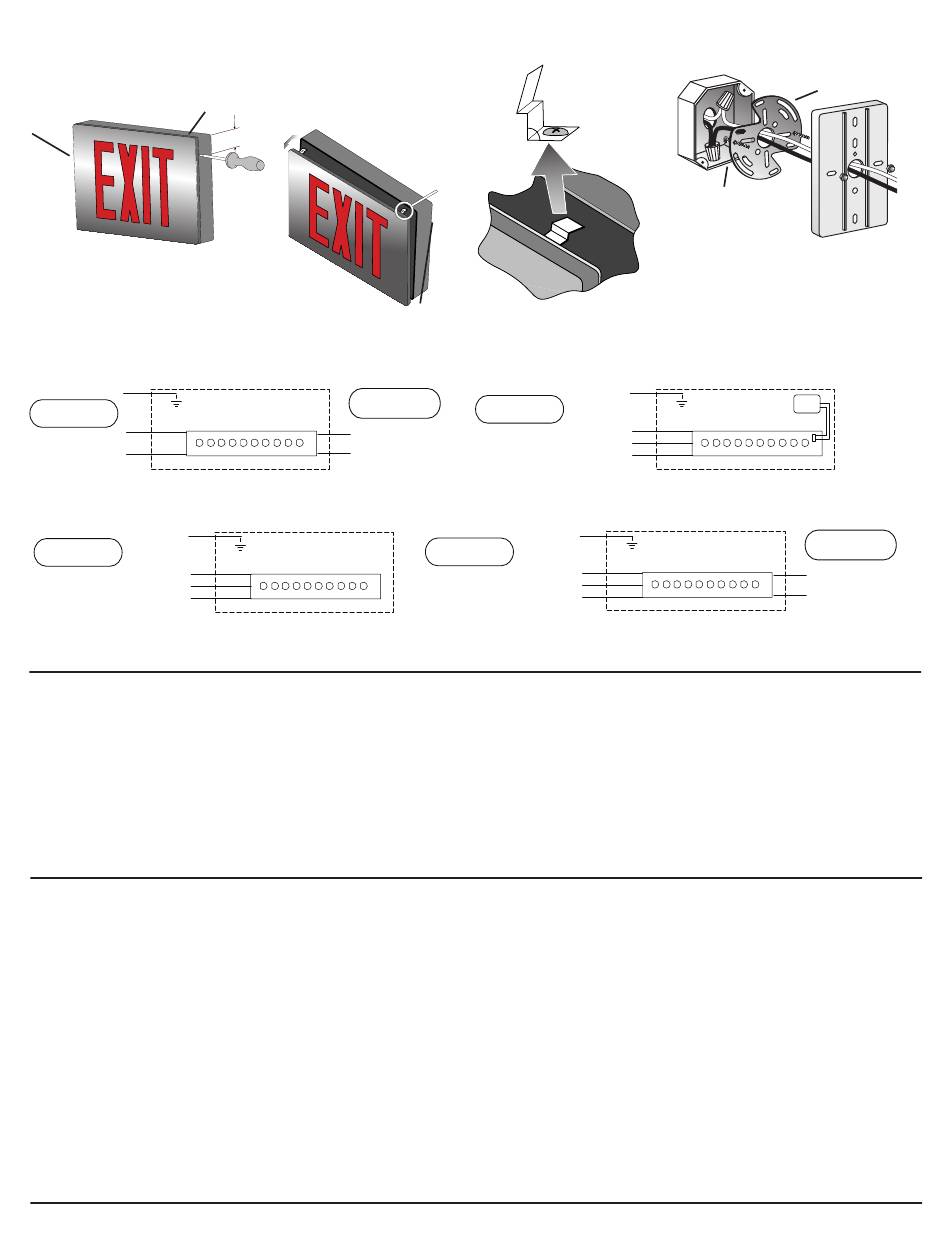

Figure 1
Frame
Faceplate
Insert screwdriver
inbetween faceplate
and exit frame
Figure 5
DUAL UNIVERSAL AC SIGN
GREEN Ground
24 hours
Chassis GND
Unswitched Supply
BLACK 105 to 360VAC
WHITE Neutral
GREEN Ground
24 hours
Unswitched Supply
BLACK 120VAC
RED 347VAC or ORANGE 200-277VAC
WHITE Neutral
1. Code requires that the equipment be tested every 30 days for 30 seconds, and that written records be maintained.
Further, the equipment is to be tested once a year for the duration required as per Code. The equipment is to be repaired
whenever the equipment fails to operate as intended during the duration test. Written records of test results and any
repairs made must be maintained. Beluce Canada Inc. strongly recommends compliance with all Code requirements.
2. Clean exit face(s) on a regular basis.
NOTE: The servicing of any parts should be performed by qualified service personnel only. The use of replacement
parts not furnished by Beluce Canada Inc., may cause equipment failure and will void the warranty.

EXIT SIGN DOES NOT COME ON AT ALL

1. Check AC supply and all AC connections - be sure exit has 24 hour AC supply (unswitched).
2. Check supply voltage and AC connections. The AC supply must be at least 80% of nominal (96V on a 120V line)
for equipment to function normally. At lower voltages the LEDs will begin to glow dimly until the source voltage
drops below the full "turn-on" point.
NOTE: This condition may also be caused by incorrectly connecting a 120 Volt supply line to the
277-Volt capacitor assembly lead.
3. AC supply is OK ; replace LED circuit board assembly.
Beluce Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000141
Figure 2
Pull hinged faceplate
down and open
3/4" to 1"
latch strike
From Generator OR
Emergency Supply
LED Board
BROWN 105 to 360VAC
BLUE Neutral
AC ONLY SIGN
Chassis GND
LED Board
NOTE: Cap unused AC Wire!

TROUBLESHOOTING

SAVE THESE INSTRUCTIONS
Figure 3
faceplate latch
strike remains
Faceplate
90°
GREEN Ground
24 hours
Unswitched Supply
BLACK 120VAC
RED 347VAC or ORANGE 200-277VAC
WHITE Neutral
GREEN Ground
24 hours
Unswitched Supply
BLACK 120VAC
RED 347VAC or ORANGE 200-277VAC
WHITE Neutral

MAINTENANCE

Figure 4
Ensure that
at 90°
Electrical
Junction Box
(supplied by
others)
SELF-POWERED SIGN
Chassis GND
LED Board
NOTE: Cap unused AC Wire!
AC & UNIVERSAL DC SIGN
Chassis GND
LED Board
NOTE: Cap unused AC Wire!
Universal
Spiderplate
Exit Canopy
Ni-Cd
Battery
Emergency Supply
FROM Battery Pack
YELLOW Positive 6 to 24VDC
PURPLE Negative
05/09/2019
