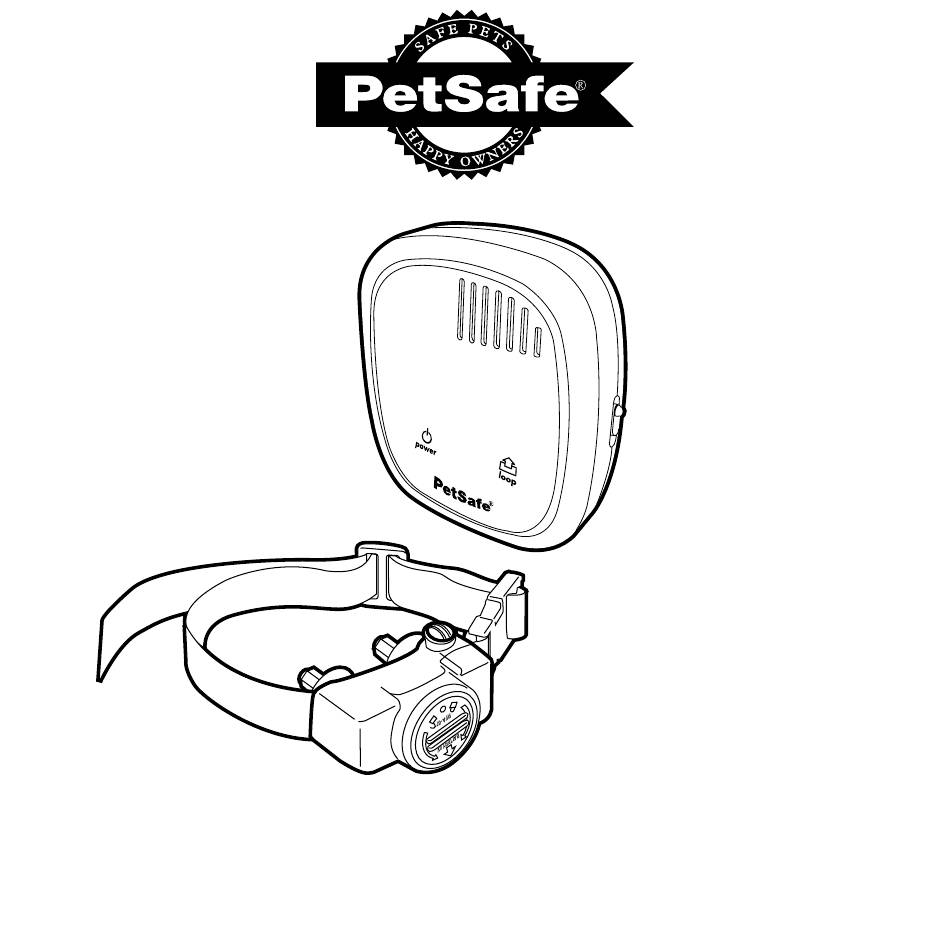

- Page 1 In-Ground Fence ™ ZIG00-14654 Product Manual Please read this entire Product Manual before beginning.
- Page 2 If you have any questions, please don’t hesitate to contact us. Hereinafter Radio Systems Corporation, Radio Systems PetSafe Europe Ltd., Radio Systems Australia Pty Ltd. And any other affiliate or brand of Radio Systems Corporation may be referred to collectively as “We” or “Us.”...
- Page 3 • For added protection, when unused for long periods of time or prior to thunderstorms, unplug from the wall outlet and disconnect the loop boundary wires. This will prevent damage to the transmitter due to surges. petsafe.com...
-
Page 4: Table Of Contents
Table of Contents Components ....................................5 Other Items You May Need ................................5 How the System Works ................................. 6 Key Definitions ....................................6 Operating Guide ...................................7 Locate the Fence Transmitter ............................... 7 Lay Out the System..................................8 Position the Boundary Wire ................................10 Connect the Wires to the Surge Protector and Fence Transmitter ...................11 Prepare the Receiver Collar ................................14 Set the Boundary Width and Test the Receiver Collar ......................16... -

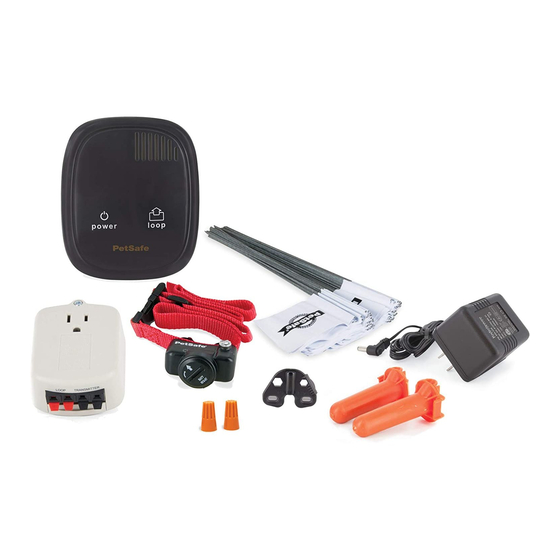

Page 5: Components
• Shovel or lawn edger • PVC pipe or water hose • Pliers • Circular saw with masonry blade • Wire stripping pliers • Staple gun • Scissors • Non-metallic collar and leash • Lighter Fence installation and training help: petsafe.com petsafe.com... -
Page 6: How The System Works
If he proceeds further, he receives a safe but startling Static Correction. While harmless, the correction will persuade him to stay in the containment area you’ve established. Boundary flags are a temporary visual aid for your pet; remove them after training. This PetSafe In-Ground Fence system has been proven safe, comfortable, and ®... -
Page 7: Operating Guide
Make sure the Boundary Wire is not cut off or pinched by a window, door, or garage door, as this can damage it over time. To prevent fires and electrical hazards, install the Fence Transmitter in buildings that are in accordance with state and local electrical codes. 3ft. petsafe.com... -
Page 8: Lay Out The System
Step Lay Out the System Basic Planning Tips Underground cables can carry high voltage. Have all underground cables marked before you dig to bury your wire. In most areas this is a free service. Avoid these cables when you dig. For information regarding how these underground wires can affect your system’s operation, see Step 3 Position the Boundary Wire. - Page 9 B, B to C, C to D, D to E, E to F, make a U-turn and follow your path all the way back to A, keeping the wire separated at least 5 feet. Twist the wire from A back to the Fence Transmitter. See the “Install the Boundary Wire” section for more information on attaching the wire to a fence. petsafe.com...
-
Page 10: Position The Boundary Wire
Step Position the Boundary Wire Lay out the Boundary Wire using your planned boundary and test the system BEFORE burying the wire or attaching it to an existing fence. This will make any layout changes easier. Work carefully. A nick in the wire insulation can diminish the signal strength and create a weak area where your pet can escape. -
Page 11: Connect The Wires To The Surge Protector And Fence Transmitter
Transmitter. ALWAYS use a grounded (3-prong) outlet to ensure maximum protection. • Do not remove the ground prong from the Surge Protector plug. Do not use a 3-prong plug to 2-prong outlet converter. Doing so will make the Surge Protector ineffective against surges or spikes. petsafe.com... - Page 12 1. Turn the power OFF to the outlet that the Surge Protector Fence Transmitter and Fence Transmitter will be plugged into. 2. We recommend that, if possible, use the outlet center Loop Power screw that holds the cover plate in place to secure the Transmitter Adapter Surge Protector to the outlet.
- Page 13 For added protection, when unused for long periods of time or prior to thunderstorms, unplug from the wall outlet and disconnect the loop boundary wires. This will prevent damage to the transmitter due to surges. petsafe.com...
-
Page 14: Prepare The Receiver Collar
Check the tightness weekly. To Insert and Remove the Battery Note: Do not install the battery while the Receiver Collar is on your pet. This Receiver Collar utilizes a replaceable PetSafe battery (RFA-67). This unique battery is ®... - Page 15 Receiver Collar Function 1 Flash No Static Correction, Tone Only 2 Flashes Low Static Correction 3 Flashes Medium Static Correction 4 Flashes Medium High Static Correction 5 Flashes High Static Correction Flashes once every Indicates Low Battery 4 to 5 seconds petsafe.com...
-
Page 16: Set The Boundary Width And Test The Receiver Collar
Step Set the Boundary Width and Test the Receiver Collar With the Boundary Wire in place and properly connected, it is time to set the containment field and test the system. The Receiver Collar should NOT be on your dog when the system is tested. Note: The Receiver Collar is waterproof, which can make the tone hard to hear. - Page 17 Test Light should flash brighter as you enter the run-through area (6G). If you are satisfied that your system is functioning properly, you are ready to start burying the Boundary Wire. If the Receiver Collar did not tone or the Test Light did not flash, see the “Troubleshooting” section. petsafe.com...
-
Page 18: Install The Boundary Wire
3. Use a blunt tool such as a wooden paint stick to push the Boundary Wire into the trench. Be careful not to damage the Boundary Wire insulation. To Attach the Boundary Wire to an Existing Fence The Boundary Wire of the PetSafe In-Ground Fence ®... -
Page 19: Place The Boundary Flags
Note: If you cannot hear the beep, see the Test Light Instructions in Step 6. To prevent an unintended correction, after the Boundary Flags have been placed, be sure to set the static correction on the Receiver Collar back to level 1 Tone Only. petsafe.com... -
Page 20: Fit The Receiver Collar
1. Make sure that the battery is not installed in the Receiver Collar. 2. Start with your pet standing comfortably (9A). 3. Place the Receiver Collar on your pet so that the “PetSafe ” logo is facing your pet’s chin. -
Page 21: Training Guide
• While your pet is still learning the boundary, contain him by another means, such as with a pen or a leash. • Put a separate non-metallic collar on your pet’s neck and attach a leash. • Be sure to place the collar on your dog’s neck with the PetSafe logo facing up. -
Page 22: Day 1
Day 1 For the first day, start with the collar set to level 1, tone-only. With your pet on a leash and with his favorite treats on hand, allow him to explore the Pet Area (10A). Allow your pet to cross the boundary (10B) and hear the tone from the collar, then ask him to come back into the Pet Area (10C) and praise and reward him. -
Page 23: Days 9 Thru 30
Note: You may also carry your pet out of the Pet Area. Congratulations! You have now completed the training program. You are both ready to enjoy more freedom. Just make sure to continue to check the tightness of the Receiver Collar and remove it when it is not in use. petsafe.com... -
Page 24: Additional Information
• Remove the Receiver collar from your pet when indoors for the comfort of your pet. • Never leave the Receiver Collar on your pet for more than 12 consecutive hours. Accessories To purchase additional accessories for your PetSafe In-Ground Fence system, contact the Customer Care Center ®... -
Page 25: Troubleshooting
• Perform the “System Test” (page 27) to determine if the Fence Transmitter or Surge Protector loop alarm is sounding. needs to be replaced. • If the Fence Transmitter is functioning properly, you have a break in your Boundary Wire. See the “Wire Break Location Test” (page 28) section in this guide. petsafe.com... -
Page 26: System Test
System Test The system test is used to determine the cause of system problems that have not been addressed elsewhere in this guide. You will need a piece of Boundary Wire greater than 15 feet long with ⁄ inch of insulation removed from each end to use as a test loop wire. -
Page 27: Wire Break Location Test
9. Replace the damaged Boundary Wire with new Boundary Wire. 10. Reconnect the Boundary Wire to the Surge Protector. 11. Check the Loop Indicator Light. If the Loop Indicator Light is ON, test the system with the Receiver Collar. petsafe.com... -
Page 28: Terms Of Use And Limitation Of Liability
At the end of the product life, please contact our Customer Care Center to receive instructions on proper disposal of the unit. Please do not dispose of the unit in household or municipal waste. For a listing of Customer Care Center telephone numbers in your area, visit our website at www.petsafe.com. Important Recycling Advice Please respect the Waste Electrical and Electronic Equipment regulations in your country. -
Page 29: Compliance
Monday – Friday 8 AM - 8 PM / Saturday 9 AM – 5 PM Australia - Tel: 1800 786 608 Monday – Friday 8:30 AM – 5 PM New Zealand - Tel: 0800 543 054 Monday – Friday 10:30 AM – 7 PM petsafe.com... -
Page 30: Warranty
This Product has the benefit of a limited manufacturer’s warranty. Complete details of the warranty applicable to this Product and its terms can be found at www.petsafe.com and/ or are available by contacting your local Customer Care Center. United States and Canada – Radio Systems Corporation, 10427 PetSafe Way, Knoxville, TN 37932 USA Australia/New Zealand –... -
Page 31: Layout Grid
Layout Grid petsafe.com... -
Page 32: Mounting Template
Mounting Template Drill Here 3.000 in. 3 in. (7.62 cm) Drill Here Radio Systems Corporation 10427 PetSafe Way Knoxville, TN 37932 +1 (800) 732-2677 petsafe.com YU400-1781/2 ©2020 Radio Systems Corporation...
