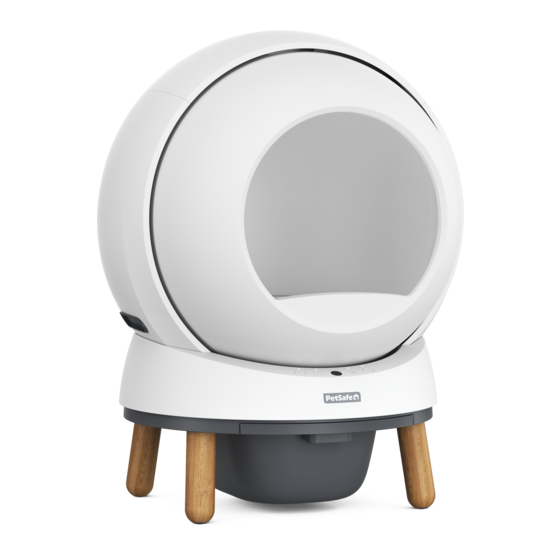

Summary of Contents for Petsafe ScoopFree SmartSpin Self-Cleaning Litter Box
- Page 1 User Guide...
-
Page 2: Before We Start
ScoopFree SmartSpin ™ ™ Self-Cleaning Litter Box Before we start: As you set up your new litter box, keep in mind: Some cats need While many cats take to their new and improved litter box right away, others take a little longer. -
Page 3: What You Have
What you have: Litter saver Sphere front Sphere back Floor pad Litter sifter Base Cover Legs (center panel) Bracket Cover (side panels) Waste drawer Waste bags Waste drawer Red alignment tool Screws Screwdriver Gloves Power adaptor deodorizers What you need: •... - Page 4 Set up your new litter box Assemble the base Place the base upside down on the floor or another flat Turn the base right side up and place it on the floor. Make surface. To prevent scratching the top of the base, place a sure the base is sitting level and not wobbling.
- Page 5 Remove the seal from the waste drawer deodorizer Slide the waste drawer into the base. and insert it into the compartment at the front of the waste drawer. Line the waste drawer with one of the waste bags provided. Secure the front edge of the waste bag in the slots at each side of the waste drawer.
- Page 6 Assemble the sphere Place the sphere front on the floor or another flat surface. To Insert the litter saver into the sphere front, matching the A sticker on the litter saver to the A sticker on the inside of the prevent scratching the sphere front, place a plastic bag from the packaging underneath it.
- Page 7 Insert the floor pad into the sphere front, matching the B Insert the red alignment tool into the hole at the top edge of sticker on the floor pad to the B sticker on the inside of the the litter saver. sphere front.
- Page 8 Place the sphere back on the sphere front, making sure the Secure the two halves of the sphere together using the floor pad remains in position and the red alignment tool lines screwdriver and 8 screws provided. up with the hole in the sphere back. Start with the first screw, then move to the one on the When the sphere back is placed correctly, the red alignment opposite side, working your way in a criss-cross pattern until...
- Page 9 Install the litter sifter Position the assembled sphere with the large opening at Rotate the front of the litter sifter upward and snap it into the the front. clip at the front of the sphere. Insert the post at the back of the litter sifter (marked with a C The litter sifter is now installed.
- Page 10 Place the sphere on the base Latch Knob On the base, open the latch at the top of the bracket. Place the assembled sphere on the base, positioning the knob on the back of the sphere within the latch you just opened.
- Page 11 Assemble the cover The cover is made up of three panels: one center panel and Line up the E sticker on the remaining side panel with the E two side panels. sticker on the center panel. Connect the center panel to the side panel by inserting the tabs on the center panel into the Line up the D sticker on one of the side panels with the D corresponding slots on the side panel.
- Page 12 Install the cover Plug in the litter box Place the cover down over the sphere, making sure the Place the assembled litter box in a clean, dry location near an arrows on the sticker are facing the front of the litter box. electrical outlet and within range of your home’s Wi-Fi.
- Page 13 Add litter Download the app and connect Press and hold the cleaning button for 3 seconds to enter Scan the QR code above to download the PetSafe ® Add Litter mode. The numeric status display will display an A SmartSpin app.
- Page 14 How the litter box works Once you’ve connected the litter box to the app, it’s ready to use. Here’s how it works: • A weight sensor inside the litter box recognizes when your cat is present. The cat entry light will illuminate Sphere when a weight change of more than 2.5 pounds (1.1 kg) is detected.
- Page 15 Control panel lights and buttons The lights and buttons on the litter box control panel provide system status and allow you to control some litter box functions: Wi‑Fi Cleaning Light Meaning light light Wi-Fi light • Solid white: The litter box is connected to Cat entry Waste drawer Wi-Fi.
- Page 16 Empty the waste drawer and add fresh litter You can expect to empty the waste drawer about once a week for one cat, twice a week for two cats, or every few days for three or more cats. When the waste drawer is full, you will receive a notification in the app and the waste drawer full light will illuminate.
- Page 17 Clean the litter box When it’s time to give the litter box a deeper cleaning: Latch Knob Unplug the litter box and disconnect the power adaptor. Open the latch at the back of the sphere. Remove the cover. Lift the sphere off the base. Important: When replacing the cover, make sure the arrows on the sticker (or etched inside the cover) are facing the front of the litter box.
- Page 18 Pour all of the litter out of the sphere and into a trash can or Remove the litter sifter from the sphere and wash it with garbage bag. warm soapy water. Empty the waste drawer and remove the waste drawer Using a cloth or sponge, mild soap, and water, wipe the deodorizer.
- Page 19 Important: The base contains the litter box’s electronic Allow all components to dry thoroughly before reassembling components and is not waterproof. Do not rinse the base, the litter box. submerge it in water, or spray it with any cleaning solutions. Important: When replacing the cover, make sure the arrows Use a dry or very slightly damp cloth to wipe the base.
-
Page 20: We're Here To Help
Suite 11001 Australia Fair Office Towers Knoxville, TN 37932 USA Dundalk, Co. Louth, A91 YR9X Ireland 36 Marine Parade, Southport, QLD 4215 +1 (865) 777-5404 +353 (0) 42 942 4122 +61 1800 786 608 PAL00-17985, ZAL10-17986 ©2024 Radio Systems Corporation | petsafe.com...
Need help?
Do you have a question about the ScoopFree SmartSpin Self-Cleaning Litter Box and is the answer not in the manual?
Questions and answers
How do I clean out the mechanism that rotates the sphere? There is litter dust in it.
To clean the mechanism of the Petsafe ScoopFree SmartSpin Self-Cleaning Litter Box that rotates the sphere:
1. Unplug the litter box and disconnect the power adapter.
2. Open the latch at the back of the sphere and remove the cover.
3. Lift the sphere off the base to access internal components.
4. Pour out all litter and remove the litter sifter.
5. Wipe the interior and exterior surfaces of the sphere using a cloth or sponge with mild soap and water.
6. Do not use bleach or harsh chemicals.
7. If further cleaning is needed, disassemble the sphere and wash the sphere halves, floor pad, and litter saver with warm soapy water.
Make sure components are dry before reassembly.
This answer is automatically generated
I’m getting notifications that the waste box is full and it is not
The PetSafe ScoopFree SmartSpin Self-Cleaning Litter Box may show a full waste box notification when it is not full due to sensor issues or incorrect detection. Possible reasons include:
1. Sensor Obstruction – Litter or debris may be blocking the sensor, causing false readings.
2. Misalignment – The waste bin or liner may not be properly positioned, affecting sensor accuracy.
3. Software Glitch – The app or system may have an error, requiring a reset or firmware update.
4. Overuse Detection – Frequent usage might trigger the notification even if the bin is not full.
To resolve the issue, check and clean the sensors, ensure the waste bin is correctly installed, and restart the system if needed.
This answer is automatically generated
Waste bin full light always on and it’s not cleaning
When doing a cleaning cycle and returning to normal position, my litter box over rotates back and continues to try rotating, make it go beyond the end of the track and make a loud sound each time it falls backwards. After about 10 of these loud sounds it gives an error #4 saying the sphere is missing. What gives?
