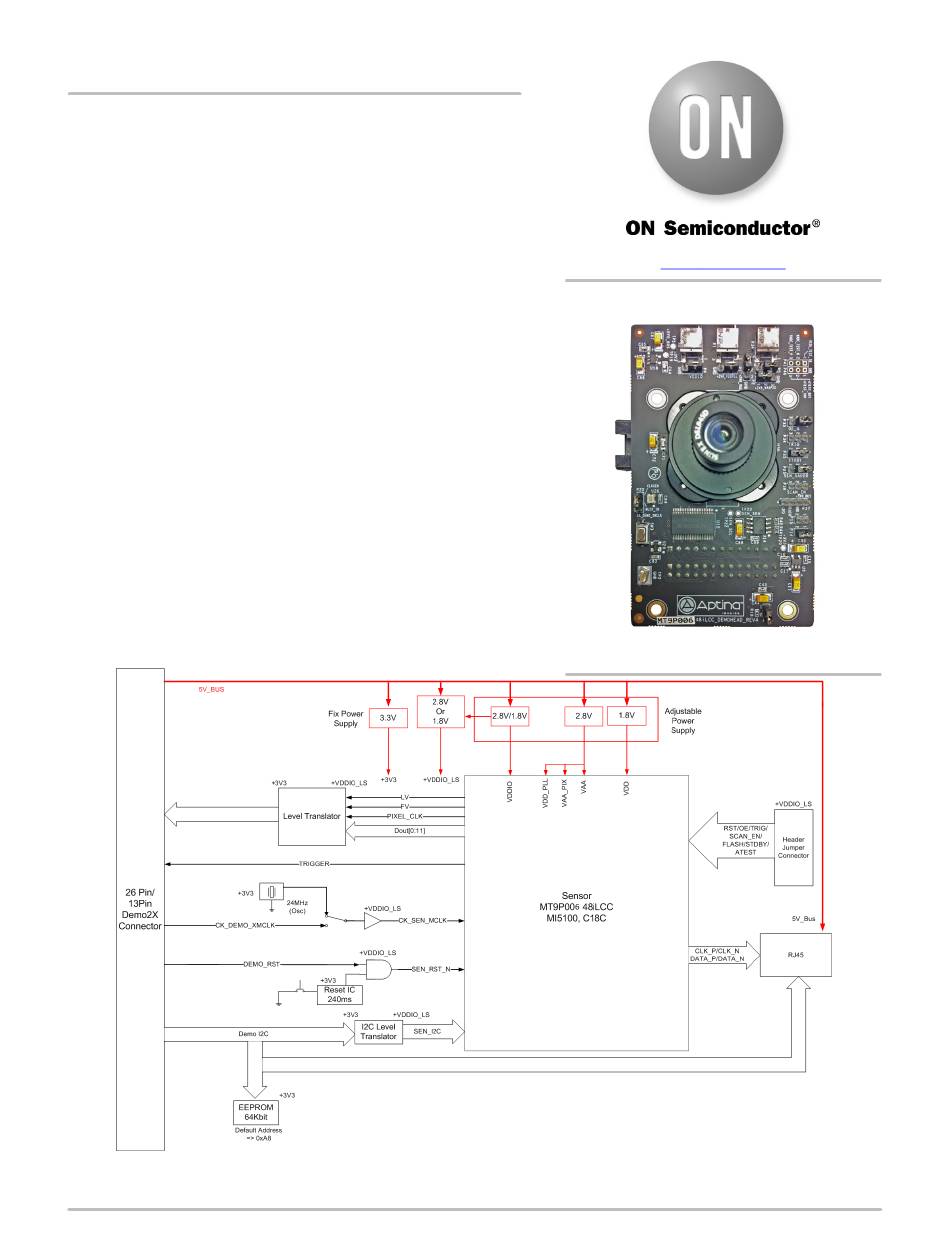

MT9P006I12STCUH-GEVB
MT9P006 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled Mclk
Two Wire Serial Interface
Selectable base address
Parallel Interface
Serial LVDS Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9P006I12STCUH−GEVB
EVAL BOARD USER'S MANUAL

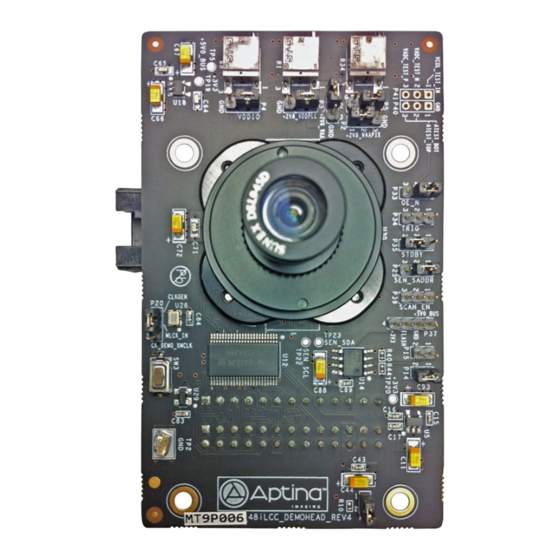

Figure 1. MT9P006 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2445/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9P006 and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9P006

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
  • Page 2 MT9P006I12STCUH−GEVB Top View VDDPLL P3 VAA P1 VDD P5 VDDIO P4 VAAPIX P2 OE_N P33 TRIGGER P34 STANDBY P35 SEN_SADDR P25 SCAN_EN P39 CLKGEN P20 FLASH P37 EEPROM P14, P15 RESET Switch SW3 ON_LED P11 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View Serial LVDS Connector J3 Baseboard Connector P36...
  • Page 3 MT9P006I12STCUH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 When pushed, 240 ms reset signal will be sent to MT9P006 Interfacing to ON Semiconductor Demo 2X Baseboard Table 2. SHORTED JUMPERS FOR POWER The ON Semiconductor Demo 2X baseboard has a MEASUREMENTS similar 26-pin connector and 13-pin connector which mate Jumper Voltage (V) with P9 and P36 of the headboard.
  • Page 5 LIMITATIONS OF LIABILITY: ON Semiconductor shall not be liable for any special, consequential, incidental, indirect or punitive damages, including, but not limited to the costs of requalification, delay, loss of profits or goodwill, arising out of or in connection with the board, even if ON Semiconductor is advised of the possibility of such damages. In no event shall ON Semiconductor’s aggregate liability from any obligation arising out of or in connection with the board, under any theory of liability, exceed the purchase price paid for the board, if any.
