iDISPLAY 15.6" Display
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDISPLAY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outform iDISPLAY

Summary of Contents for Outform iDISPLAY

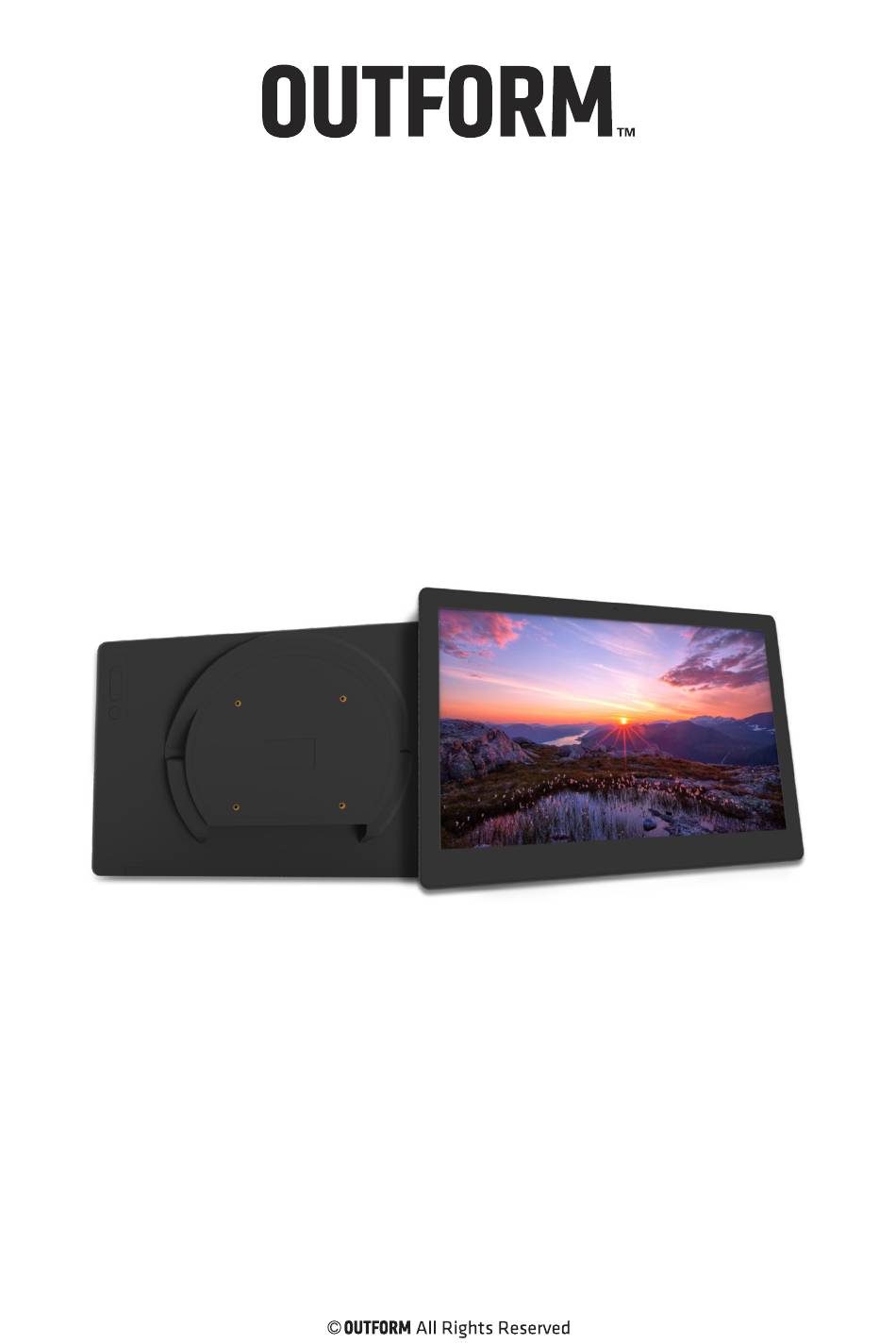

  • Page 1 15.6” Display User Manual...

  • Page 2: Table Of Contents

    Table of Contents About This Guide ................2 Introducing the iDISPLAY 15.6” GEN 5 ..........2 Important Notices ................3 Copyright Information..............3 Safety and Warning Information .............4 Package Contents ................5 Quick Start User Guide ..............7 Setting up the Tablet Hardware ............7 Playing Videos and Displaying Images ..........7...

  • Page 3: About This Guide

    Introducing the iDISPLAY 15.6” GEN 5 The iDISPLAY 15.6” GEN 5 is interactive digital display designed to be used in commercial environments, and includes the following features: •...

  • Page 4: Important Notices

    Copyright Information Copyright © 2021 Outform. All rights reserved. All intellectual property rights in this publication are owned by Outform and protected by applicable copyright laws and international treaty provisions. Outform retains all rights not expressly granted. No part of this publication may be reproduced in any form whatsoever or used to make any derivative work without prior written approval by Outform.

  • Page 5: Safety And Warning Information

    Important Notices Safety and Warning Information NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC power supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V.

  • Page 6: Package Contents

    Package Contents The package contains the following items: 15.6” Shown Display Tablet Power Adapter Power Cable USB Mini Mouse (US, UK, or EU) (Included with advertising displays only)
  • Page 7 15.6” Display Exterior Components Top View Front View 8 10 Bottom View Description DC 12V Port 5.5x2.1 mm Type-C OTG 3.5 mm Audio Port HDMI Output TF-Card Slot Sim Card Slot USB 2.0 OTG Port Reset Key USB 2.0 OTG Port Ethernet RJ45 Port Volume Button V+ Volume Button V-...

  • Page 8: Quick Start User Guide

    Quick Start User Guide This section describes how to set up and use the iDISPLAY tablet for the first time. The tablet runs OUTFORM’s Pulse Player software by default, which runs on an Android operating system installed in the player to play the desired content.

  • Page 9: Supported File Formats

    Quick Start User Guide Supported File Formats The tablet supports the following file formats: • Standard Android applications (APK files) supported by Android 5.1 and more recent versions • Video formats: 3gp / mp4 / avi / mkv / flv / mov / rm / rmvb •...

  • Page 10: Pulse Player Settings

    Pulse Player Settings The following table describes the Pulse Player settings. For more information on how to use the underlying Android operating system, refer to the following section. Setting Description Software Update Check for available Pulse Player software updates. This requires an Internet connection.
  • Page 11 “OFF” keeps the screen oriented in the default landscape display orientation. Note that this option only works for iDISPLAY tablets, and does not affect the use of the media player set-top box.
  • Page 12 Pulse Player Settings Setting Description Log Option “ON” enables recording Pulse Player log messages to a log file stored in the internal device memory. If this setting is enabled, the log file “PulsePlayer_Log.txt” is created and stored in the top-most directory of the device’s internal memory, which can be accessed through the “Explorer”...
  • Page 13 Configure a daily reboot time to ensure Pulse Player and the underlying Android operating system memory is regularly cleared and refreshed so as to maintain good playback performance for extended periods of time. OUTFORM recommends scheduling a daily reboot time when no customers are expected to use the device.

  • Page 14: Using The Android Operating System

    The applications menu contains commonly used Android applications and tools. The following three applications most relevant to using your iDISPLAY device are described below: PulsePlayer Opens and runs the Pulse Player software to play interactive content.

  • Page 15: Configuring The Android Operating System Settings

    Using the Android Operating System Configuring the Android Operating System Settings Tap on the “Settings” icon to configure the following three relevant Android system settings: Connecting to a Wireless Network The preselected item on the left hand settings menu is “Wi-Fi”. To enable wireless connections, drag the “Wi-Fi”...

  • Page 16: Using Pulse Management

    Using Pulse Management Pulse Management is an additional subscription-based feature that can be used to remotely control iDISPLAY devices. When connecting to the Internet, the Pulse Management app automatically connects to the service’s servers, as is indicated by the “Registering Device” message that briefly appears. If connecting to the Internet for the first time, a prompt appears requesting device administrator activation.

  • Page 17: Troubleshooting

    Ensure the configured URL is correct in the Pulse Player settings. Also, do not include “http://” at the beginning of the URL. When I insert a USB drive into my iDISPLAY device, the system does not automatically prompt me to load my content onto the device.
  • Page 18 Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product allowed to be used in all EU member states. Use the iDISPLAY 15.6" Display in the environment with the temperature between 0℃ and 40℃, Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss.
  • Page 21 For additional assistance, visit outformsupport.com.
