iDISPLAY 4K Media Player
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDisplay and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outform iDisplay

Summary of Contents for Outform iDisplay

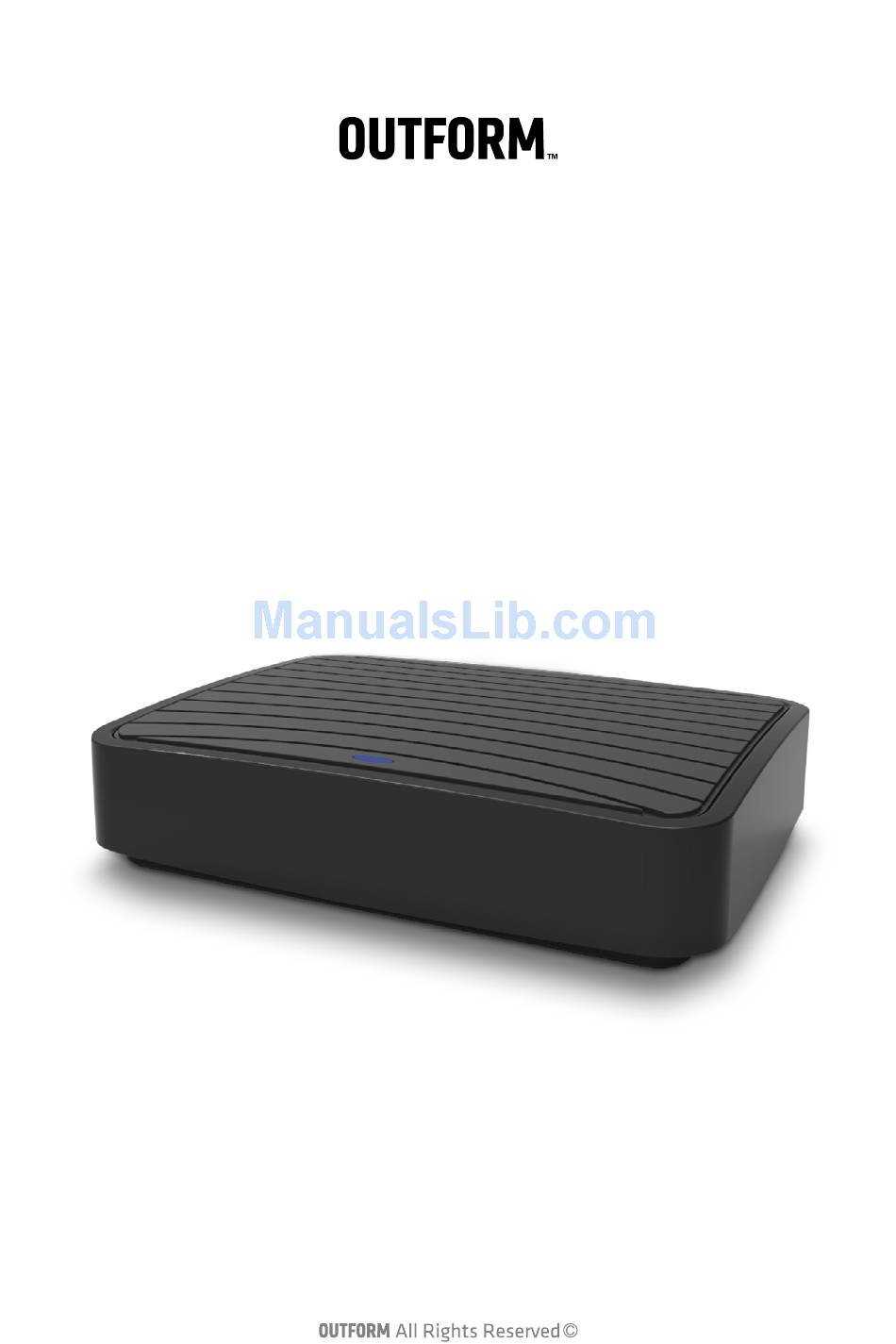

  • Page 1 4K Media Player User Manual...

  • Page 2: Table Of Contents

    Table of Contents About This Guide Introducing the iDISPLAY 4K Media Player Important Notices Copyright Information Safety and Warning Information Package Contents Quick Start User Guide Setting up the Media Player Hardware Playing Videos and Displaying Images Supported File Formats...

  • Page 3: About This Guide

    Introducing the iDISPLAY 4K Media Player The iDISPLAY 4K Media Player is a digital display set-top box designed to incite customer engagement with select products and services through interactive digital media. The player is powered by the Pulse technology platform, exclusive OUTFORM technology that integrates hardware and software to create a comprehensive “out-of-the-box”...

  • Page 4: Important Notices

    Copyright Information Copyright © 2015 OUTFORM. All rights reserved. All intellectual property rights in this publication are owned by OUTFORM and protected by applicable copyright laws and international treaty provisions. OUTFORM retains all rights not expressly granted. No part of this publication may be reproduced in any form whatsoever or used to make any derivative work without prior written approval by OUTFORM.

  • Page 5: Safety And Warning Information

    Safety and Warning Information NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC mains supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V.

  • Page 6: Package Contents

    Package Contents The following items are included in the packaging: iDISPLAY 4K Media Player Set-Top Box USB Cable Power Supply Cable USB Mouse...
  • Page 7 4K Media Player Top View Bottom View Power Supply Indication LED Wall Hook Slots Rear View Description of Rear View Components Label Description RJ45/Ethernet port OPTICAL Fiber optic digital sound port HDMI HDMI port Micro SD Micro SD slot USB OTG USB “On-The-Go”...

  • Page 8: Quick Start User Guide

    Quick Start User Guide This section describes how to set up and use the iDISPLAY 4K Media Player for the first time. The media player runs OUTFORM’s Pulse Player software by default, which runs on an Android operating system installed in the player to play the desired content.

  • Page 9: Supported File Formats

    NOTE: When auto-copying files from a Linux or MAC OS-based computer, hidden metadata files, preceded by a period “.”, may also get copied into the “0” folder on the USB drive. When Pulse Player attempts to play or display these files, a black screen is shown momentarily.

  • Page 10: Pulse Player Settings

    Pulse Player Settings The following table describes the Pulse Player settings. For more information on how to use the underlying Android operating system, refer to the following section. Setting Description Software Update Check for available Pulse Player software updates. This requires an Internet connection.
  • Page 11 “OFF” keeps the screen oriented in the default landscape display orientation. Note that this option only works for iDISPLAY tablets, and does not affect the use of the media player set-top box.
  • Page 12 Setting Description Log Options “ON” enables recording Pulse Player log messages to a log file stored in the internal device memory. If this setting is enabled, the log file “PulsePlayer_Log.txt” is created and stored in the top-most directory of the device’s internal memory, which can be accessed through the “Explorer”...
  • Page 13 Configure a daily reboot time to ensure Pulse Player and the underlying Android operating system memory is regularly cleared and refreshed so as to maintain good playback performance for extended periods of time. OUTFORM recommends scheduling a daily reboot time when no customers are expected to use the device.

  • Page 14: Using The Android Operating System

    The applications menu contains commonly used Android applications and tools. The following three applications most relevant to using your iDISPLAY device are described below: PulsePlayer Opens and runs the Pulse Player software to play interactive content.

  • Page 15: Configuring The Android Operating System Settings

    Configuring the Android Operating System Settings Click on the “Settings” icon to configure the following three relevant Android system settings: Connecting to a Wireless Network The preselected item on the left hand settings menu is “Wi-Fi”. To enable wireless connections, drag the “Wi-Fi” menu item slider to the right to display “ON”. After a few seconds available wireless networks appear on the right side of the screen.

  • Page 16: Using Pulse Management

    Using Pulse Management Pulse Management is an additional subscription-based feature that can be used to remotely control iDISPLAY devices. When connecting to the Internet, the Pulse Management app automatically connects to the service’s servers, as is indicated by the “Registering Device” message that briefly appears. If connecting to the Internet for the first time, a prompt appears requesting device administrator activation.

  • Page 17: Troubleshooting

    USB drive. • The USB drive was inserted into the “USB OTG (On-The-Go)” port of the iDISPLAY device with the Android system “Developer options” setting “USB debugging” enabled. The “USB OTG” port can also be used for developer debugging purposes.
  • Page 18 For further information or support, please contact us at http://outform.com/support/...
