Summary of Contents for Outform i Display
-

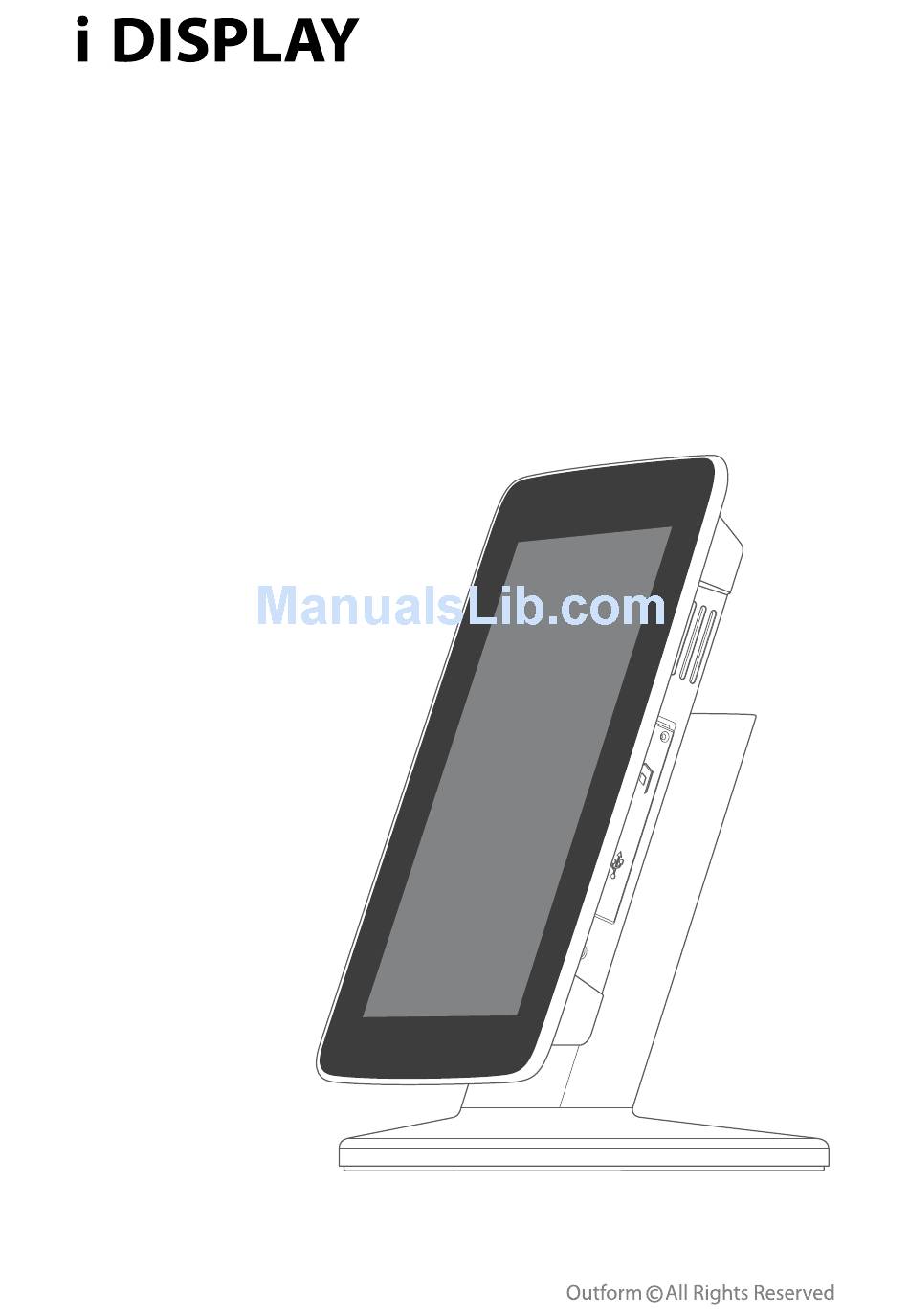

Page 1: User Manual
Interactive Digital Displays i View / i Menu Classic User Manual... -
Page 2: Table Of Contents
Index Safety and Warning Main Supply Main Adaptor FCC Radiation Exposure Statement Warning Overview Contents Front View Side A Side B Back Operating Instructions Quick Start Video Picture Buttons and Remote Control Screen Status Indicators Menu Features Playlist Wi-Fi Calendar Settings Power Supply Unit Electrical Data... -
Page 3: Safety And Warnings
Safety and Warnings Main Supply This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. - Page 4 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body Dangerous voltage constituting a risk of electric shock is present inside this equipment.
-
Page 5: Overview
Overview Components Power Supply Unit – US, EU/UK Plugs available. Remote Control. 4 Cell Rechargeable Battery – Not included in the package. (Must be purchased separately) Desk Mount Clip (not seen in picture) – Not included in the package. (Must be purchased separately) Securing Cable. -
Page 6: Side B
Side A Setting buttons Left In menu mode, this function is used for moving left through the various options. In playback mode you can go to the previous content in the playlist. (Note this is only operational for content copied from USB or SD Card, not for content downloaded from i-Display Content Management System). - Page 7 USB slot This is used for connecting ash drives. Once the ash drive is connected, all its content is automatically copied to the internal memory. To delete old content see Playlist section. SD card slot Once an SD Card is inserted into the unit, the content on the SD Card will start to play.
- Page 8 Rechargeable battery slot Used to house the rechargeable battery. The rechargeable battery needs to be placed as shown in these images. Placing the Rechargeable Battery Removing the Rechargeable Battery Back...
-
Page 9: Operating Instructions
Operating Instructions Quick Start Turning On Plug into electricity or insert fully charged battery. Display will automatically load movie and play. (If the unit does not play a movie automatically, press the power button at the back of the display. RED light indicates standby mode and GREEN light indicates the unit is switched ON.) Playing other movies / change content Connect a USB stick to the unit. -
Page 10: Picture
Picture Recommended Picture Resolution: Landscape • Format: JPG • Resolution: 600X1024 Portrait • Format: JPG • Resolution: 1024X600 Buttons and Remote Control Remote Control ON/OFF MUTE MENU SLIDE SHOW ENTER ROTATE ZOOM Remote Control On/O Turns the unit on/o . Volume (- / +) Increase/decrease volume when movies are played. - Page 11 Menu Returns the unit to setup mode. Left In menu mode, this function is used for moving left through the various options. In playback mode, this function allows you to go to the previous content in the playlist. (Please note: This is only operational for content that is copied from USB or SD Card, not for content downloaded from i-Display Content Management System.) Right In menu mode, this function is used for moving right through the various options.
-
Page 12: Screen Status Indicators
Play/Pause In playback mode, this function is used to pause or play a speci c JPG or movie. (This function is only operational on content copied from a USB or SD Card or a playlist viewed from an SD Card and not for content downloaded from i-Display Content Management System.) Stop In playback mode, pressing this function once will stop the current content playing and will make the screen return to the menu mode. -
Page 13: Menu Features
Menu Features The Menu includes 4 main features: Playlist / Wi-Fi & Activation to Remote Content Management / Calendar / Settings. Each can be accessed and activated by either the remote control or buttons on the side of the unit. Playlist The playlist holds a list of content, which can be played on the unit. -
Page 14: Wi-Fi
Click OSD to copy / delete / sort content. (Please note: This function is only operational on content copied from a USB or SD Card or a playlist viewed from an SD Card and not for content downloaded from i-Display Content Management System) Use the arrows to move between these options and Click “Enter”... - Page 15 Click OK on DHCP, the player will automatically locate available Wi-Fi networks. Click OK on your selected wireless network. (If your Wi-Fi connection does not require a password the Player will connect to the wireless network automatically. However, if the wireless network requires a password, click OK, you will need to ll-in the Username and Password.) Wi-Fi...
- Page 16 On secure Wi-Fi networks, insert relevant network code using the remote control, then click “Done”. Once the unit is connected, a Wi-Fi signal will appear. If an error message appears, retype your username and password (please ensure you are using the right information and capital letters if applicable, otherwise the Player will not be able to connect to the wireless network).
- Page 17 Step Two: Getting an activation code Make sure the unit is connected to Wi-Fi (Wi-Fi connection via DHCP or Manual Link explained in Wi-Fi section). Use the remote control or Player buttons and go to Wi-Fi List in Wi-Fi tab, then click Click OK on the i-Display Logo (as shown in screenshot above) and wait for approximately 3 minutes (the Player will indicate it is connected to Wi-Fi by showing the Wi-Fi icon) as the Player downloads an "activation slide".
- Page 18 Write down the activation code, as it is needed to activate this speci c Player on the i-Display Content Management System. Step Three: Activate your player within i-Display content management system Log on to i-Display Content Management System at www.i-display.com (http://www.i-display.com) and click on the LOGIN link in the home page.
- Page 19 Enter a Player name (it is highly recommended that the Player name will include a unique number which you will then be able to use to identify it from other players) and the unique Activation Code shown on the Player screen, as shown in Step Two: Getting an activation code.
-
Page 20: Calendar
The name that appears on the Account Con g should be the same as your account name in i-Display Content Management System (the same account name you gave when you registered). If the name matches your registered account name, your Player is now connected to the i-Display Content Management System. -
Page 21: Settings
Settings Holds a list of functions as shown in the screenshots below e.g. Slideshow Frequency, Transition e ect, etc.: Slide Show Frequency: Controls the amount of time each JPG will be shown when played. This only a ects content copied from USB or SD Card to internal memory or content played from SD Card and not content downloaded from i-Display Content Management System. -
Page 22: Power Supply Unit Electrical Data
Display: Controls brightness and contrast of the unit. Photo View Options: Allows JPGs to be shown in their original size or ll in the screen. Copy Option: Allows reduction of the size of the les copied from USB or SD Card to internal memory. - Page 23 Interactive Digital Displays For further information or support, please contact: support_iView@i-display.com...
