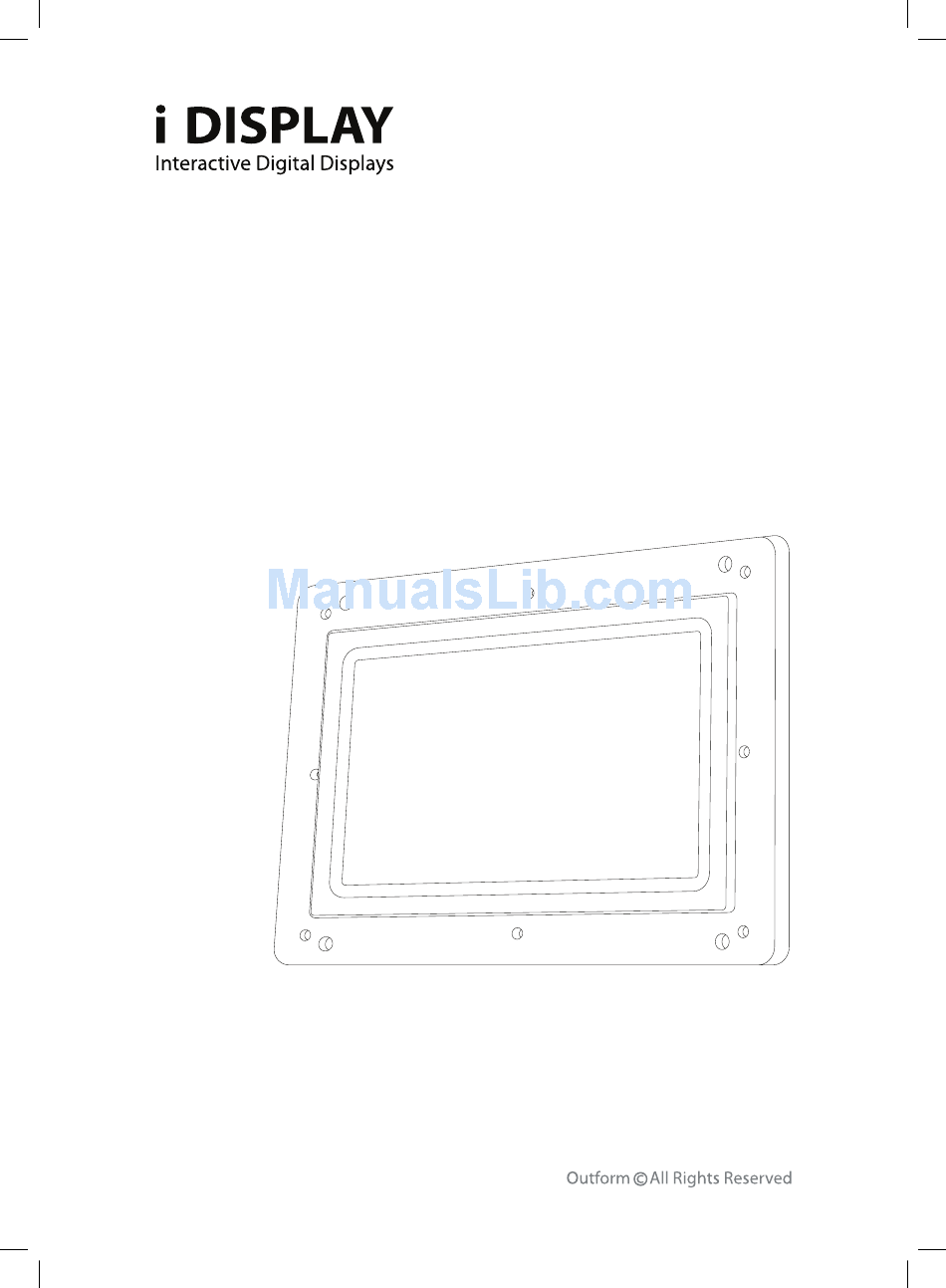

- Page 1 7” Open Frame User Manual...
-
Page 2: Table Of Contents
Index Safety and Warnings Main Supply Main Adaptor FCC Radiation Exposure Statement Warning Overview Components Features Operating Instructions Quick Start Accessories Troubleshooting Power Supply Unit Electrical Data... - Page 3 Thank you for purchasing an Outform i Display 7” open frame unit. Before you start to use your new i Display 7” open frame unit, please read the user manual carefully to enjoy i Display performance and a longer service life.
-
Page 4: Safety And Warnings
Safety and Warnings Main Supply This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. - Page 5 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio / TV technician for help. In accordance with FCC requirements, changes or modifications not expressly approved by manufacturer could void the user’s authority to operate this product.
-
Page 6: Overview
Overview Components 7” Digital Open Frame Power Supply Unit Screwdriver User Manual Mid-frame Features I Display eyeholes for wall mounting. I Display standard screw holes for I display accessories Speakers 1 2 3 Components / Features... - Page 7 Motion Sensor Jack ± 5V power output Jack IR receiver for remote control Jack Push Buttons Jack Speakers Jacks Earphone Jack 9V DC input Jack Brightness+/-: To adjust the brightness increase/decrease Volume+/-: To adjust the volume increase/decrease On/Off: power on/off SD card Mini USB USB port...
-
Page 8: Operating Instructions
0 is for the loop movie, folder 1- 6 are for Push Button activated movies, folder MS is for Motion Sensor activated movie. Connect the USB stick to the I Display USB port. The content which was in the internal memory will be deleted and replaced with the new content being copied from the USB stick, this process will be shown on the screen. -
Page 9: Accessories
Connect the USB stick to i-Display USB socket. The content which was in the internal memory will be deleted and the new content in the USB stick will be copied automatically. After the content is copied, the unit will start playing the new content automatically. -
Page 10: Troubleshooting
All accessories are purchased separately For more information on the range of accessories, please log on to www.i-display.com Troubleshooting Problem Troubleshooting Not recognized USB/SD card 1. Make sure the content is copied in right folders (see page 8) 2. Inside content is not compliant with video/audio/picture formats (see page 9) 3. - Page 11 For further information or support, please contact: support_iView@i-display.com...
