SENAO CAP2100AG Quick Installation Manual

Wireless-n 300 + 300mbps long range ceiling mount dual concurrent ap

CAP2100AG

Wireless-N 300 + 300Mbps Long Range Ceiling Mount Dual

Concurrent AP

Please verify contents of the box before continuing to set up the CAP2100AG.

CAP2100AG Access Point

12V/2A 100V~240V Power Adaptor

RJ-45 Ethernet Cable

Mounting Bracket

Wall/Ceiling Mounting Hardware Kit

T-Rail Mounting Hardware Kit

CD with User's Manual

Connecting the CAP2100AG

1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information,

verify with User Manual.

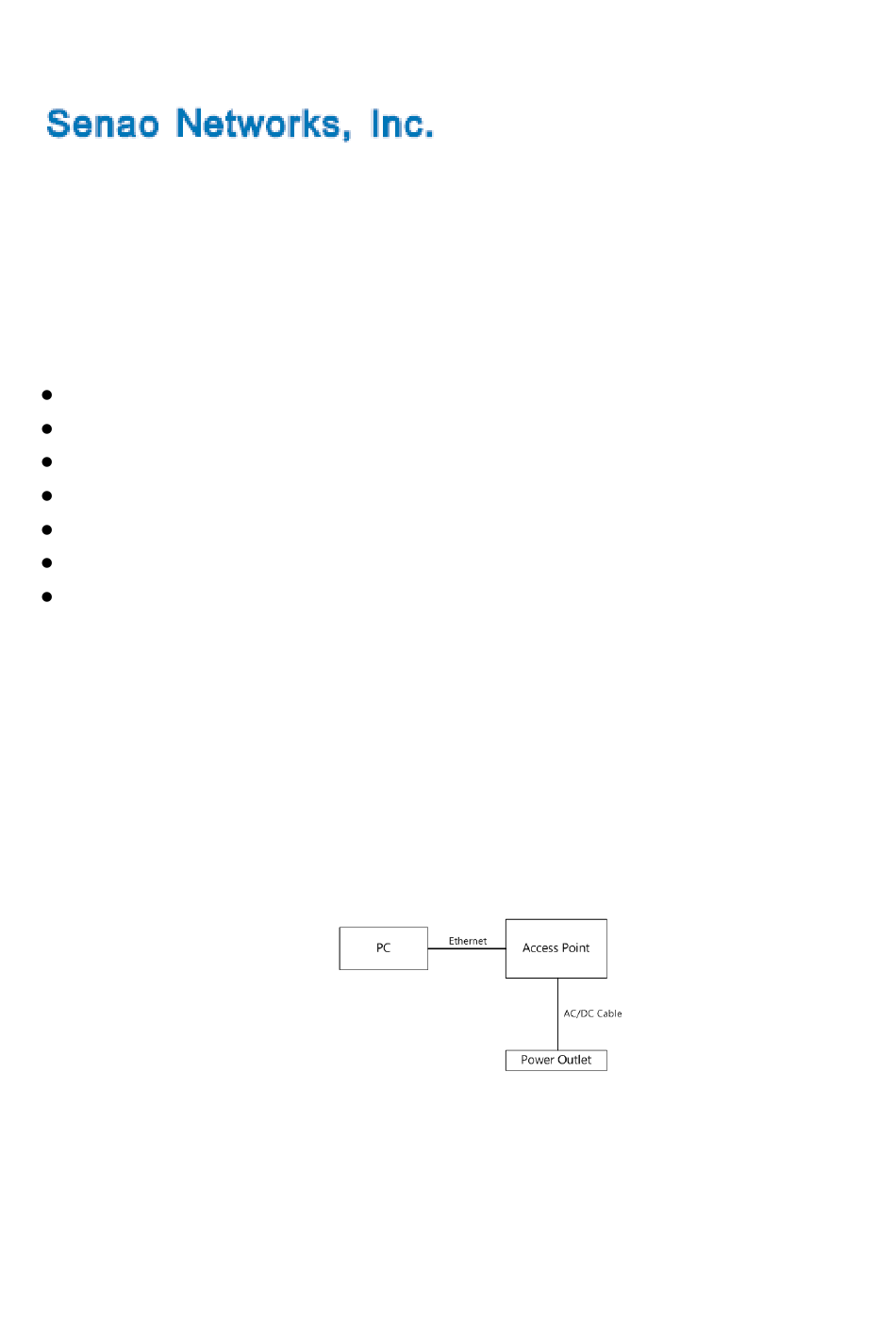

2) Connect one end of the Category 5e Ethernet cable into RJ-45 port of the CAP2100AG and the

other end to the RJ-45 port on the computer that will use the CAP2100AG. Ensure that the cable

is securely connected to both the CAP2100AG and the Computer.

3) Connect the Power DC Inlet to the DC-IN port of the CAP2100AG and the Power to the electrical

out.

Note: CAP2100AG supports both IEEE 802.3at PoE(Power over Ethernet) and regular power adapter. You

should use either one as the power source. Please do not apply both at the same time.

Quick Installation Guide

Table of Contents

Do you have a question about the CAP2100AG and is the answer not in the manual?

Page 1 RJ-45 port on the computer that will use the CAP2100AG. Ensure that the cable is securely connected to both the CAP2100AG and the Computer. 3) Connect the Power DC Inlet to the DC-IN port of the CAP2100AG and the Power to the electrical out.
Page 2 CAP2100AG) and hit enter. http://192.168.1.1 3) A login screen will appear. By default, the username of the CAP2100AG is admin and the password is admin. Enter the current username and password of the CAP2100AG and then click Login. Refer to the CAP2100AG user manual on how to change the username and password.
Page 3 If extra space is required, use the provided spacers and long screws from the T-Rail mounting hardware kit to increase the space between the unit and the mounting bracket. 3) Mount the CAP2100AG on the mounting bracket by rotating the unit clockwise about 90 degrees to secure it in place.
Page 4 2) Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps into place. Note: To protect your CAP2100AG, use the Kensington security slot to attach a cable lock (cable lock is not included).
