SENAO NL-5354AP1 Aries2 Quick Installation Manual

Quick Installation Guide to Wireless Access Point

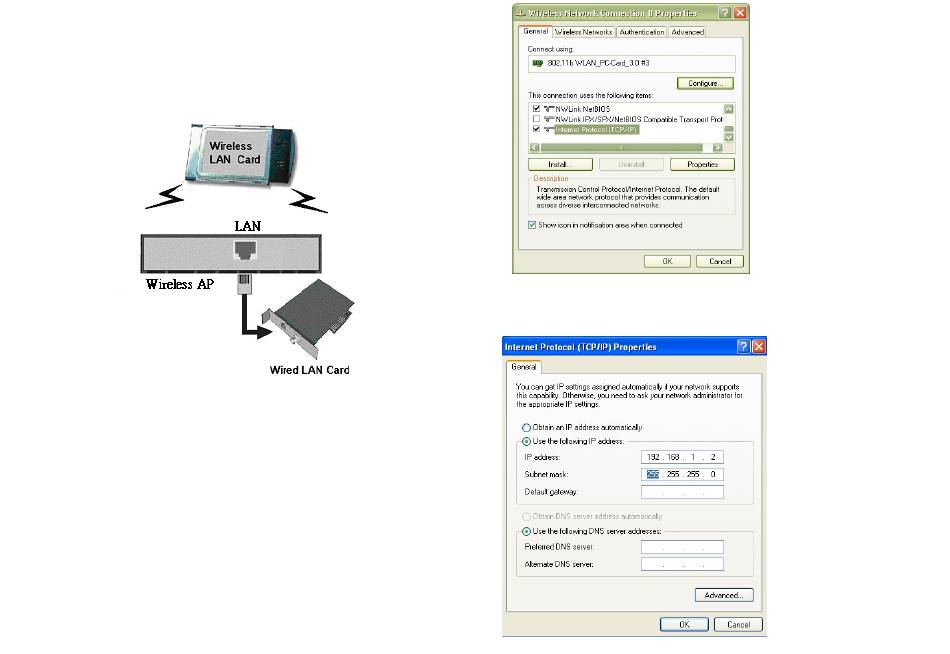

A. Hardware Installation
1. Wired LAN connection: Connect an Ethernet cable (i.e. UTP/STP RJ45) from
your computer's Ethernet (RJ45) port to one of the LAN ports of this Wireless
Access Point.
2. Wireless LAN connection: Locate this Wireless Access Point at free spaces
to gain best Signal Strength.
3. Power on: Plug the power cord into the outlet and the inlet of the Wireless
Access Point.
B. Configuring TCP/IP Settings of Your Computer
For Windows2000 and Windows XP:
1. Click Start Menu, choose Settings, select the Control Panel and double click
on Network and Dial-Up Connection. (In Windows XP, please click Start
Menu -> Control Panel. Select Classic View in the upper left corner, and then
Double-click on the Network Connections icon.)
2. Right click on the Local Area Connection bound to your LAN Card and select
Properties. Choose Internet Protocol (TCP/IP) and click on the Properties
Button.
3. In General tab, select Using the Following IP address and fill in:
IP Address: 192.168.1.2, Subnet Mask: 255.255.255.0. Then Click on the OK
button. Click on the OK button again in the Local Area Connection Properties
Window.
