Summary of Contents for Steg QM75.4

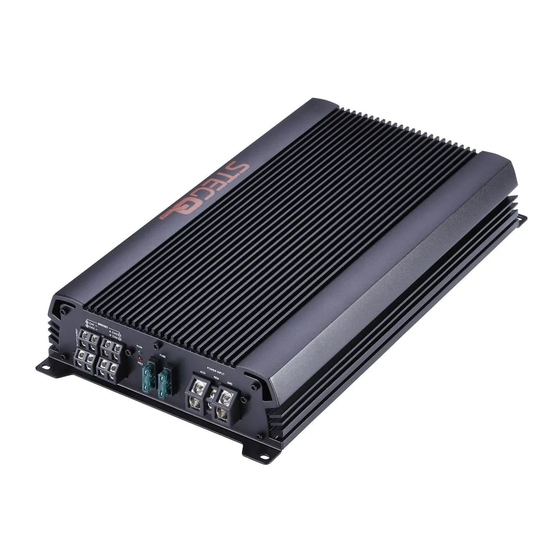

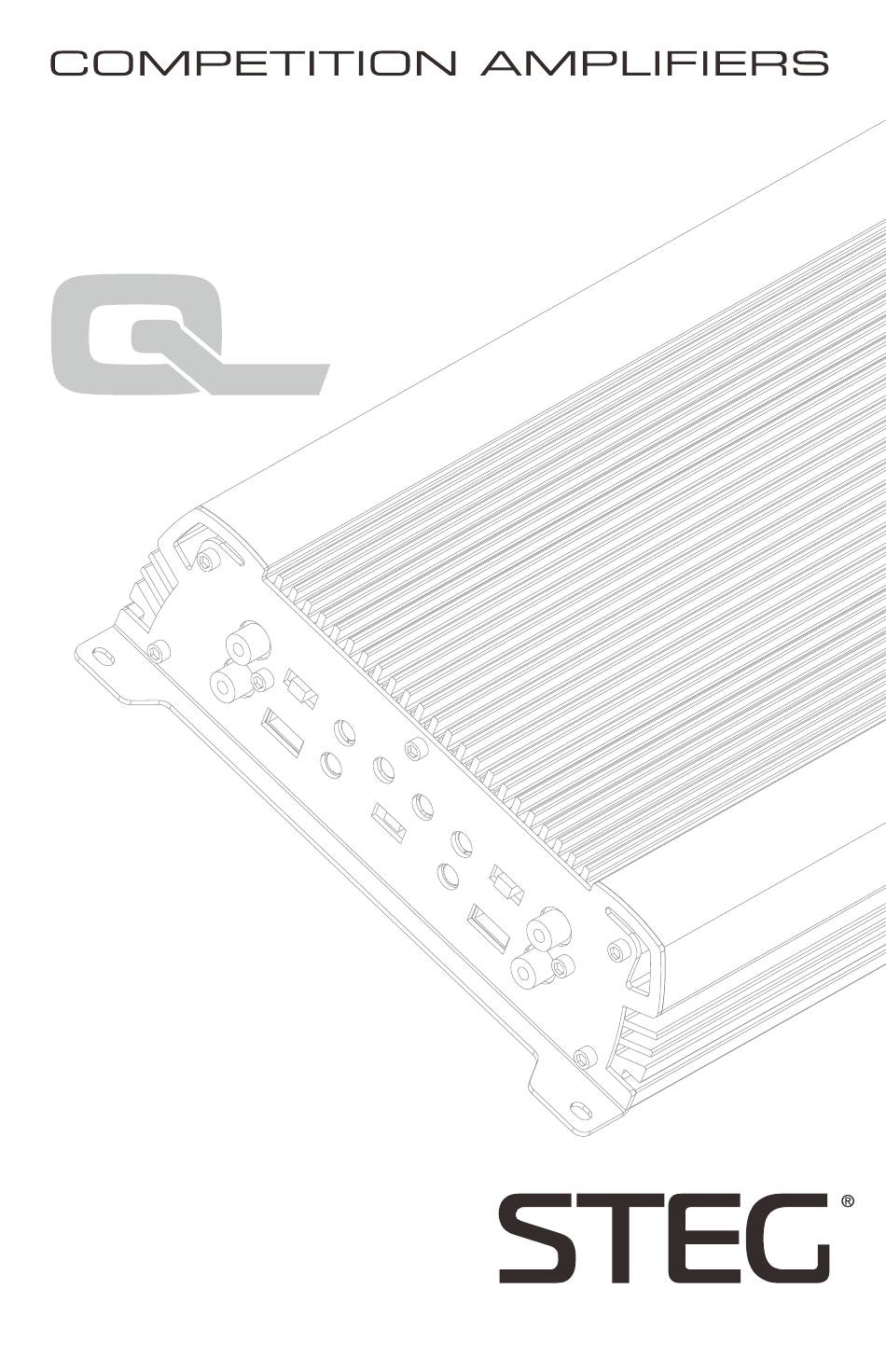

- Page 1 QM75.4 QM500.1 USER'S GUIDE Car Audio Power Amplifiers...
- Page 2 • STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the product. Return it to your authorized STEG dealer. • HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience for wiring and installation.
- Page 3 264x184x56mm Note: All specifications are subject to change without notice. Notes: Band-pass capability is available in CH3/4 of the QM75.4 model when its crossover mode switch is set to LPF(BP), enabling both the HPF and LPF frequency adjustments. Ÿ All specifications are subject to change without notice.
- Page 4 18in (45cm) from the positive battery terminal. The QM75.4 and QM500.1 require a 60A fuse (not included) and a minimum power wire gauge of 8AWG. Do not install the fuse until all other system connections have been made.
- Page 5 QM75.4 Speaker Connection Examples: 4-Channel 3-Channel (Stereo + Bridged) 2Ω 2Ω 2Ω 2Ω (min) (min) (min) (min) 4Ω 2Ω 2Ω (min) (min) (min) 2-Channel (Bridged) 4Ω 4Ω (min) (min) QM500.1 Subwoofer Connection Examples: 1Ω 2Ω 2Ω (min) (min) (min) Bridged Configuration Example: 2Ω...
- Page 6 Bass EQ (BASS BOOST): This provides level adjustment of a single EQ band centered at 45Hz from 0dB up to +12dB. It is available in the QM75.4 for CH3/4, and in the QM500.1 model. Use this setting to achieve desired bass response without over-driving the speaker(s)/subwoofer(s) or causing excessive amplifier output distortion.
- Page 7 Warranty & Service Care GT Trading warrants this product to be free from manufacturing defects for a period of one (1) year from original date of purchase. Under this warranty, Wāvtech will replace the defective product on behalf of GT Trading with a new or remanufactured one at no charge.
- Page 8 The described in this User's Guide represent just a part of the STEG products available. All brands and trademarks mentioned have been used exclusively for description purposes and all rights belong to the respective owners, total or partial.
