Summary of Contents for Lufft ARS31Pro-UMB

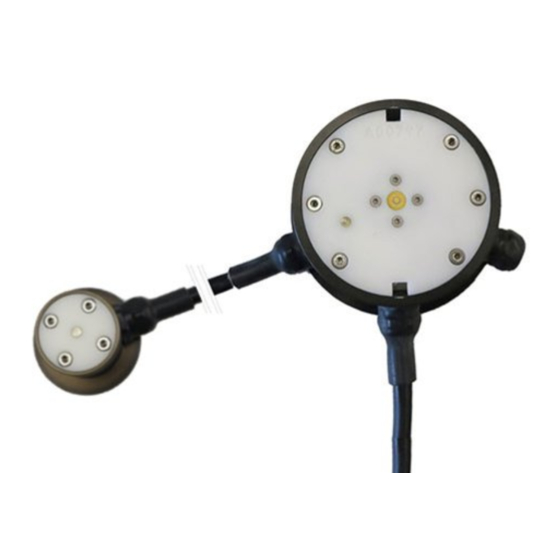

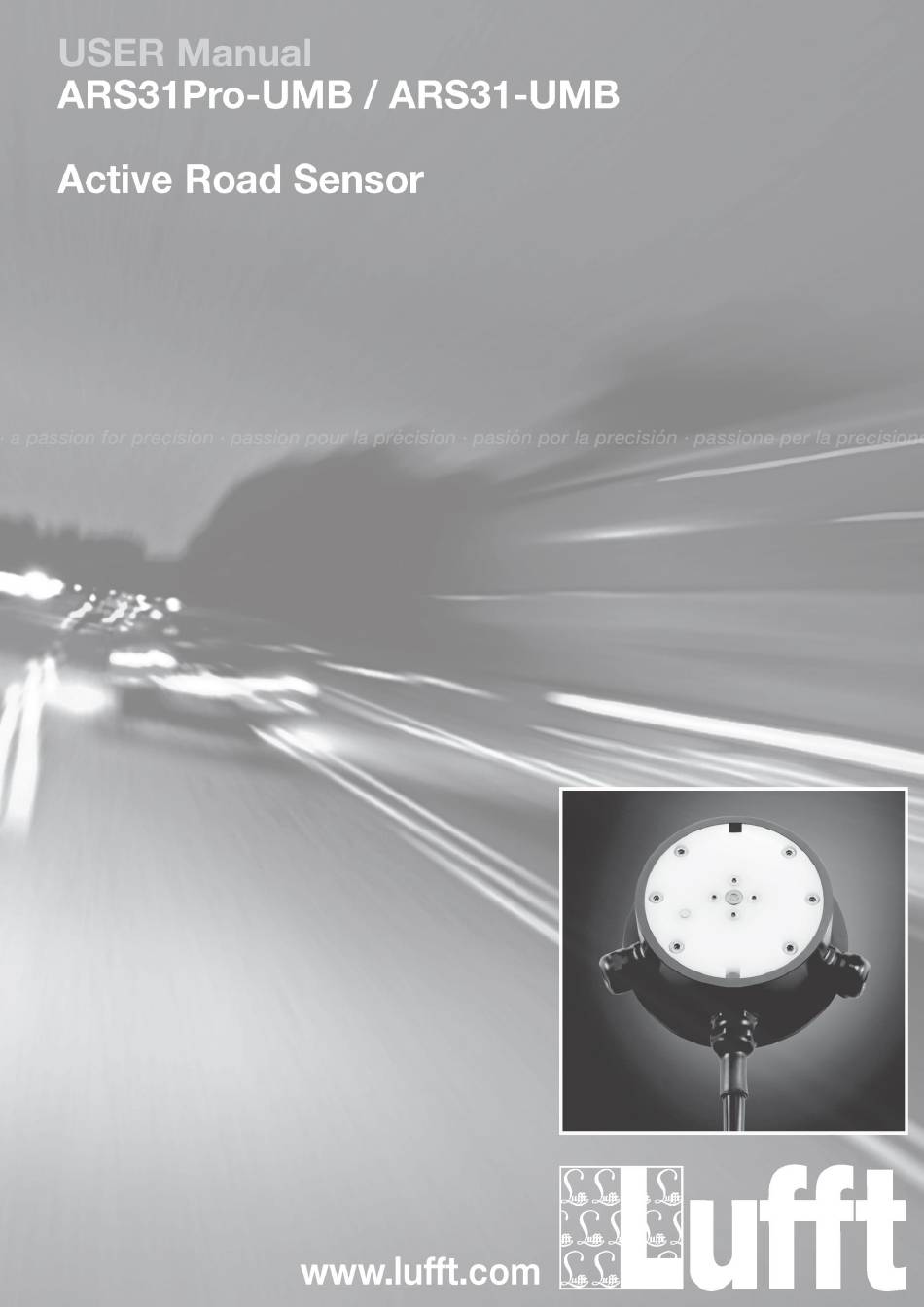

- Page 1 Operating Manual ARS31Pro-UMB ARS31-UMB Active Road Sensor Order No. ARS31Pro-UMB: 8810.U051 50m cable Order No. ARS31-UMB: 8610.U050 50m cable Version V6 (06/2014)
- Page 2 Operating Manual ARS31Pro-UMB English © G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany. Subject to change without notice.
-
Page 3: Table Of Contents
Mechanical data (excluding cable) ....................34 EC Certificate of Conformity ......................... 35 Troubleshooting ............................ 36 Service and maintenance ........................37 Disposal ..............................37 Manufacturer ............................38 14.1 Technical support ..........................38 List of Figures ............................39 G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... - Page 4 Supplements to the cable length and power supply, integration of ARS31-UMB 10.07.2015 LA/BR Calculation of saline concentration according to CEN/TC 15518-4, figures and channels updated 14.03.2016 Technical data modified 16.03.2017 LA/BR Technical data modified, chapter 7.3 updated G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
-
Page 5: Please Read Before Commissioning
1 Please read before commissioning Before using the equipment, please read the operating manual carefully and follow the instructions in every detail. This operating manual covers ARS31Pro-UMB/ARS31-UMB device version 9 and above and firmware 10.3 and above. 1.1 Symbols used Important indication concerning possible hazards to the user ... -
Page 6: Order Numbers
Power supply unit 24V/100VA ... 8160.UISO ISOCON-UMB ........8160.UISO Surge protection ........ 8379.USP DACON8-UMB ........8160.UDAC 2.2 Additional Documents and Software You can download the following documents and software via the Internet at www.lufft.de: This document Operating Manual ... -
Page 7: Differences Between Ars31Pro-Umb/Ars31-Umb
ARS31(Pro)-UMB Operating Manual V9/03.2017 3 Differences between ARS31Pro-UMB/ARS31-UMB ARS31Pro-UMB compared with ARS31-UMB possesses the following features: Measurement of threat of icing by means of a direct measurement or freezing temperature. Exact measurement of road surface temperature with an external temperature sensor. -
Page 8: Device Description
Inverse-polarity protection 4.1 Method of operation ARS31Pro-UMB/ARS31-UMB ARS31Pro-UMB/ARS31-UMB determines the freezing temperature of a liquid on the road surface by means of active cooling and heating. The Sensor allows precise determination of the freezing temperature in the absence of accurate knowledge of the type or mixture of salt. -
Page 9: Additional Features Of Ars31Pro-Umb
4.2 Additional features of ARS31Pro-UMB In addition, ARS31Pro-UMB determines the threat of icing as follows: for a dry road – by cooling to an adjustable temperature value (∆ T1); for a wet road - by comparing the measured freezing temperature with the road surface temperature while taking account of the set temperature value (∆... -
Page 10: Installation
Dp = 6 cm. A slit of width W = 2 cm and depth Dp = 5 cm is cut into the road for the cable. For ARS31Pro-UMB the external sensor requires an additional hole of diameter Dm > 9 cm and depth Dp = 5 cm. - Page 11 Per core 100 m cable results in a loop resistance of 7.3 Ω. By parallel connection of 4 cores results in a loop resistance of 7.3 Ω / 4 = 1.83 Ω Figure 4: Example of an Extension Box G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
- Page 12 2 single wires are 1 pair for power supply (+&-)! RS485 Terminator resistor required means that either at Sensor input port or at muffle position a resistor of 120 Ohm should be connected parallel to the RS485 2-wire interface. G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
- Page 13 For the calculated case with loop resistance − √ ( − 4 ∗ (1,83) ( 1,83 ) (1,83) = 1,4 �� Not considered here is the short piece of the standard cable! G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
-
Page 14: Connecting The Cable
The screening of the connection cable MUST be laid to ground. Figure 5: Example of a Standard Lufft UMB Control Cabinet Figure 7: Examples of the Earthing of the Cable Screening There are two existing cables: color coded and numerical coded. - Page 15 ARS31(Pro)-UMB Operating Manual V9/03.2017 Figure 8: ISOCON-UMB Connection Warning! Connecting the cables incorrectly will destroy the road sensor! G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
- Page 16 2 cm breit / wide 5 cm tief / deep Straßenoberfläche Road surface min. Ø 9 cm ext. ext. Temp.Sens. Temp.Sens. Gießharzbeton Casting resin conrete ARS31Pro extension Figure 6: Installation of ARS31PRO-UMB/ARS31-UMB in the road G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
- Page 17 Montagehilfe Montagehilfe Installation aid Installation aid Straßensensor Road sensor Innensechskant Hexagon socket head screw Straßenoberfläche Road surface externer externer Temp.Sens. Temp.Sens. Gießharzbeton Casting resin concrete ARS31Pro extension Figure 7: Installing the ARS31PRO-UMB/ARS31-UMB G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
-
Page 18: Commissioning And Testing
Operating Manual V9/03.2017 5.4 Commissioning and testing After the device has been installed and connected correctly, the ARS31Pro-UMB/ARS31- UMB is initialized and measurement begins. The first measurements are available after approximately 1 minute; after approximately 20 minutes, the measurements for freezing temperature and saline concentration / threat of icing are available (provided that the ambient conditions allow such measurements). -
Page 19: Maintenance
The threads of the fixing screws must be greased. First the screws are attached loosely and then tightened cross-wise (torque 2 Nm). G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 20: Connections
See Section 3.3 Installation – Connecting the cable 6.2.1.1 Power supply The ARS31Pro-UMB/ARS31-UMB power supply is 24 VDC ± 10% (for a cable length up to 15 meters). For cable lengths over 15 meters see table below. The supply voltage must not exceed the value of 28 VDC. - Page 21 The data and power supply cables are connected via a 4-pole terminal block. Cable type LI-2YCYv2X2X0.5 is used. Cable labeling on the pins is based on DIN 47100. The screened cable must be laid to the ground circuit connector in the control panel. G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
-
Page 22: Configuration
After loading an ARS31PRO-UMB configuration, all relevant settings and values can be adjusted. If several ARS31PRO-UMB devices are operated on a UMB network, the ID must be changed before connection to the network, as each device requires a unique ID. IDs are allocated in ascending order, beginning with number one. - Page 23 If this function is disabled, the dry threshold as set using the UMB-Config Tool applies. If this value is too high, the ARS31Pro-UMB measures during dry conditions, which may lead to incorrect measurements caused by condensation on the sensor element.
- Page 24 After the activation of the freezing temperature limit, the smoothed freezing temperature can be transitional-wise under the temperature limit (if the freezing temperature directly before the change was under the opposed limit). G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
- Page 25 You can activate the measurement polling channels for the UMB-Config-Tool by clicking on the respective channel. This setup has no influence on the channels which can be queried by the user software. Figure 11: Select the Channels for Measurement Polling G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
-
Page 26: Firmware Update
60°C. The update is controlled by means of PC software. A firmware update can only be applied if a baud rate of 19200 BD is set on the sensor interface. G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 27: Communication
RS485 interface with the aid of the ISOCON-UMB. The bus is not terminated with a resistor due to dissipation in the sensor. The use of PC software from Lufft for purposes of maintenance and diagnosis makes an RS485-RS232 or RS485-USB converter superfluous. - Page 28 However, this only makes sense if there is only one device of this class on the bus. 8.1.3 Examples for creating addresses If, for example, an ARS31PRO-UMB/ARS31-UMB is to be given device address ID 0001, this is done as follows: Class ID for ARS is 4d = 4h Device ID is e.g.
-
Page 29: Ascii Protocol
+ 1 (LSB first mode) Start value: FFFFh (Attention: Contrary to earlier Lufft protocols, the start value for CRC calculations is not 0h but rather FFFFh in accordance with CCITT) Further information is available in the description of a CRC calculation in UMB Protocol. -
Page 30: Channel Assignment For The Data Request
0…100/255 3002 Act.Saline Concentr. CaCl TLS FG3 DE 52 unsigned char 0…100/255 3011 Act.Saline Concentr.MgCl TLS FG3 DE 73 unsigned char 0…100/255 3012 Act.Saline Concentr. CaCl TLS FG3 DE 73 unsigned char G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... - Page 31 Legend: MS ... Mapping standard Channel 901 is only available with ARS31Pro-UMB Sensor. The channels 101, 20001, 20800 and 20826 are used for diagnostics. It is recommended this channels are queried and recorded. Difference between the “saline concentration” channels 801, 803, 805, 816, 817, 818, 821, 823, 825, 836, 837, 838, 1073, 3011, 3012 and the channels 1052, 3001, 3002: The channels 801, 803, 805 etc.
-
Page 32: Mapping Standards
ARS31(Pro)-UMB Operating Manual V9/03.2017 Description of the coding of channel 901 “Act. threat of icing” (Channel 901 is only available with ARS31Pro-UMB Sensor!) • If no threat of icing was detected via either the freezing temperature or the direct measurement, channel 901 delivers the value 0. -
Page 33: Technical Data
Transmitted on Channel 901: 0 -> No threat of icing 1 -> Threat of icing 2 -> Threat of icing was not determined Channel 901 is only available with ARS31Pro-UMB Sensor. 9.1.5 Road surface temperature ARS31Pro-UMB Principle: Measurement range: -40 ... 80°C Accuracy: ±0.2°C (-10...10°C), otherwise ±0.5°C... -
Page 34: Operating Conditions
Protection class: IP68 The sensor only measures freezing temperature and threat of icing in the road surface temperature range -30°C … +5°C (adjustable up to 10°C). Above 60°C an error code is transmitted. G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 35: Ec Certificate Of Conformity
EN 61000-4-6 (2009-12) ....Conducted disturbances, induced by radio-frequency fields EN 55022 Rad (2011-12) ....Radio Frequency Disturbance ITE EN 55022 Cond (2011-12) ....Radio Frequency Disturbance ITE Fellbach, June 4 , 2014 Axel Schmitz-Hübsch G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 36: Troubleshooting
Threat of icing is disabled or not supported (ARS31- delivers error FC:36 UMB) The description of the UMB-errorcodes you can find in the document “UMB-Protocol” under www.Lufft.com the sector Support – Downloads – Manuals – UMB Technology. G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 37: Service And Maintenance
2003/108/EC (waste electrical and electronic equipment). Waste equipment must not be disposed of as household waste. For environmentally sound recycling and the disposal of your waste equipment please contact a certified electronic waste disposal company. G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 38: Manufacturer
14.1 Technical support Our hotline is available for technical questions via the following e-mail address: hotline@lufft.de You can also consult frequently asked questions at http://www.lufft.com/ (menu header: FAQs). G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany... -
Page 39: List Of Figures
Figure 3: Cable Extension ........................11 Figure 4: Example of an Extension Box .................... 11 Figure 5: Example of a Standard Lufft UMB Control Cabinet ............14 Figure 6: Installation of ARS31PRO-UMB/ARS31-UMB in the road..........16 Figure 7: Installing the ARS31PRO-UMB/ARS31-UMB ..............17 Figure 8: Connections in the housing .................... - Page 40 ARS31(Pro)-UMB Operating Manual V9/03.2017 G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany...
