Summary of Contents for Furniture of America CM3175T-5PK

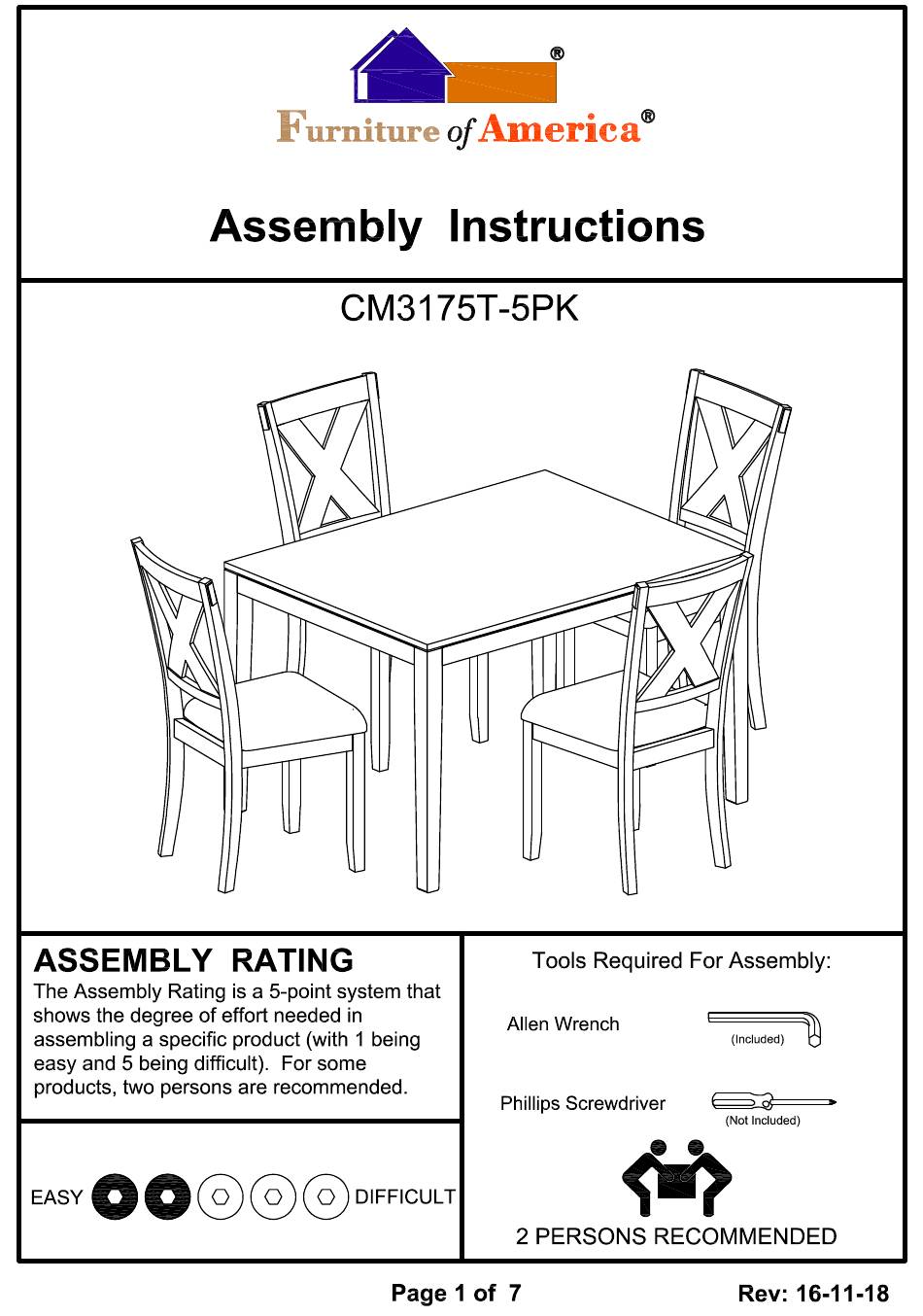

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Unscrew the screws on the corner guard. Remove the corner guard from the table (#1). Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align legs (#2) to the holes of the table top (#1). Secure with bolts (#A).
- Page 6 Prepare 2 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align chair seat (#2) to the holes of the chair back (#1). Secure with bolts (#C). Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A).
- Page 7 Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#B). Align legs (#3) to the holes of the seat (#2). Secure with bolts (#B).
