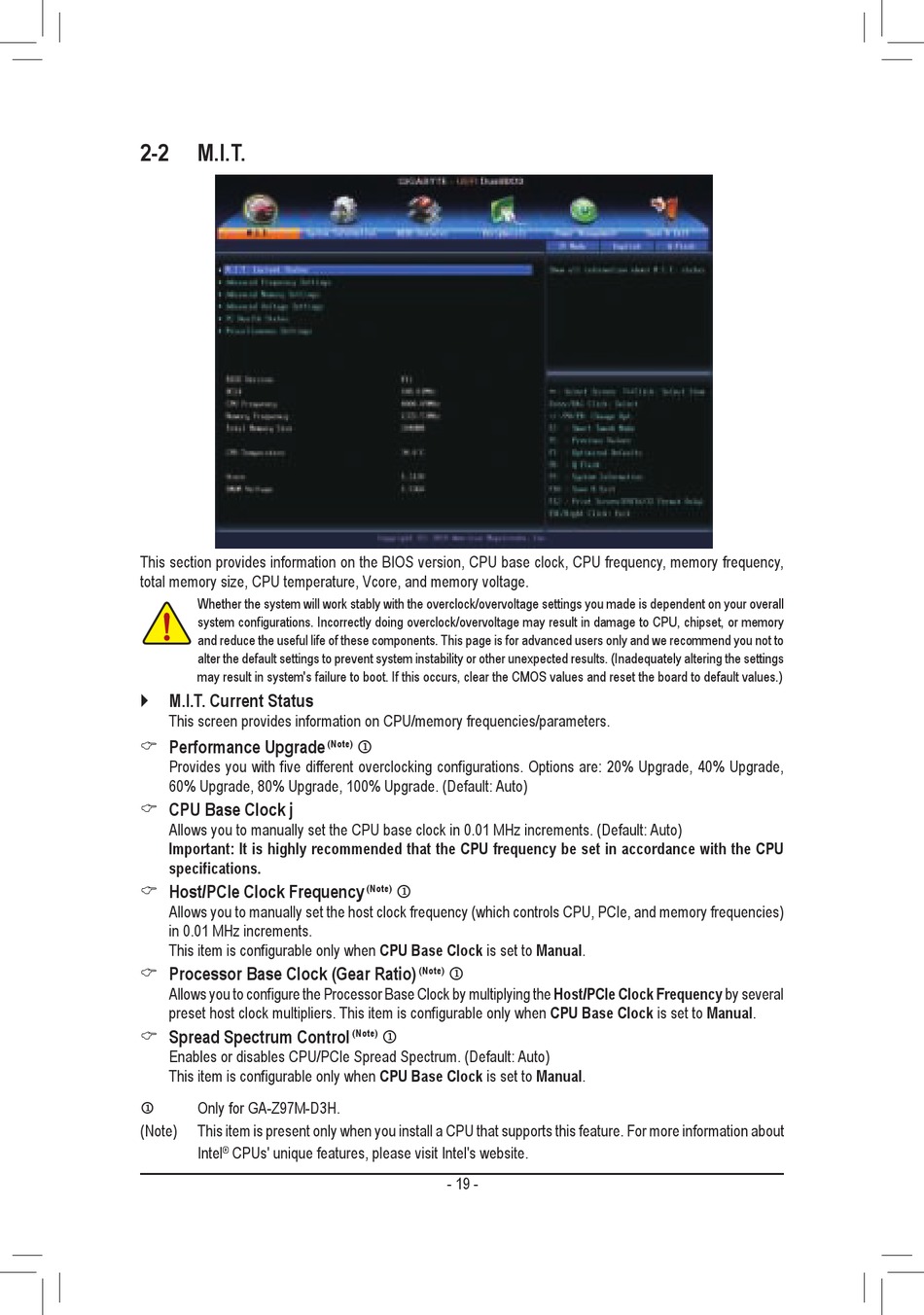

2-2 M.I.T.
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,
total memory size, CPU temperature, Vcore, and memory voltage.
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)
` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.
& Performance Upgrade
Provides you with five different overclocking configurations. Options are: 20% Upgrade, 40% Upgrade,
60% Upgrade, 80% Upgrade, 100% Upgrade. (Default: Auto)
& CPU Base Clock j
Allows you to manually set the CPU base clock in 0.01 MHz increments. (Default: Auto)
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specifications.
& Host/PCIe Clock Frequency
Allows you to manually set the host clock frequency (which controls CPU, PCIe, and memory frequencies)
in 0.01 MHz increments.
This item is configurable only when CPU Base Clock is set to Manual.
& Processor Base Clock (Gear Ratio)
Allows you to configure the Processor Base Clock by multiplying the Host/PCIe Clock Frequency by several
preset host clock multipliers. This item is configurable only when CPU Base Clock is set to Manual.
& Spread Spectrum Control
Enables or disables CPU/PCIe Spread Spectrum. (Default: Auto)
This item is configurable only when CPU Base Clock is set to Manual.
j
Only for GA-Z97M-D3H.
(Note) This item is present only when you install a CPU that supports this feature. For more information about
®
Intel CPUs' unique features, please visit Intel's website.
j
(Note)
j
(Note)
j
(Note)
j
(Note)
- 19 -
