  • Page 1 GA-Z97M-D3HP GA-H97M-D3HP User's Manual Rev. 1001 12ME-Z97M3HP-1001R GA-Z97M-D3HP GA-H97M-D3HP...
  • Page 2 Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
  • Page 3: Table Of Contents

    Table of Contents GA-Z97M-D3HP Motherboard Layout ................4 GA-H97M-D3HP Motherboard Layout ................5 GA-Z97M-D3HP/GA-H97M-D3HP Motherboard Block Diagram ........6 Chapter 1 Hardware Installation ..................7 Installation Precautions ..................7 Product Specifications ..................8 Installing the CPU ..................10 Installing the Memory ..................11 Installing an Expansion Card ................. 11 Back Panel Connectors ..................

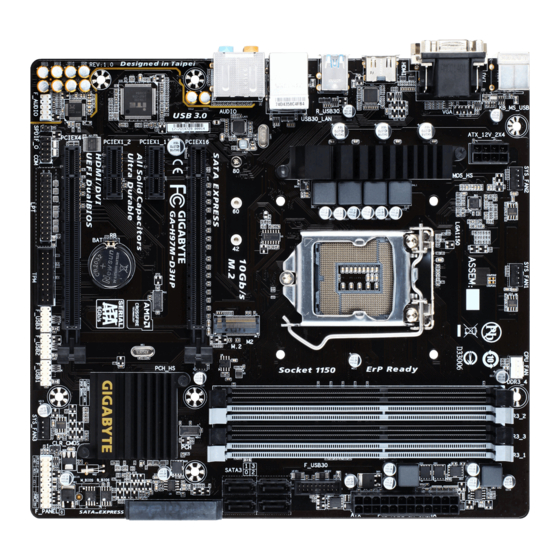

  • Page 4: Ga-Z97M-D3Hp Motherboard Layout

    GA-Z97M-D3HP Motherboard Layout KB_MS_USB SYS_FAN2 SYS_FAN1 CPU_FAN ATX_12V_2X4 LGA1150 Intel ® GbE LAN AUDIO PCIEX16 GA-Z97M-D3HP PCIEX1_1 CODEC Intel ® PCIEX1_2 ® Super I/O B_BIOS M_BIOS PCIEX4 CLR_CMOS SPDIF_O F_AUDIO F_USB3 F_USB1 SYS_FAN3 F_PANEL F_USB2 Box Contents 5 GA-Z97M-D3HP motherboard...
  • Page 5: Ga-H97M-D3Hp Motherboard Layout

    GA-H97M-D3HP Motherboard Layout KB_MS_USB SYS_FAN2 SYS_FAN1 CPU_FAN ATX_12V_2X4 LGA1150 Intel ® GbE LAN AUDIO PCIEX16 GA-H97M-D3HP PCIEX1_1 ® Super I/O Intel ® PCIEX1_2 B_BIOS CODEC M_BIOS PCIEX4 CLR_CMOS SPDIF_O F_AUDIO F_USB3 F_USB1 SYS_FAN3 F_PANEL F_USB2 Box Contents 5 GA-H97M-D3HP motherboard 5 Motherboard driver disk 5 Two SATA cables 5 User's Manual...
  • Page 6: Ga-Z97M-D3Hp/Ga-H97M-D3Hp Motherboard Block Diagram

    GA-Z97M-D3HP/GA-H97M-D3HP Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1150 HDMI DDR3 1600/1333 MHz PCIe CLK Dual Channel Memory (100 MHz) DVI-D PCI Express Bus D-Sub SATA Express Switch Dual BIOS 2 SATA 6Gb/s 4 SATA 6Gb/s...
  • Page 7: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...
  • Page 8: 1-2 Product Specifications

    Support for DDR3 1600/1333 MHz memory modules Š Support for non-ECC memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor: Š Graphics...
  • Page 9 Storage Interface Š Chipset: 1 x M.2 PCIe connector 1 x SATA Express connector 6 x SATA 6Gb/s connectors (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time.) Support for RAID 0, RAID 1, RAID 5, and RAID 10 Chipset: Š...
  • Page 10: Installing The Cpu

    Micro ATX Form Factor; 24.4cm x 22.5cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"...
  • Page 11: Installing The Memory

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
  • Page 12: Back Panel Connectors

    Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. D-Sub Port The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60Hz (the actual resolutions supported depend on the monitor being used).
  • Page 13 The audio jacks can be reconfigured to perform different functions via the audio software (supported functions may vary based on hardware specification). Only microphones still MUST be connected to the default Mic in jack. j Only for GA-Z97M-D3HP. k Only for GA-H97M-D3HP. - 13 -...
  • Page 14: Internal Connectors

    Internal Connectors ATX_12V_2X4 SPDIF_O F_USB30 CPU_FAN F_USB1/F_USB2/F_USB3 SYS_FAN1/2/3 SATA_EXPRESS SATA3 0/1/2/3/4/5 F_PANEL CLR_CMOS F_AUDIO Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 15 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 16 DEBUG DEBUG PORT PORT DEBUG DEBUG PORT PORT 5) SATA_EXPRESS (SATA Express Connector) The SATA Express connector supports a single SATA Express device. 6) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard.
  • Page 17 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
  • Page 18 10) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time.
  • Page 19 14) LPT (Parallel Port Header) The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional F_USB30 F_ U LPT port cable, please contact the local dealer. Pin No. Definition Pin No. Definition Pin No.
  • Page 20: Chapter 2 Bios Setup

    It helps first-time users to perform basic system setups more quickly and easily. The ST Mode (for the GA-Z97M-D3HP only) provides a fancy and user-friendly BIOS environment where users can easily point and click through various settings and make adjustments for optimum performance.
  • Page 21 Enables or disables CPU/PCIe Spread Spectrum. (Default: Auto) This item is configurable only when CPU Base Clock is set to Manual. Only for GA-Z97M-D3HP. (Note) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.
  • Page 22 CPU (the number of CPU ® cores may vary by CPU). Auto lets the BIOS automatically configure this setting. (Default: Auto) Only for GA-Z97M-D3HP. (Note) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.
  • Page 23 Allows you to set the memory frequency. Options may vary depending on the memory being used. (Default: Disabled) Only for GA-Z97M-D3HP. (Note 1) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.
  • Page 24 & Memory Boot Mode Provides memory detection and training methods. Lets the BIOS automatically configure this setting. (Default) Auto Enable Fast Boot Skip memory detection and training in some specific criteria for faster memory boot. Disable Fast Boot Detect and train memory at every single boot. &...
  • Page 25 & CPU/System Temperature Warning Sets the warning threshold for CPU/system temperature. When temperature exceeds the threshold, BIOS will emit warning sound. Options are: Disabled (default), 60 C/140 F, 70 C/158 F, 80 C/176 F, 90 C/194 & CPU/System Fan Fail Warning Allows the system to emit warning sound if the fan is not connected or fails.
  • Page 26: System Information

    ` Miscellaneous Settings & PCIe Slot Configuration Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation mode is subject to the hardware specification of each slot. Auto lets the BIOS automatically configure this setting.
  • Page 27: 2-4 Bios Features

    System program. (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed.
  • Page 28 (Note) Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Enabled) ® Only for GA-Z97M-D3HP. (Note) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.
  • Page 29 & Windows 8 Features Allows you to select the operating system to be installed. (Default: Other OS) & CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. Enables UEFI CSM. (Default) Always Disables UEFI CSM and supports UEFI BIOS boot process only.
  • Page 30: Peripherals

    & User Password Allows you to configure a user password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the password again and press <Enter>. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup.
  • Page 31 Lets the BIOS automatically configure this setting depending on the expansion card Auto being installed. (Default) PCIEX4 operates at x1 mode. PCIEX4 operates at x4 mode. ` SATA Configuration & Integrated SATA Controller Enables or disables the integrated SATA controllers. (Default: Enabled) Only for GA-Z97M-D3HP. - 31 -...
  • Page 32 & SATA Mode Selection Enables or disables RAID for the SATA controllers integrated in the Chipset or configures the SATA controllers to AHCI mode. Configures the SATA controller to IDE mode. IDE Enables RAID for the SATA controller. RAID Configures the SATA controllers to AHCI mode. Advanced Host Controller Interface AHCI (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug.
  • Page 33: Power Management

    Power Management & Power Loading Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically configure this setting.
  • Page 34 & Power On By Keyboard Allows the system to be turned on by a PS/2 keyboard wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. Disables this function. (Default) Disabled Set a password with 1~5 characters to turn on the system. Password Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system.
  • Page 35: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...
  • Page 36: Chapter 3 Appendix

    Chapter 3 Appendix 3-1 Configuring SATA Hard Drive(s) Before you begin, please prepare the following items: • At least two SATA hard drives (to ensure optimal performance, it is recommended that you use two hard drives with identical model and capacity). If you do not want to create RAID, you may prepare only one hard drive. •...
  • Page 37 C-2. Configuring Legacy RAID ROM Enter the Intel legacy RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the ® installation of Windows operating system for a non-RAID configuration. Steps: 1. After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-I>...
  • Page 38: Drivers Installation

    You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. For more software information, please visit GIGABYTE's website. - 38 -...
  • Page 39: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 40 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 41 - 41 -...
  • Page 42 - 42 -...
  • Page 43 - 43 -...
  • Page 44: Contact Us

    Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE eSupport •...
